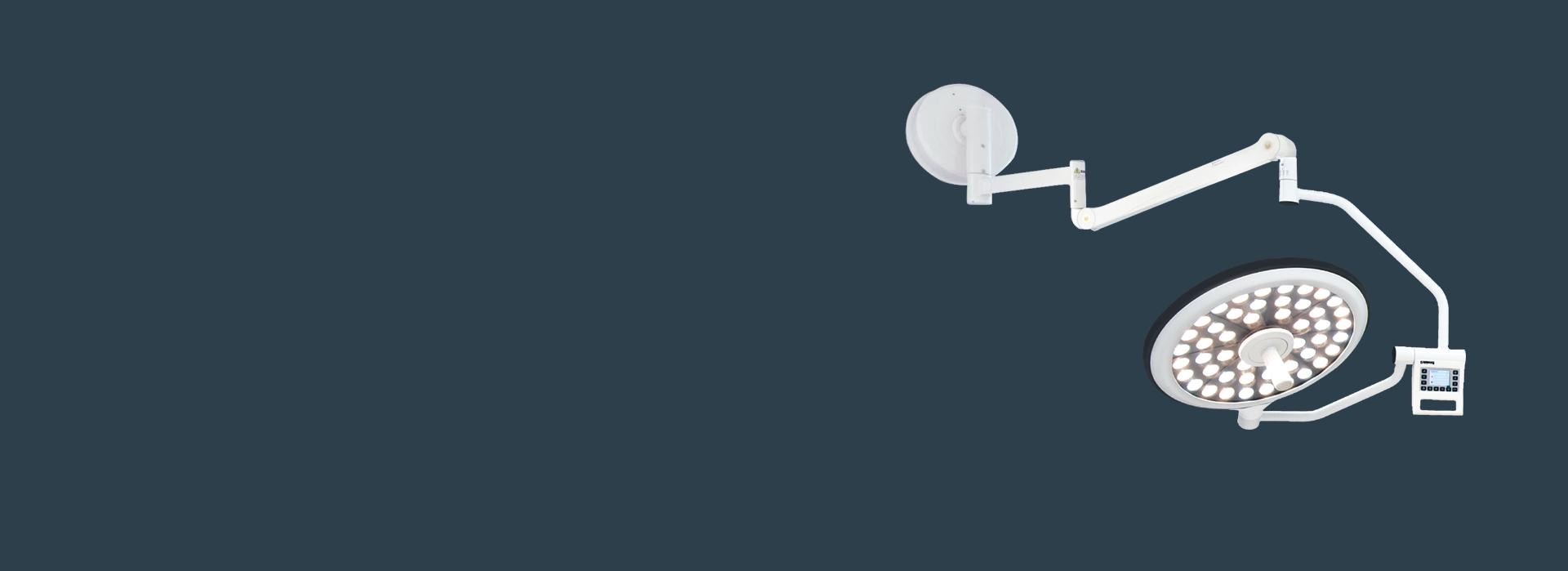

Wall Mounted Surgical Lights

Wall Mounted Surgical Lights

Simple and clear system operation interface, simple and easy to understand
High efficient and durable OSRAM LED light source without thermal radiation
Flexible design with PWM stepless dimming and adjustable color temperature
Switch lighting mode with one click: standard mode, endoscope mode, low light mode
Use PWMA optical lens, overall aluminum substrate heat dissipation, with a unique light concentrating technology, high light efficiency and low power consumption

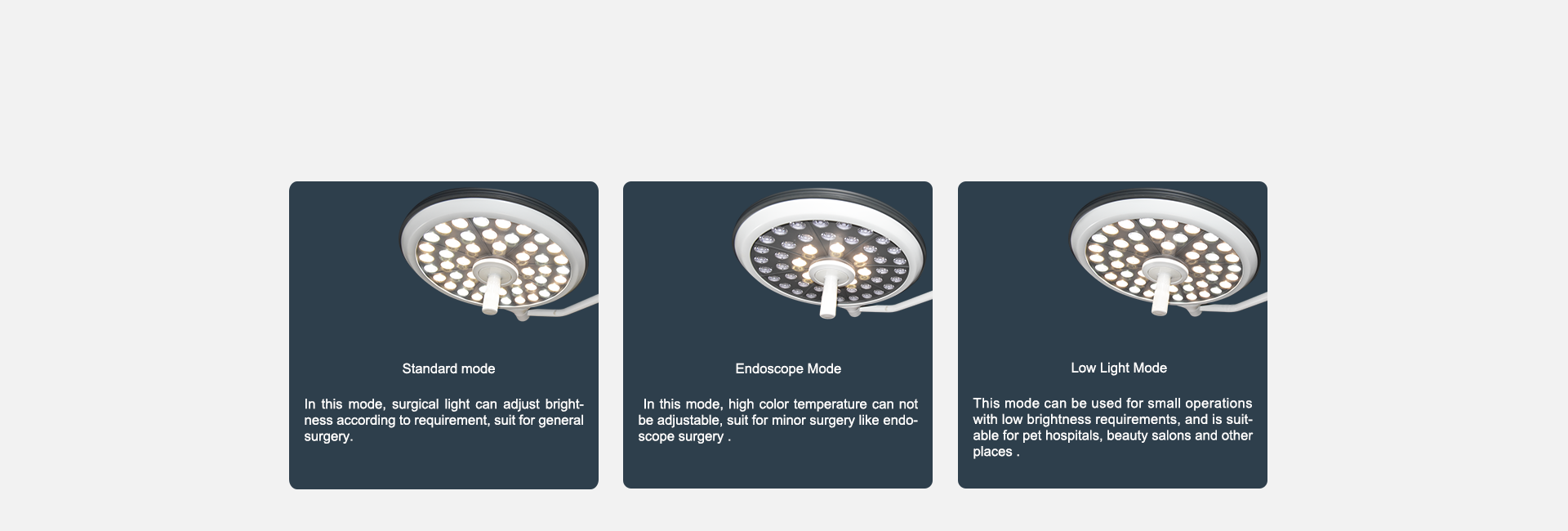

Three lighting modes

Three lighting modes

Three Lighting Mode suit for various operation with different lighting requirement
Uniform Adjustable Light Spot

Uniform Adjustable Light Spot

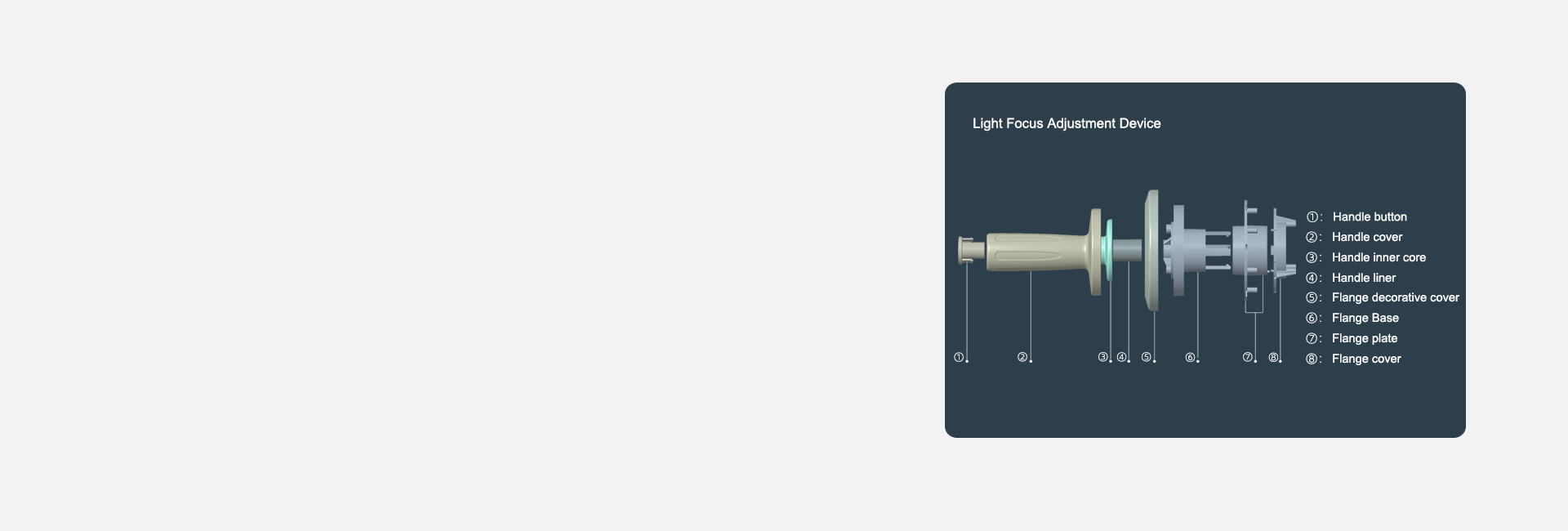

Multi layer spot overlapping technology, central focusing device, clear operation field

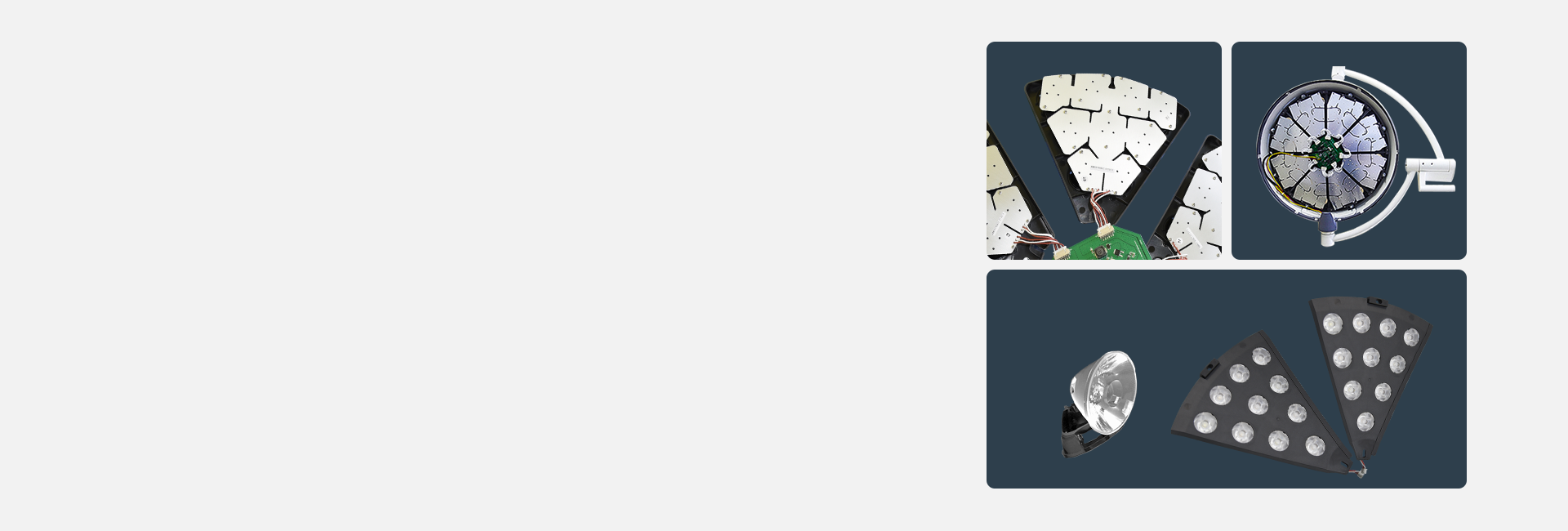

Excellent light source module design

Excellent light source module design

Lamphead with 48pcs LED light source, which are divided into multiple light source groups
Excellent lighting collecting technology (lens focusing agnle is reasonable), Excellent light efficiency
Each group light source is controlled by CPU independently, if any group light source is broken, the light can still use
Internal Light Source Structure: Engineering Plastic ABS + Aluminum Board, good heat dissipation and lighter weight

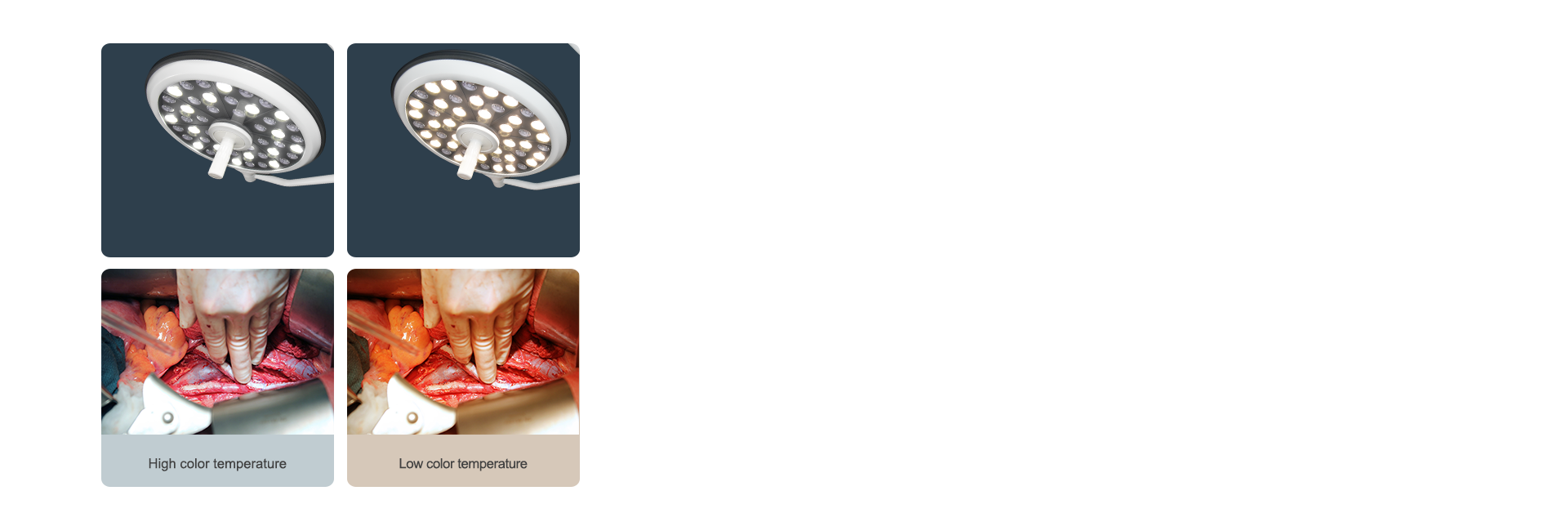

Color Temperature and Brightness Easy Adjustment

Color Temperature and Brightness Easy Adjustment

Color rendering index ≥ 85, near to real color as soon as possible
Stepless PWM dimming to satisfy brightness requirement for different surgery
Reasonable quantity and distribution design of high low color temperature light source, which achieve 4000-5000K color temperature adjustment

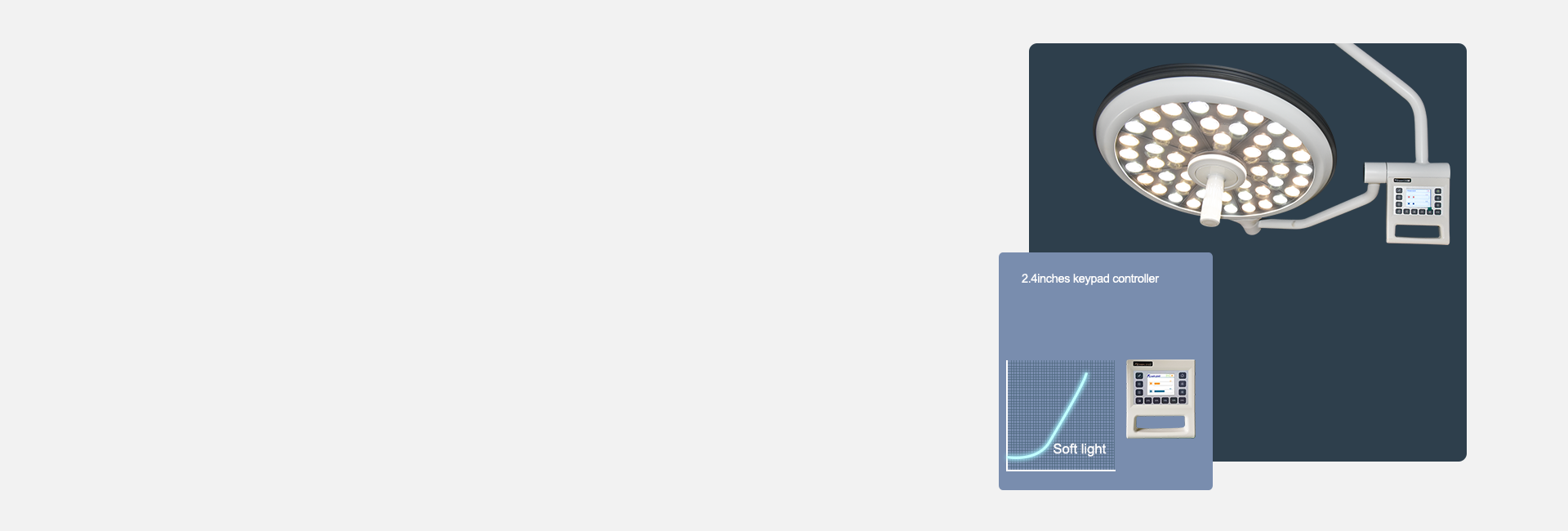

Easy Practical Operation

Easy Practical Operation

Soft Light with Eye Protection
Controllers for your optional

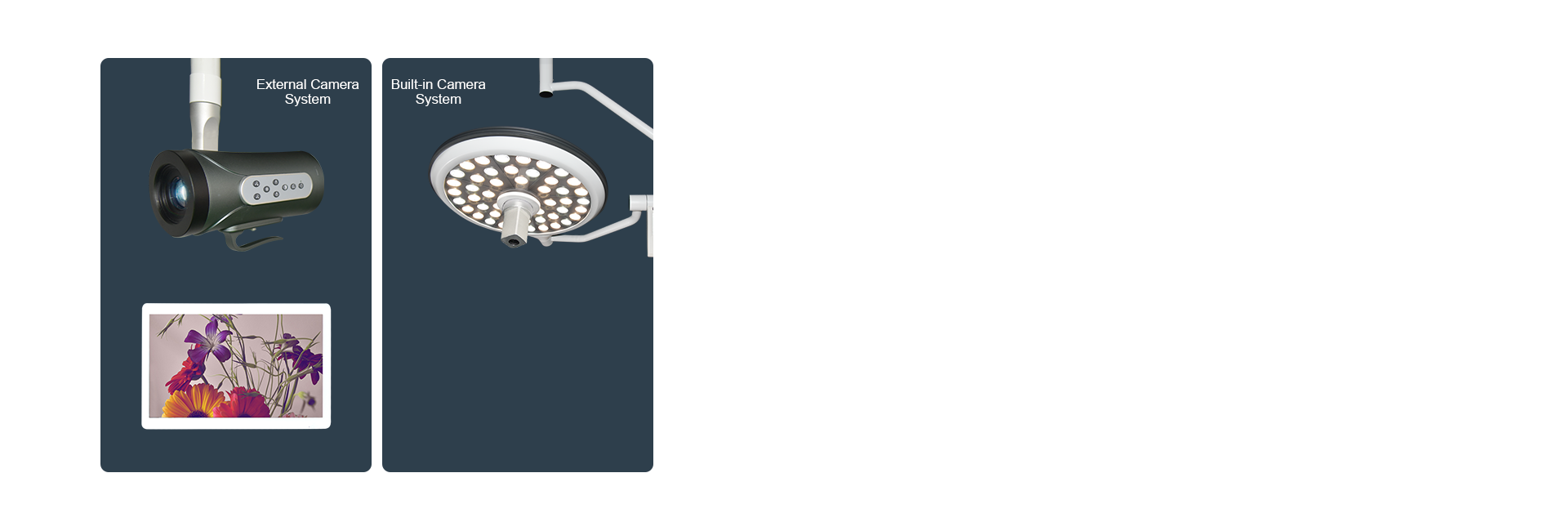

Optional HD Camera System

Optional HD Camera System

Surgical Light can be equipped with built in camera or external camera system
PWM technology, perfectly solving stroboscopic problem of the camera system
Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet and operating process can be recorded at the same time
Stable Structure, Easy Install and Usage

Stable Structure, Easy Install and Usage

Adjusted with removable sterilizer handle with bear 134℃
Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust
Product parameters
Brand Mplent
Manufacturer Hunan Mplent Optoelectronics Technology CO., Ltd
Type Wall Mounted Surgical Lights
Supply voltage AC110-240V 50/60HZ
Spot diameter 120-260mm
ILLumination 40000-120000Lx
Color temperature 4000-5000k(adjustable)
Color rendering index ≥85
ILLumination depth ≥800mm
Brightness Adjustment 1% - 100% (stepless dimming)
LED Lifespan ≥50000h
LED Quantity 48
LED lamp brand OSRAM
Maximum LED Power Rated 3W, actual use ≤ 1W
