ZW-700/500D

ZW-700/500D

High efficient and durable OSRAM LED light source without thermal radiation
Easy adjustment for color temperature and brightness, light spot uniform ajustment
High efficient optics and unique light source device design, different controller can be optional
Optional fuction: External / Built-in camera system, brightness gesture sensor, shadow compensation, handheld wireless remote controller and other new optional function

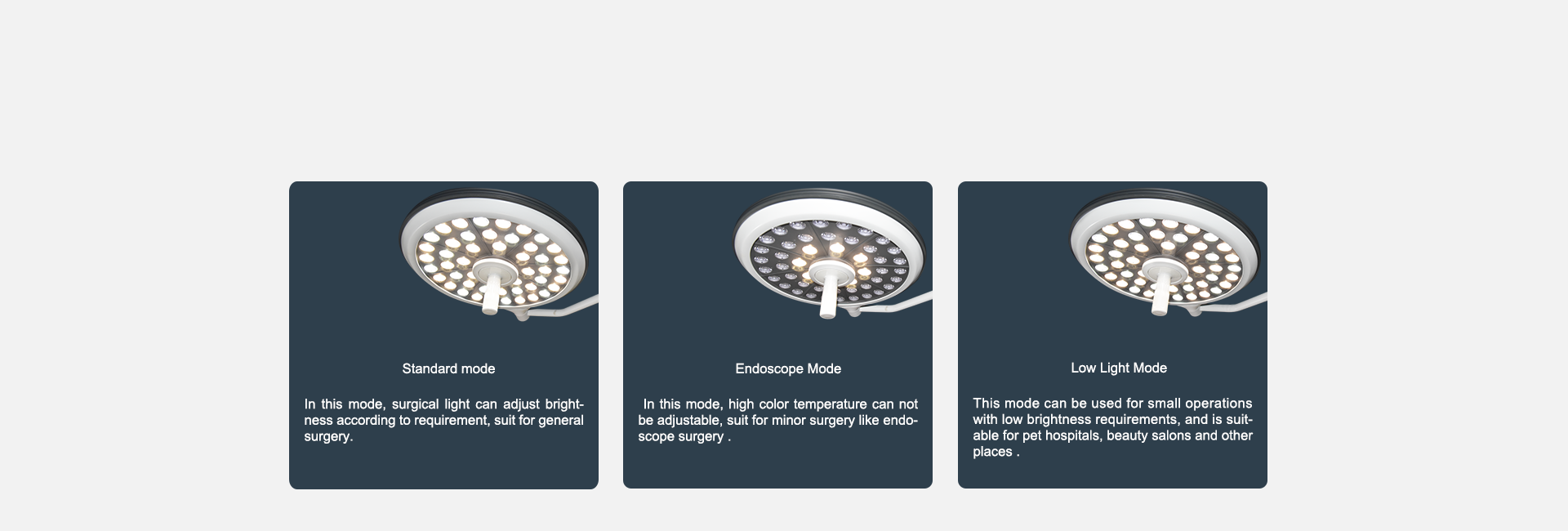

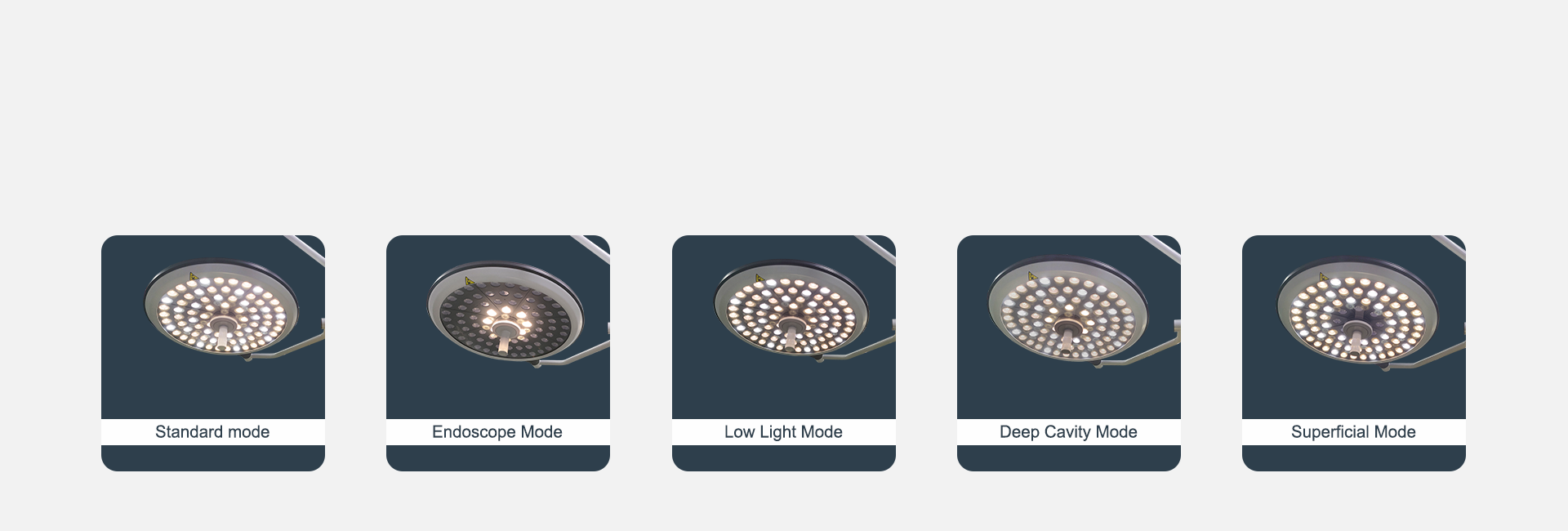

Three lighting modes

Three lighting modes

Three Lighting Mode suit for various operation with different lighting requirement

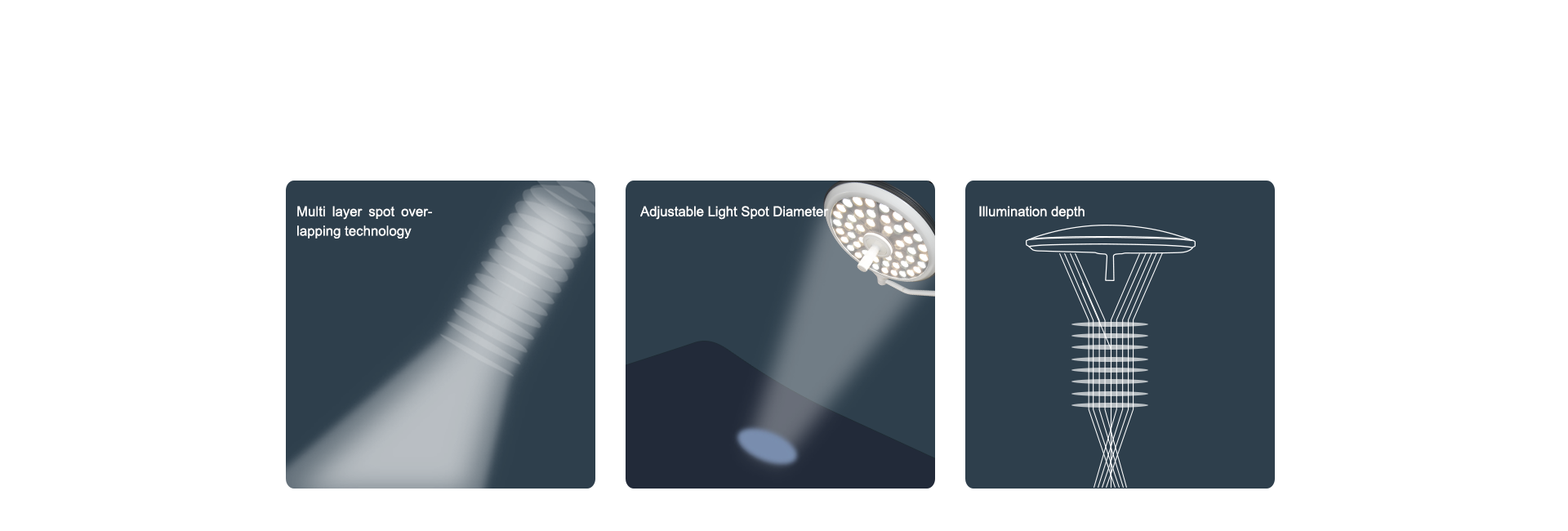

Uniform Adjustable Light Spot

Uniform Adjustable Light Spot

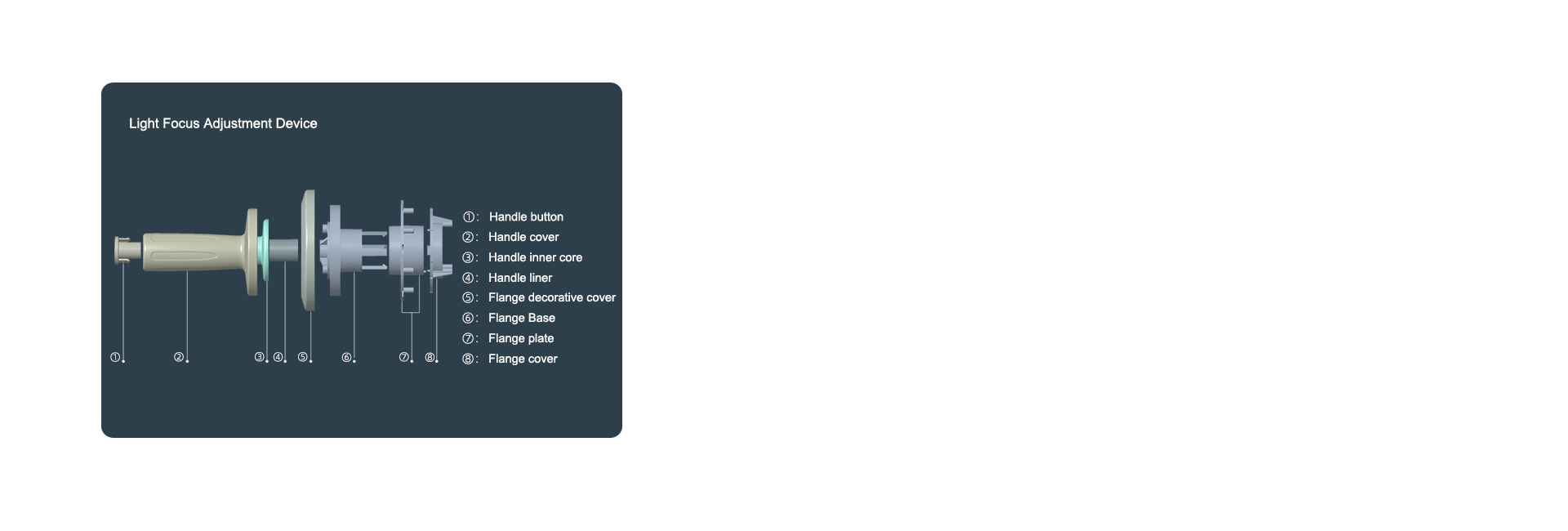

Multi layer spot overlapping technology, central focusing device, clear operation field
Excellent light source module design

Excellent light source module design

Lamphead with 80/48pcs LED light source, which are divided into multiple light source groups
Excellent lighting collecting technology (lens focusing agnle is reasonable), Excellent light efficiency
Each group light source is controlled by CPU independently, if any group light source is broken, the light can still use
Internal Light Source Structure: Engineering Plastic ABS + Aluminum Board, good heat dissipation and lighter weight

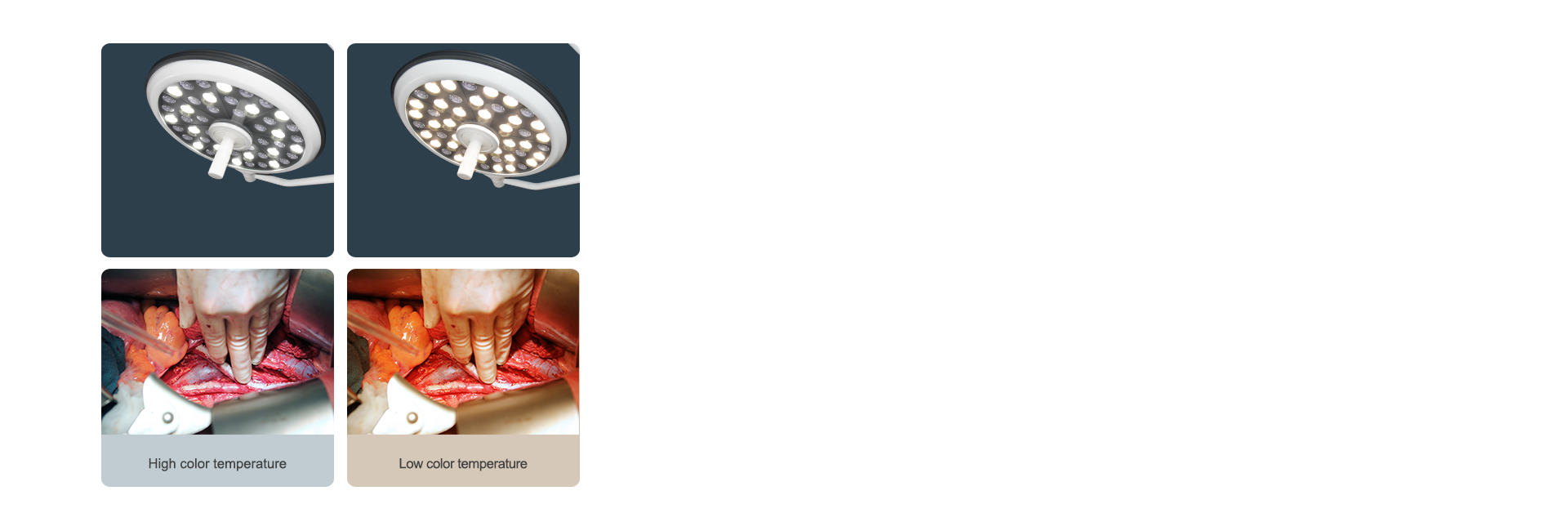

Color Temperature and Brightness Easy Adjustment

Color Temperature and Brightness Easy Adjustment

Color rendering index ≥ 90, near to real color as soon as possible
Stepless PWM dimming to satisfy brightness requirement for different surgery
Reasonable quantity and distribution design of high low color temperature light source, which achieve 4000-5000K color temperature adjustment

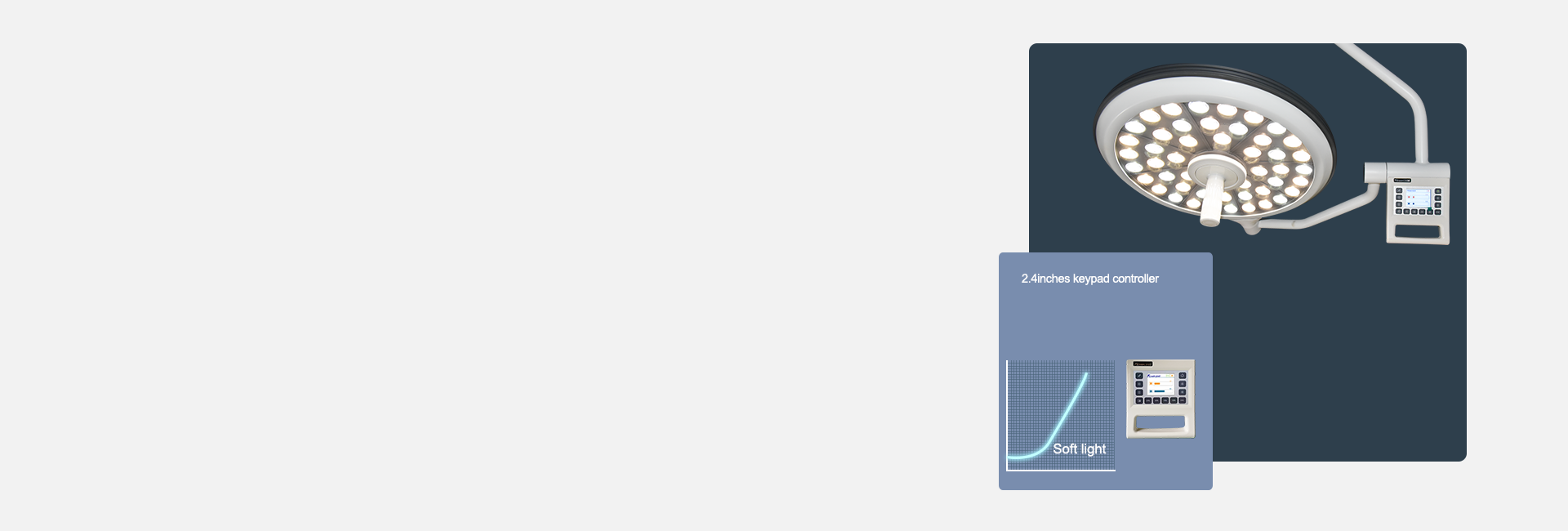

Easy Practical Operation

Easy Practical Operation

Soft Light with Eye Protection
Controllers for your optional
2.4inches push button controller with easy usage

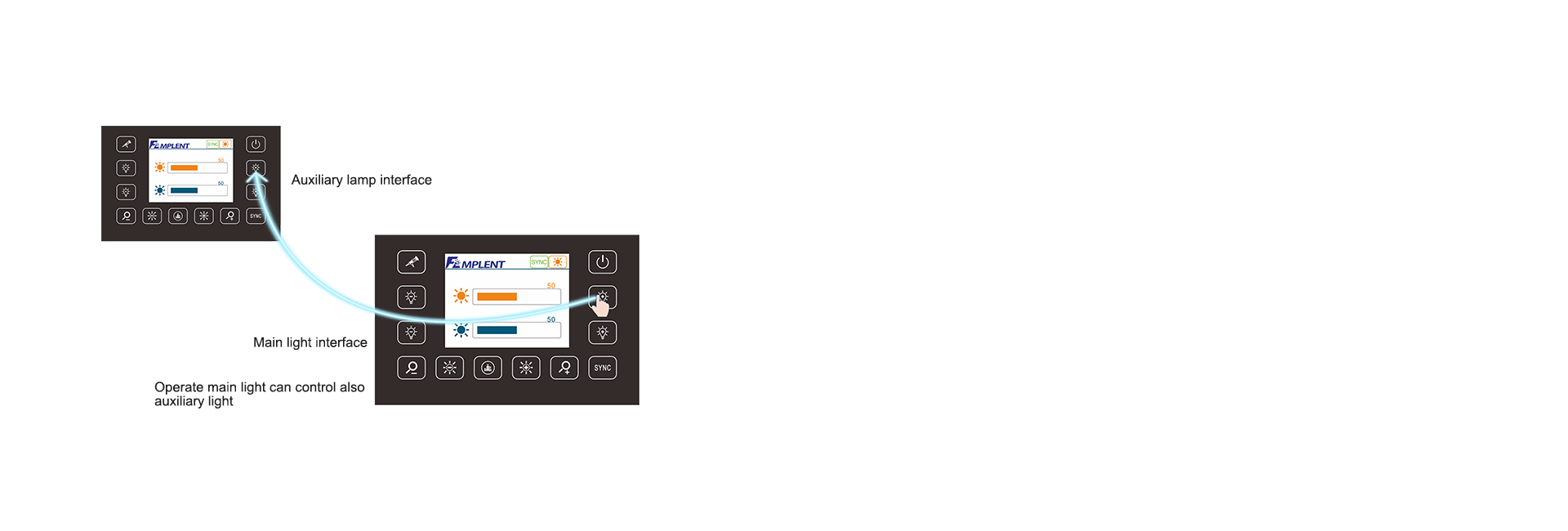

Mutual Control for Both Lamp Head

Mutual Control for Both Lamp Head

Both lamphead controller can control mutually each other`s color temperature, endoscope, camera and others ( knob dimmer have no this function)

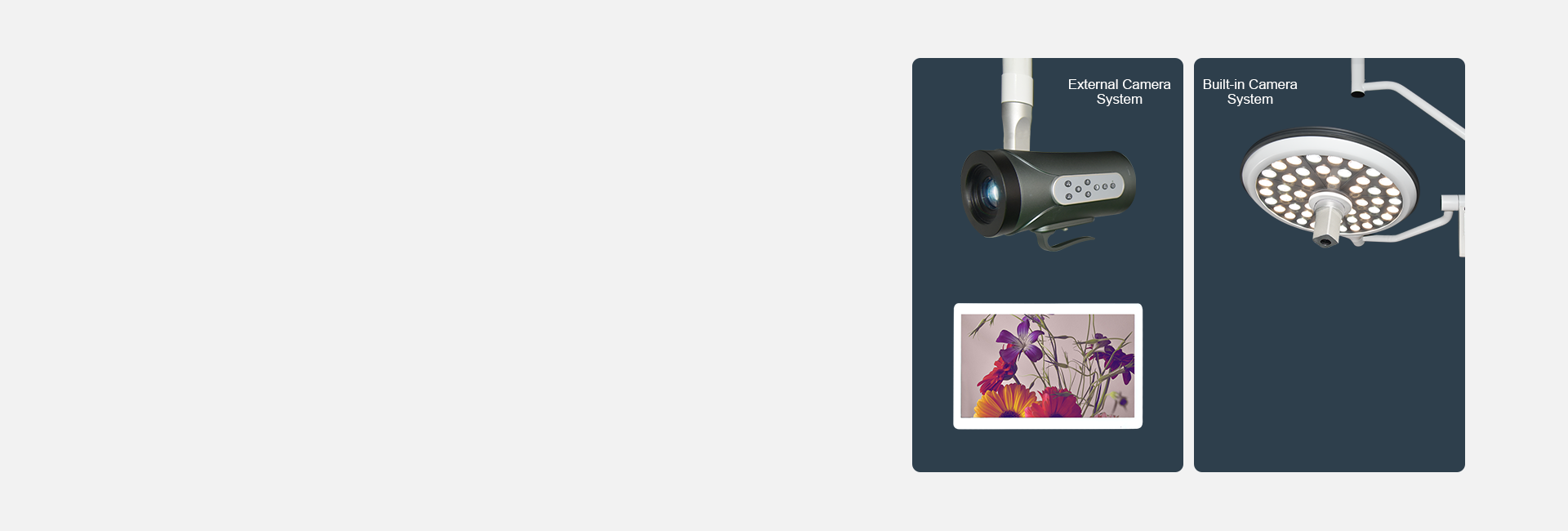

Optional HD Camera System

Optional HD Camera System

Surgical Light can be equipped with built in camera or external camera system
PWM technology, perfectly solving stroboscopic problem of the camera system
Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet and operating process can be recorded at the same time
Optional Gesture Sensing

Optional Gesture Sensing

Sensor to recognize gesture, achieve non-contact brightness adjustment, more convenient and faster
Optional Shadow Compensation

Optional Shadow Compensation

Humanized intelligent shadow compensation technology
When surgeon`s head is near to the light source, other light source will automatically compensated brightness to ensure the ideal light beam on the operating field
Optional Handheld wireless remote controller

Optional Handheld wireless remote controller

Using LoRa modulation technology, encryption wireless transmission, safe and reliable
Transimission distance is not less than 20meters, it can realize remote control with surgical light
Stable Structure, Easy Install and Usage

Stable Structure, Easy Install and Usage

Adjusted with removable sterilizer handle with bear 134℃
Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust
Product parameters
Brand Mplent
Manufacturer Hunan Mplent Optoelectronics Technology CO., Ltd
Type ZW-700/500D
Supply voltage AC110-240V 50/60HZ
Spot diameter 120-300mm(adjustable)
ILLumination 700 lamp head 40000-160000Lx           500 lamp head 40000-120000Lx
Color temperature 4000-5000k(adjustable)
Color rendering index ≥90% (adjustable)
ILLumination depth ≥1000mm
Brightness Adjustment 1% - 100% (stepless dimming)
LED Lifespan ≥50000h
LED Quantity 700 lamp head ,80        500 lamp head ,48
LED lamp brand OSRAM
Maximum LED Power Rated 3W, actual use ≤ 1W
