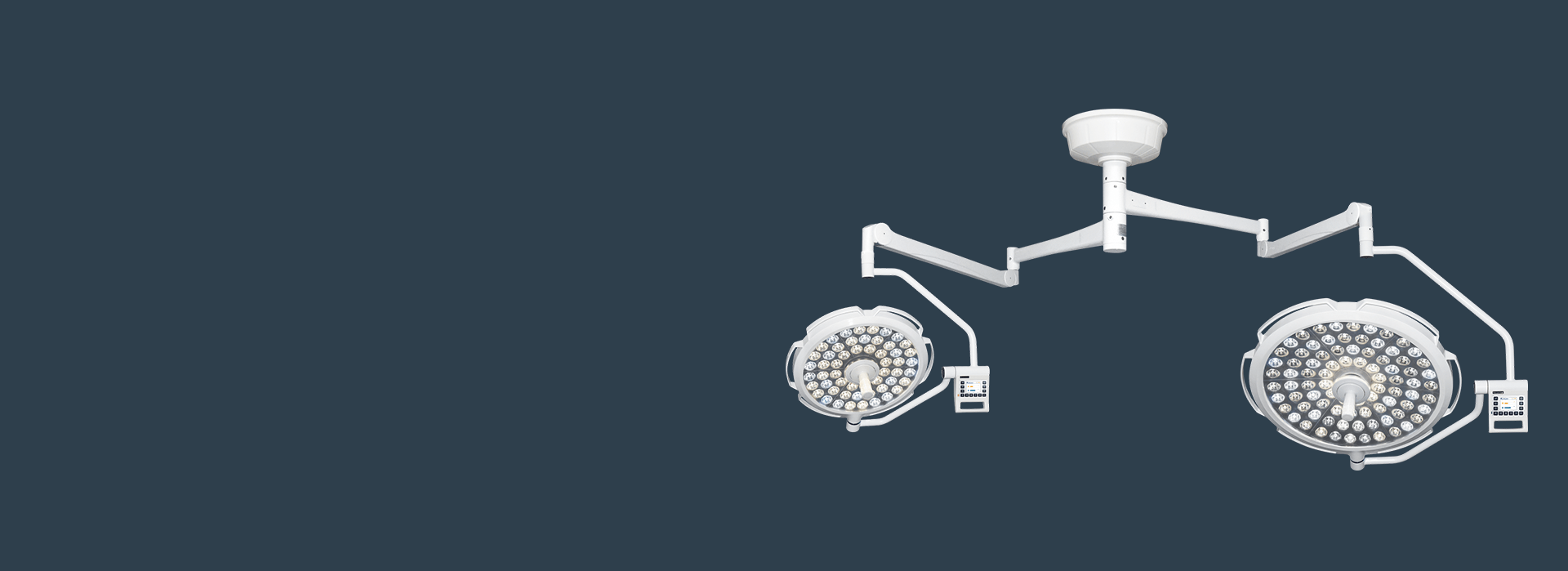

ZW-G700/500

ZW-G700/500

New optical lens with no dazzling, excellent light efficiency
New Function: brightness gesture sensor, wireless remote control
Easy adjustment for color temperature and brightness, light spot uniform ajustment
Full HD built-in/external camera system, Adjustable spot diameter and camera scene
Easy to use color temperature and brightness adjustment, uniform adjustable spot control
High efficient and durable OSRAM LED light source with average lifespan over 50,000 hours

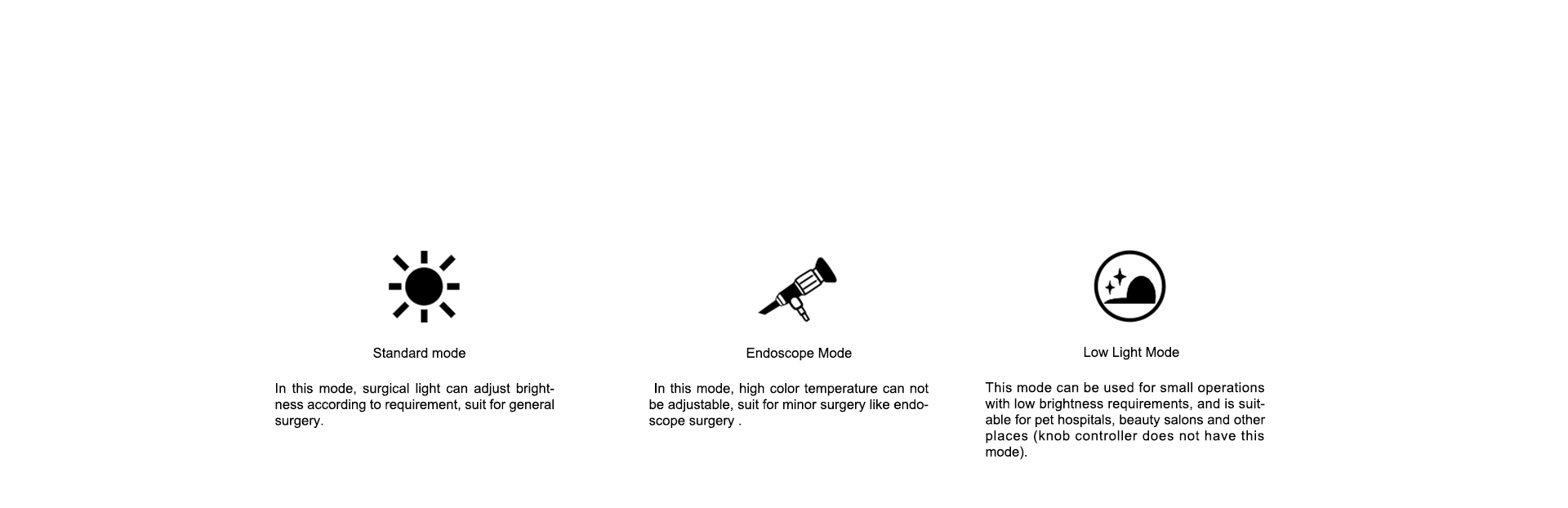

Three lighting modes

Three lighting modes

Three Lighting Mode suit for various operation with different lighting requirement
Uniform spot control

Uniform spot control

Endoscope lighting mode and light depth over 1000mm

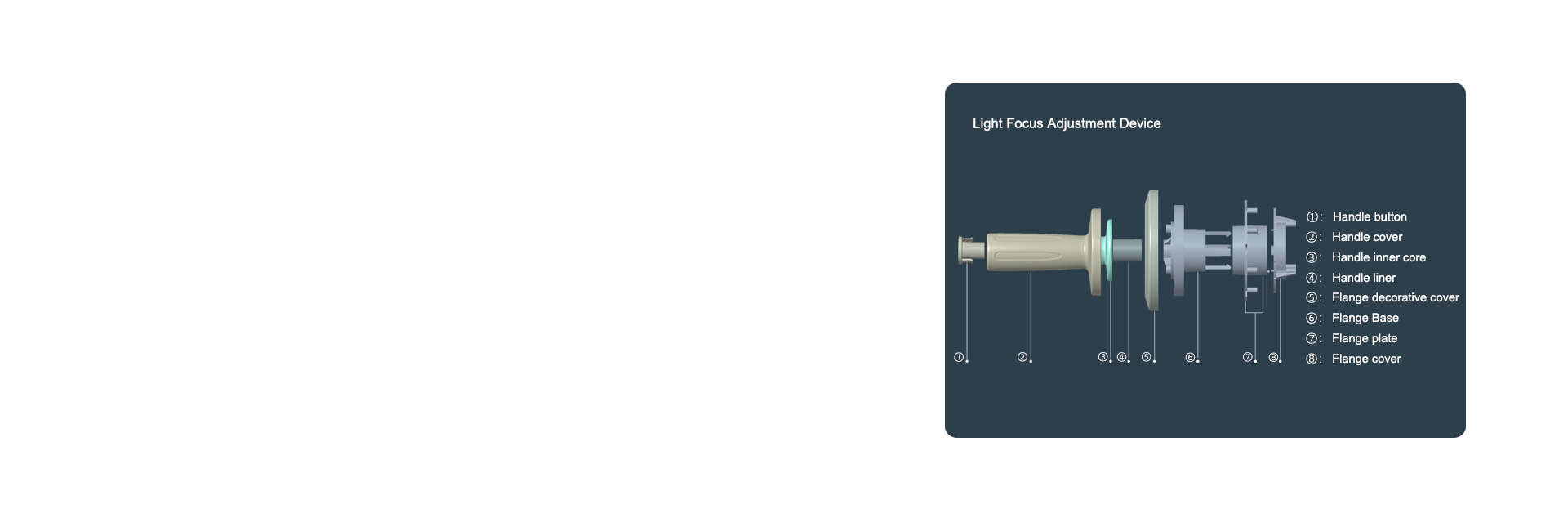

Central focus adjustment device to achieve uniform adjustment of 180-280 mm light spot
Color Temperature Easy Adjustment

Color Temperature Easy Adjustment

Color rendering index ≥ 90, near to real color as soon as possible
Stepless PWM dimming to satisfy brightness requirement for different surgery
High color temperature can improve the visual resolution of tissue, and low color temperature can relieve the visual fatigue caused by long-term surgery

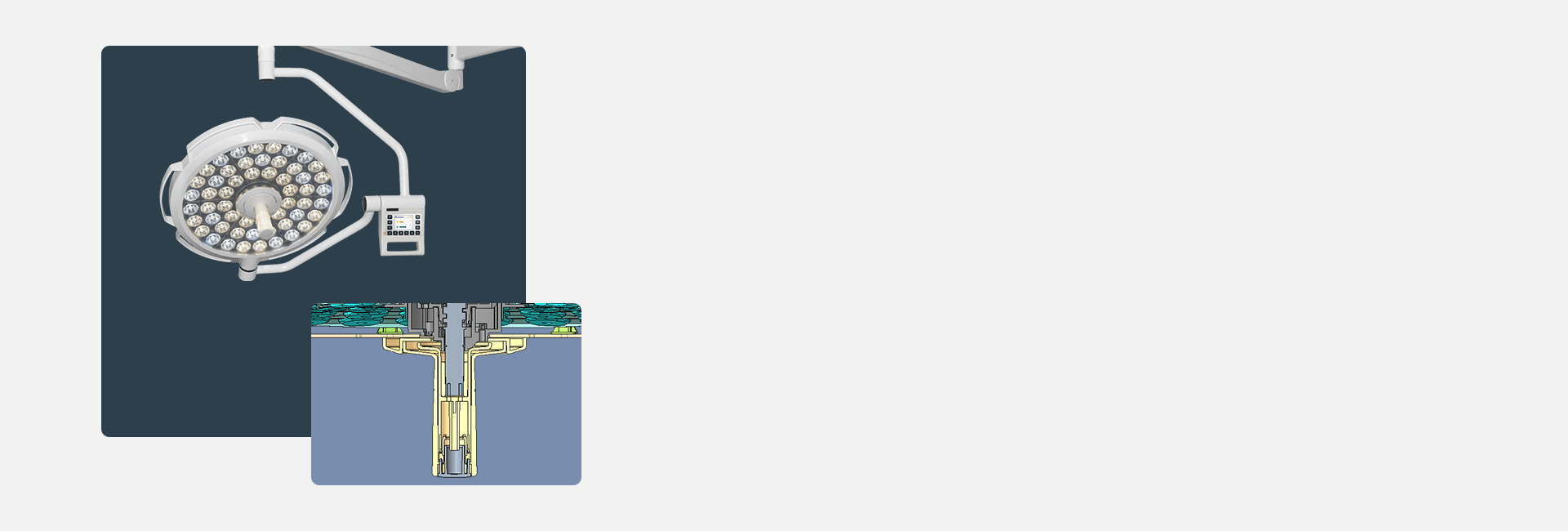

Adjustable light field by central handle

Adjustable light field by central handle

Diversified control, the handle can control light field size, convenient and quick

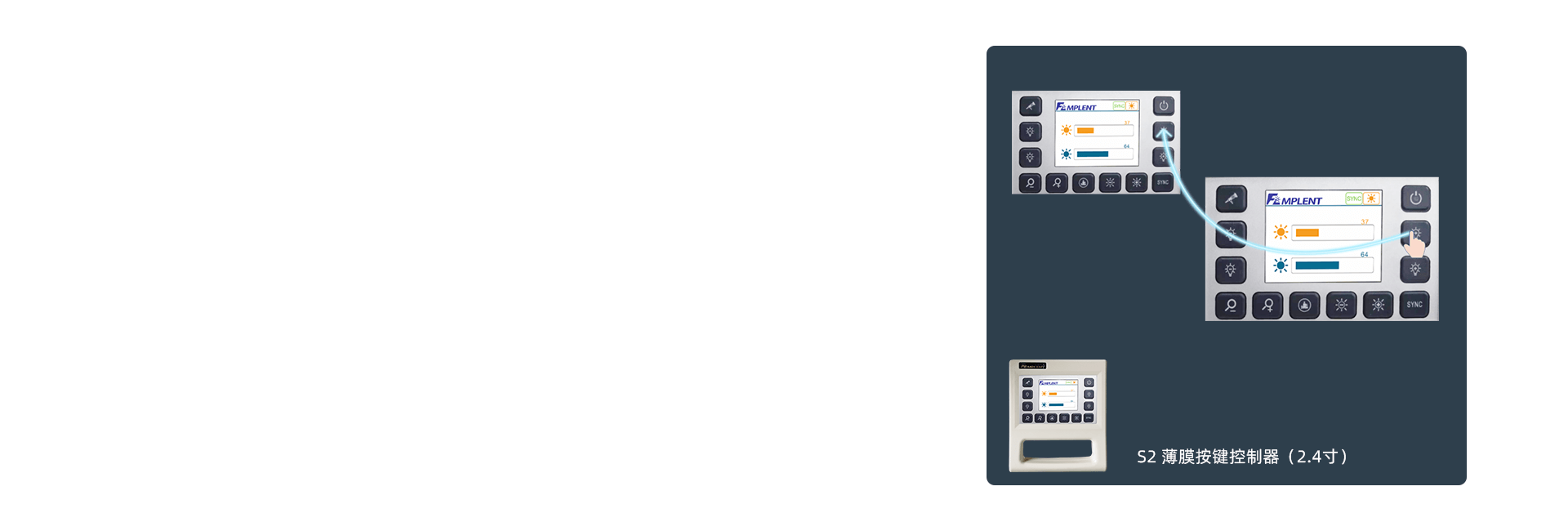

Synchronous function

Synchronous function

Operate any controller, and the main and auxiliary lights change at the same time

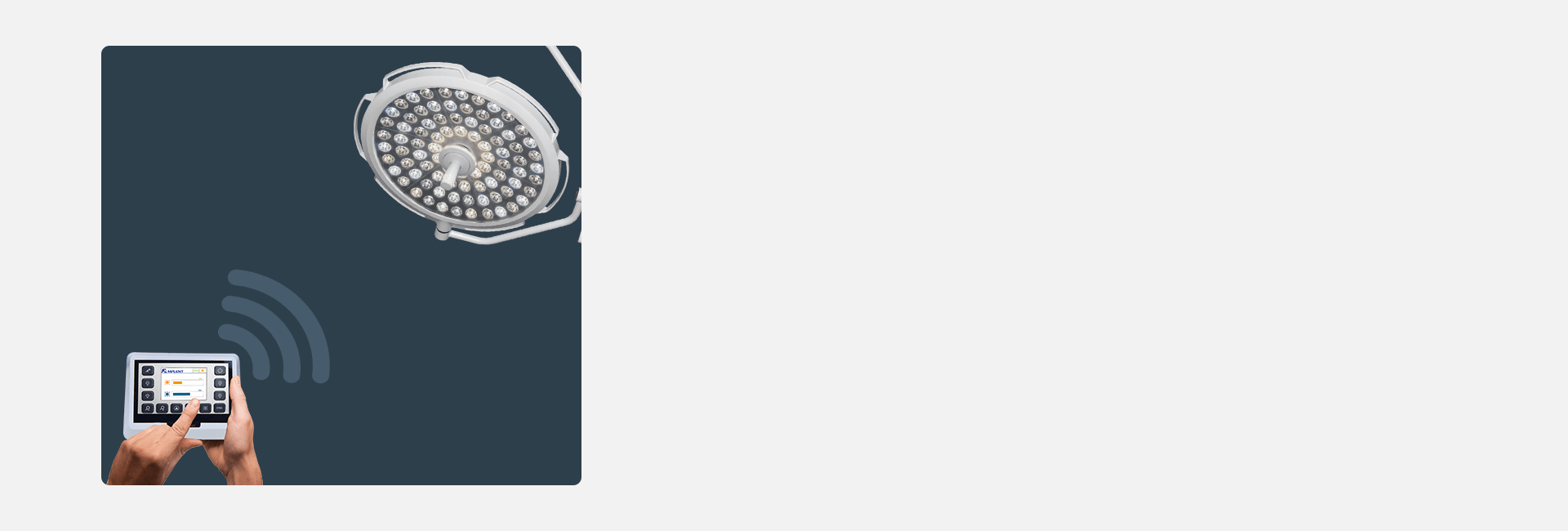

Optional Handheld Wireless Remote Controller

Optional Handheld Wireless Remote Controller

Using LoRa modulation technology, encryption wireless transmission, safe and reliable
Transimission distance is not less than 20meters, it can realize remote control with surgical light

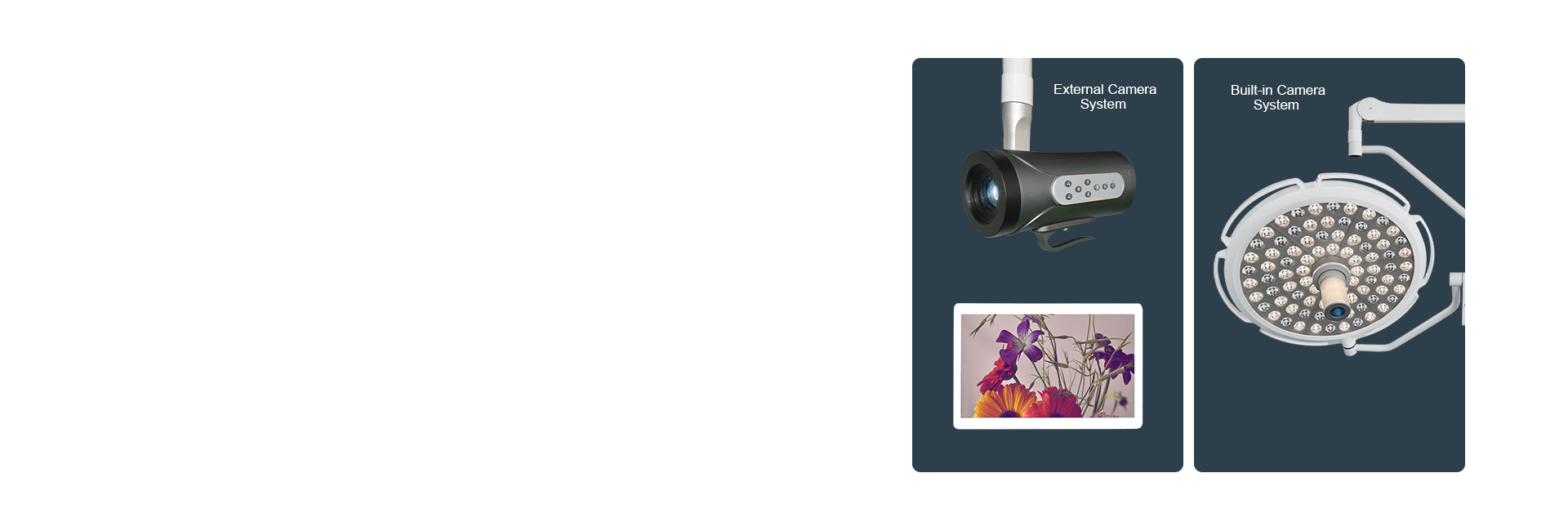

Optional Full HD Built-in Camera / External Camera System

Optional Full HD Built-in Camera / External Camera System

PWM technology, perfectly solving stroboscopic problem of the camera system
Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet

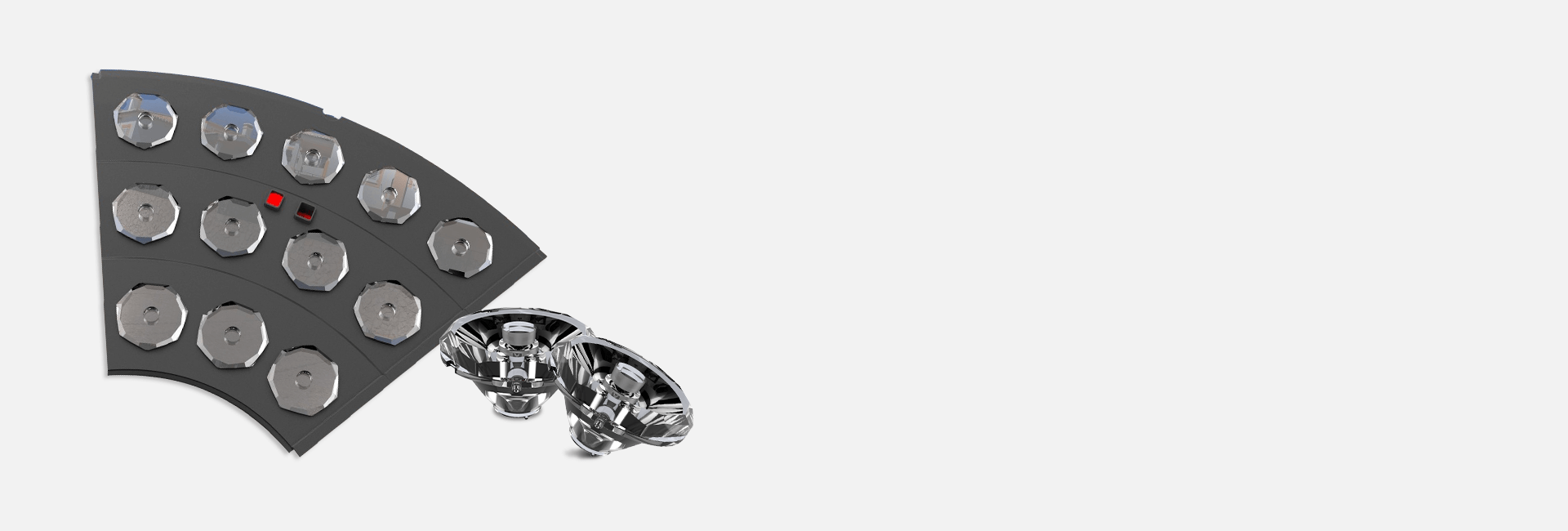

New Optical Diamond Lens

New Optical Diamond Lens

PMMA optical lens with unique lighting collecting technology, which can improve the light efficiency, reduce power consumption and reduce glare
Stable Structure, Easy Install and Usage

Stable Structure, Easy Install and Usage

Adjusted with removable sterilizer handle with bear 134℃
Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust

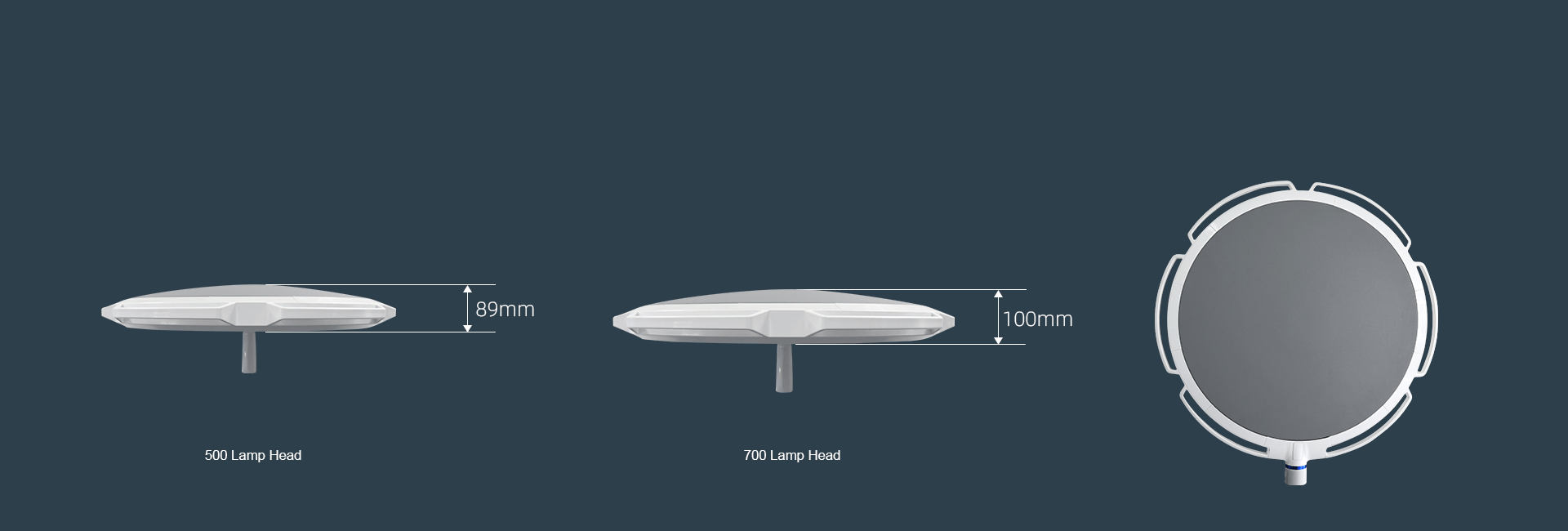

Untra Thin Lamp Head Design

Untra Thin Lamp Head Design

Ultra Thin Streamlined Lamp Head with 6-position circle handle, more easy operation
ZW-G700 Single Dome LED Surgical Light Parameter
Brand Mplent
Manufacturer Hunan Mplent Optoelectronics Technology CO., Ltd
Type ZW-G700/500
Supply voltage AC110-240V 50/60HZ
Spot diameter 180-280mm(adjustable)
luminance 700 Lamp Head   40000-160000Lx           500 Lamp Head   40000-120000Lx
Color temperature 4000-5000k(adjustable)
Color rendering index ≥90
ILLumination depth 700 Lamp Head  ≥950mm       500 Lamp Head  ≥1100mm
Brightness Adjustment 100 steps
LED Lifespan ≥50000h
LED Quantity 700 lamp head: 84pcs         500mm lamp head: 54pcs
LED lamp brand OSRAM
Maximum LED Power Rated 3W, actual use ≤ 1W
