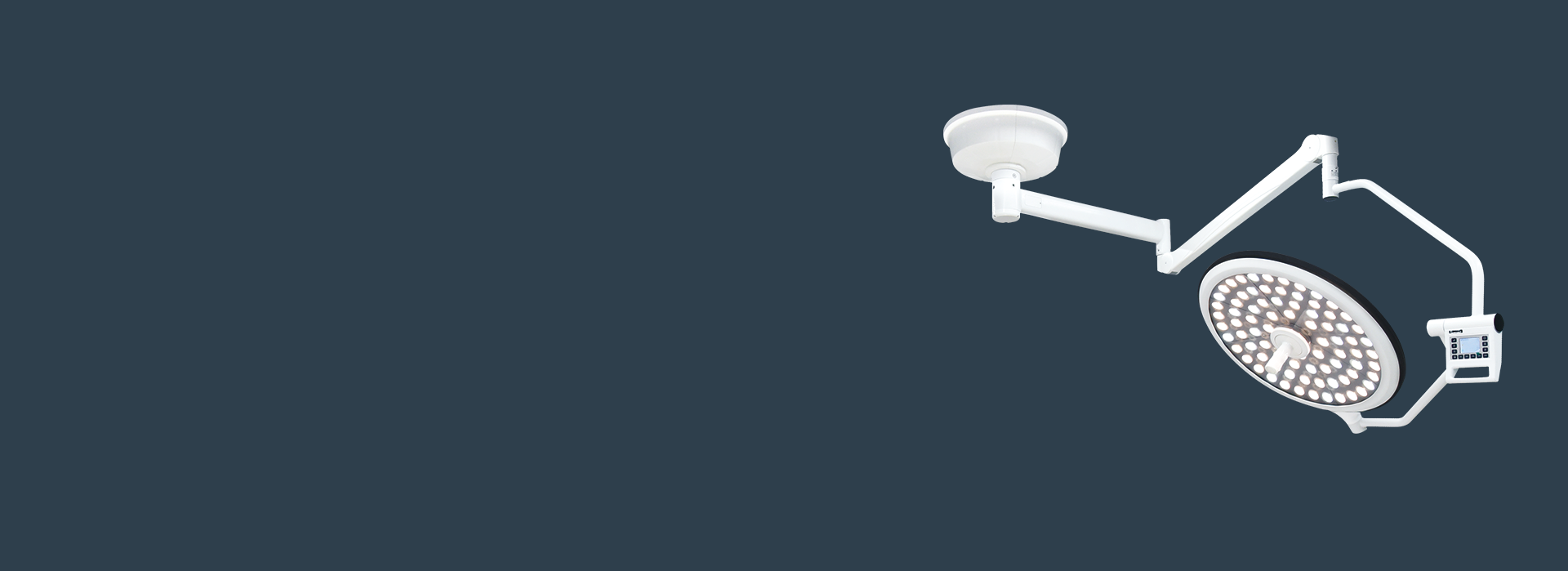

ZW-700D

Home Products Surgical light LED Surgical Light ZW-700D

Simple and clear system operation interface, simple and easy to understand
High efficient and durable OSRAM LED light source without thermal radiation
Flexible design with PWM stepless dimming and adjustable color temperature
Switch lighting mode with one click: standard mode, endoscope mode, low light mode
Use PWMA optical lens, overall aluminum substrate heat dissipation, with a unique light concentrating technology, high light efficiency and low power consumption

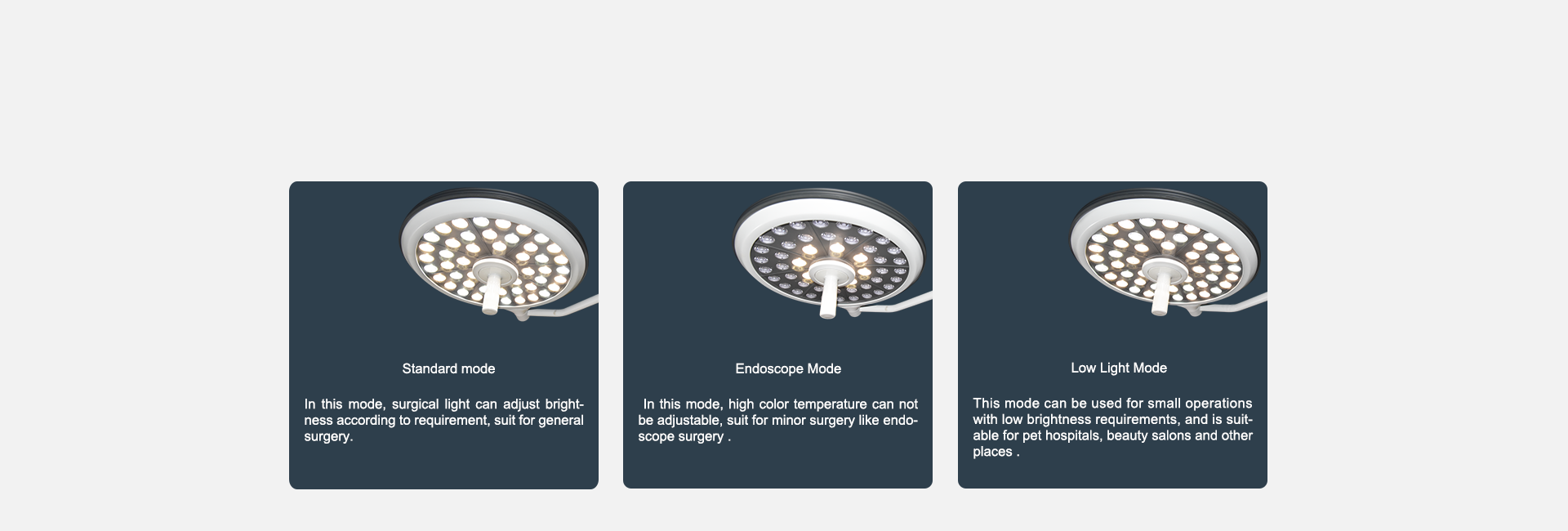

Three lighting modes

Three Lighting Mode suit for various operation with different lighting requirement

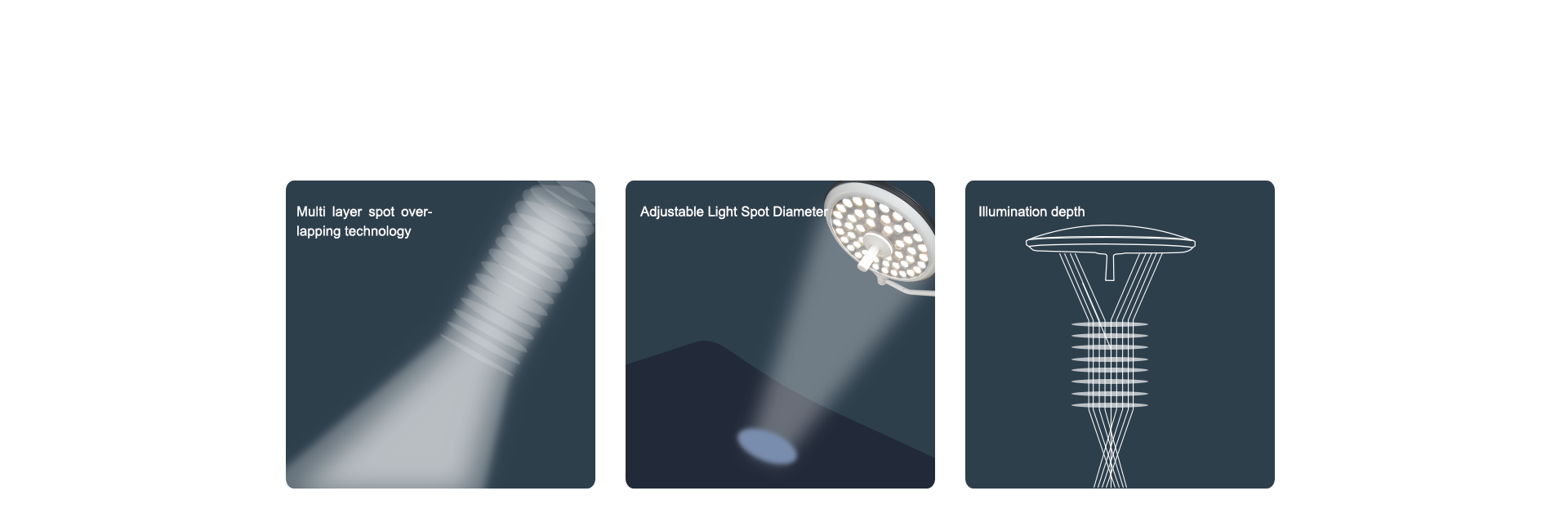

Uniform Adjustable Light Spot

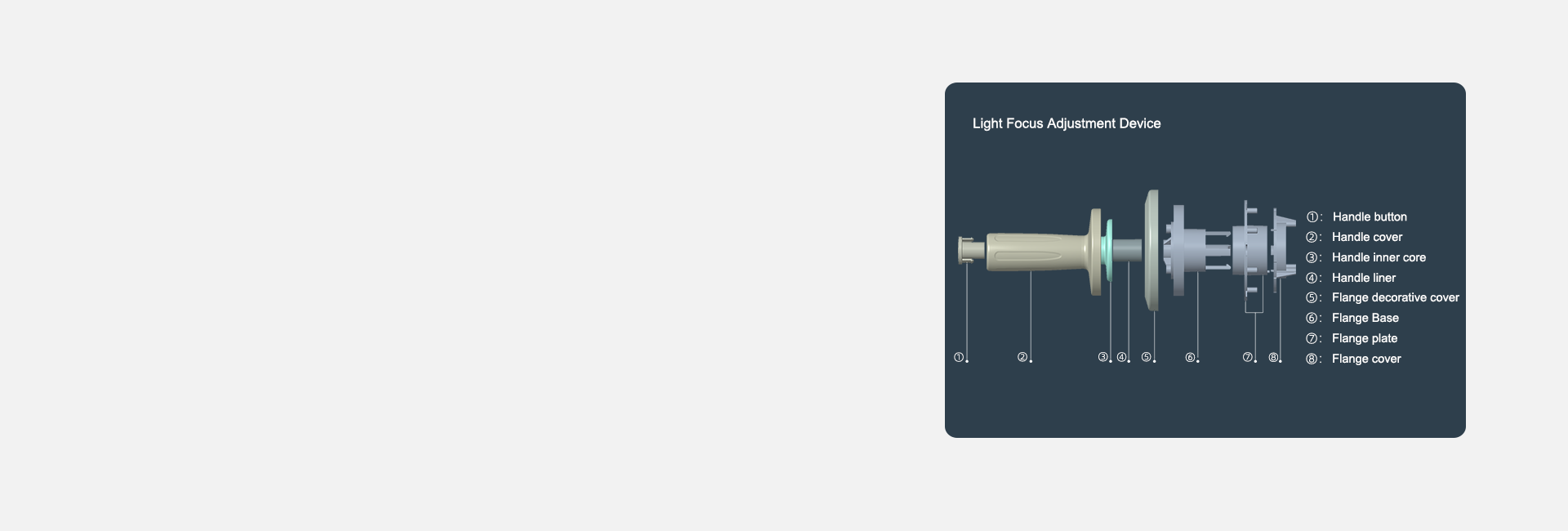

Multi layer spot overlapping technology, central focusing device, clear operation field

Excellent light source module design

Lamphead with 80pcs LED light source, which are divided into multiple light source groups
Excellent lighting collecting technology (lens focusing agnle is reasonable), Excellent light efficiency
Each group light source is controlled by CPU independently, if any group light source is broken, the light can still use
Internal Light Source Structure: Engineering Plastic ABS + Aluminum Board, good heat dissipation and lighter weight

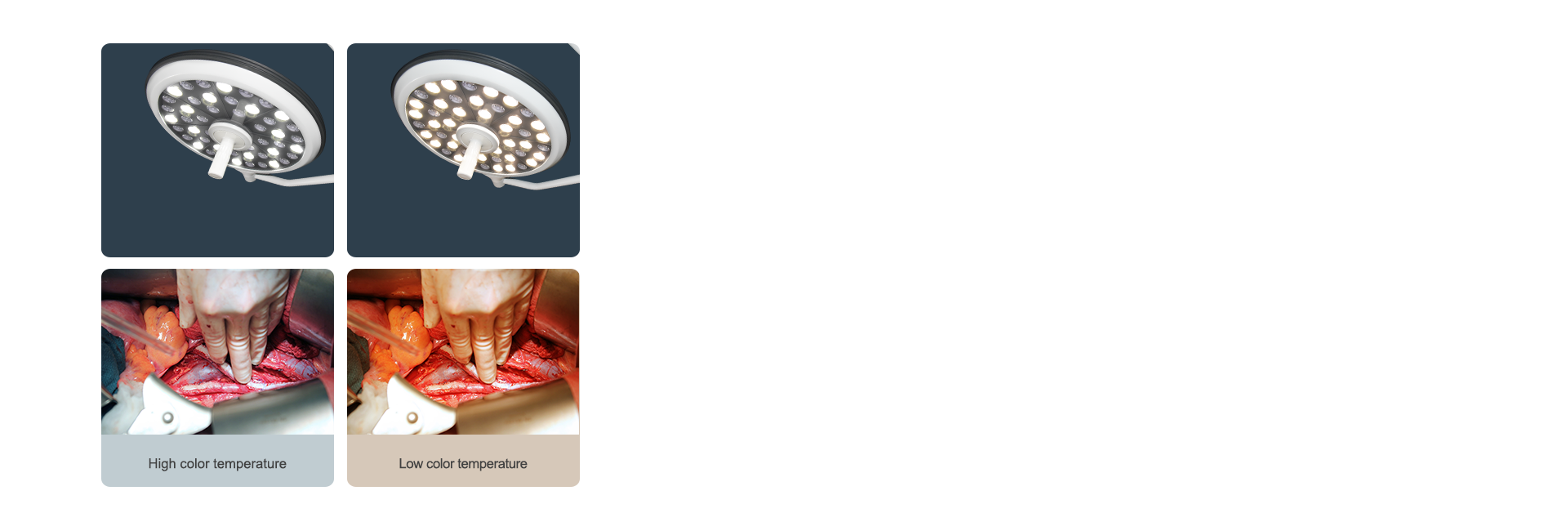

Color Temperature and Brightness Easy Adjustment

Color rendering index ≥ 85, near to real color as soon as possible
Stepless PWM dimming to satisfy brightness requirement for different surgery
Reasonable quantity and distribution design of high low color temperature light source, which achieve 4000-5000K color temperature adjustment

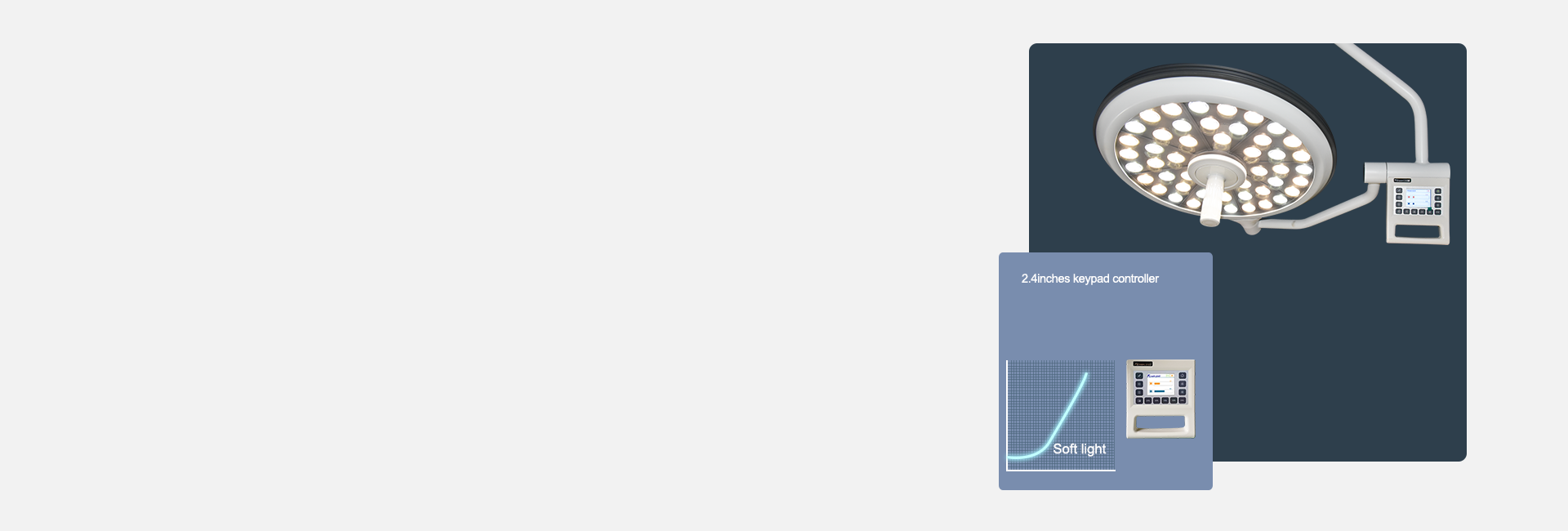

Easy Practical Operation

Soft Light with Eye Protection
Controllers for your optional

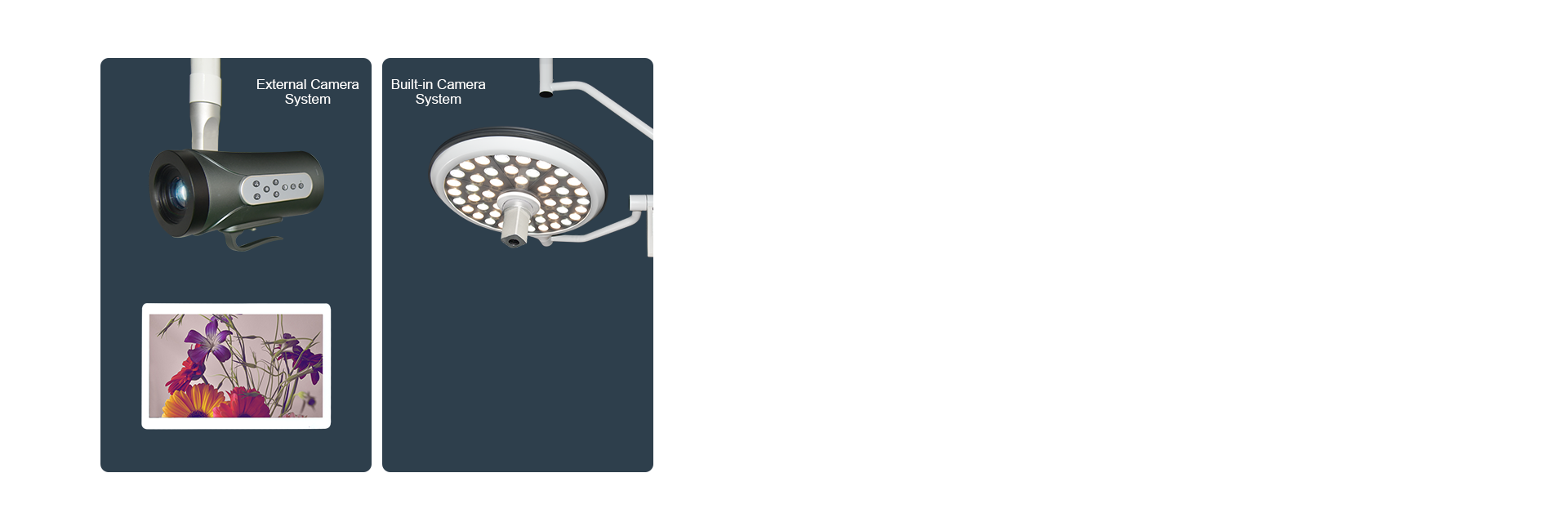

Optional HD Camera System

Surgical Light can be equipped with built in camera or external camera system
PWM technology, perfectly solving stroboscopic problem of the camera system
Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet and operating process can be recorded at the same time

Stable Structure, Easy Install and Usage

Adjusted with removable sterilizer handle with bear 134℃
Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust

Product parameters
Brand	Mplent
Manufacturer	Hunan Mplent Optoelectronics Technology CO., Ltd
Type	ZW-700D
Supply voltage	AC110-240V 50/60HZ
Spot diameter	120-260mm
ILLumination	40000-160000Lx
Color temperature	4000-5000k（adjustable）
Color rendering index	≥85
ILLumination depth	≥600mm
Brightness Adjustment	1% - 100% (stepless dimming)
LED Lifespan	≥50000h
LED Quantity	80
LED lamp brand	OSRAM
Maximum LED Power	Rated 3W, actual use ≤ 1W
