Wet and dry pendent bridge(Hanging box type)

Wet and dry pendent bridge(Hanging box type)

Equipped with mechanical brake device, without drift, can move easily
The color of the suspension bridge is soft and consistent. The gap at the joint of profiles should be sealed and the gas and electricity are separated
Communication paging, monitoring, video phone, background music and teaching and remote consultation system is optional according to your requirement

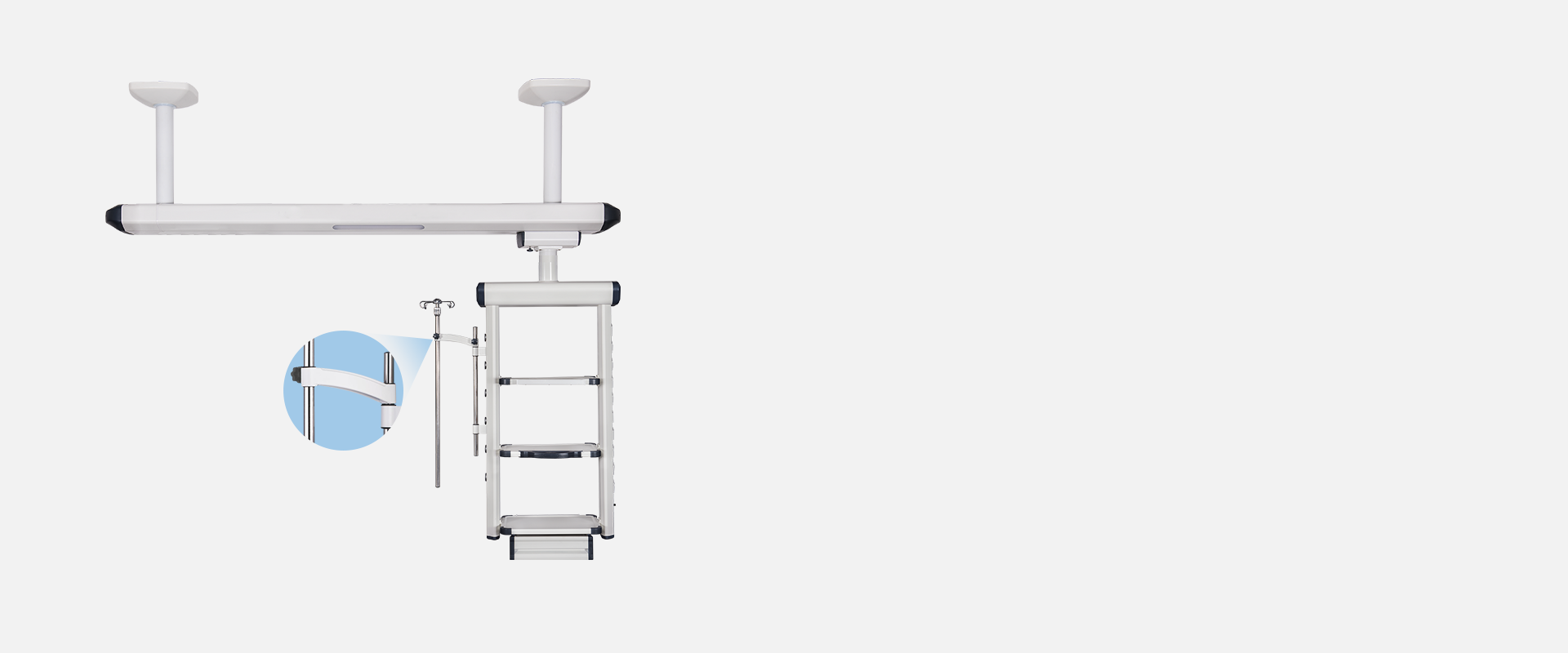

Function introduction

Function introduction

The color and shape of the interface are different, and it has the function of preventing error
The hose on the terminal is made of PVC material, and the functional pipes are distinguished by different colors
Each pendent is equipped with oxygen, negative pressure and compressed air joint free of charge
More than 20,000 times of insertion and removal; Gas terminal has scalability (GB, German, American standard, etc.)
The surface of the material is treated by electrostatic spraying. Corrosion resistant, easy to clean. Suitable for medical clean environment
All gas terminals, power supply interfaces and weak current interfaces are placed on the terminal box, and electricity and gas are separated

Product parameter

Working power

AC220V;50Hz

Length of beam

1800~2200mm (The actual size is subject to the user's worksite measurement)

Structure

Hanger type dry section tower:1pc(Move 400mm from side to side)

Instrument platform

3 layers, Single pallet bearing weight≥50kg,  550mm*400mm*30mm(adjustable height); use 10mm×25mm international standard side rail enclosure

Gas interface configuration

two oxygen, two suction, two air, could be configured according to the requirements of hospital )

Power supply outlet

7pcs, 220V、10A

Network por

one

Others

one lamp, Equipotential grounding terminal: 1pc; Pipeline management tool: 1set;One drawer;one stainless steel adjustable infusion rod frame(with 4 infusion bottle hooks);one stainless steel adjustable injection pump frame

Installation way

ceiling type
