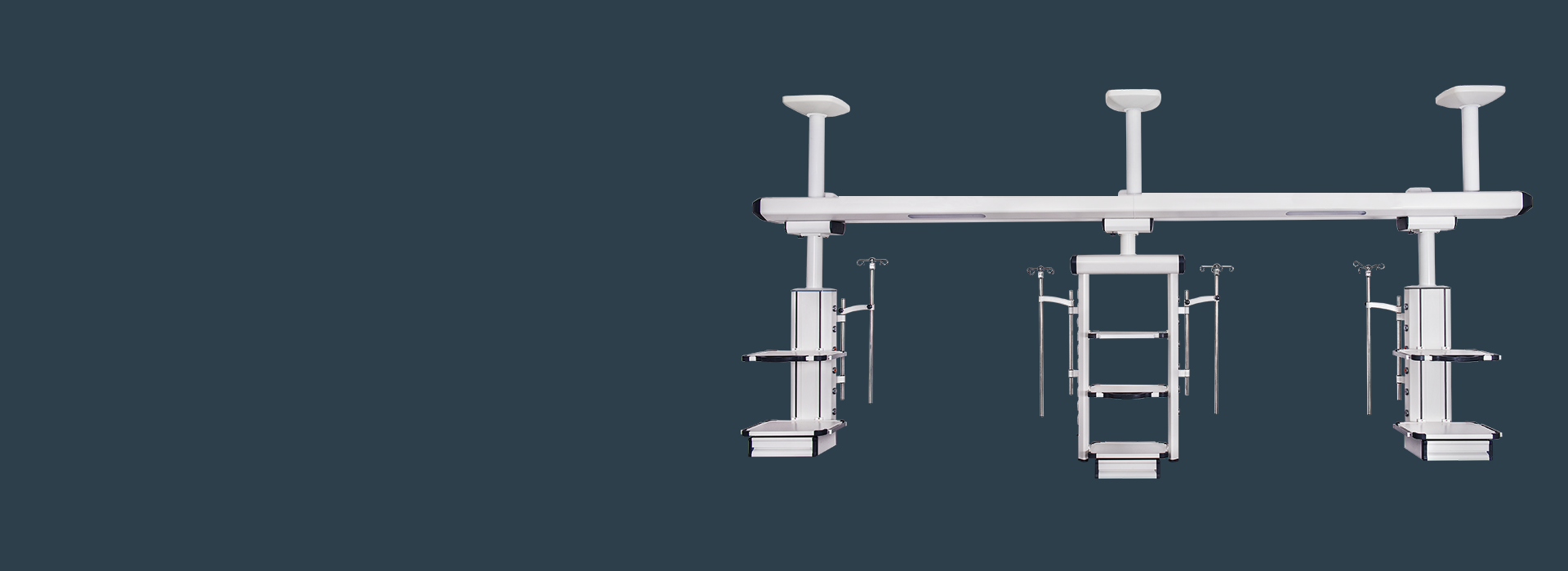

ICU Wet and dry separation pendent bridge for two beds

Suspension bridge is mainly composed of bridge frame, dry section and wet section
The wet section is equipped with an infusion stand and an infusion pump stand with flexible lifting
The dry and wet sections are equipped with a medical monitoring instrument platform which can be lifted and adjusted
The dry and wet sections used spiral arm structure to improve the treatment space
The moving rotation part adopts mechanical braking to prevent drift, and the center of the bridge is equipped with lighting treatment light

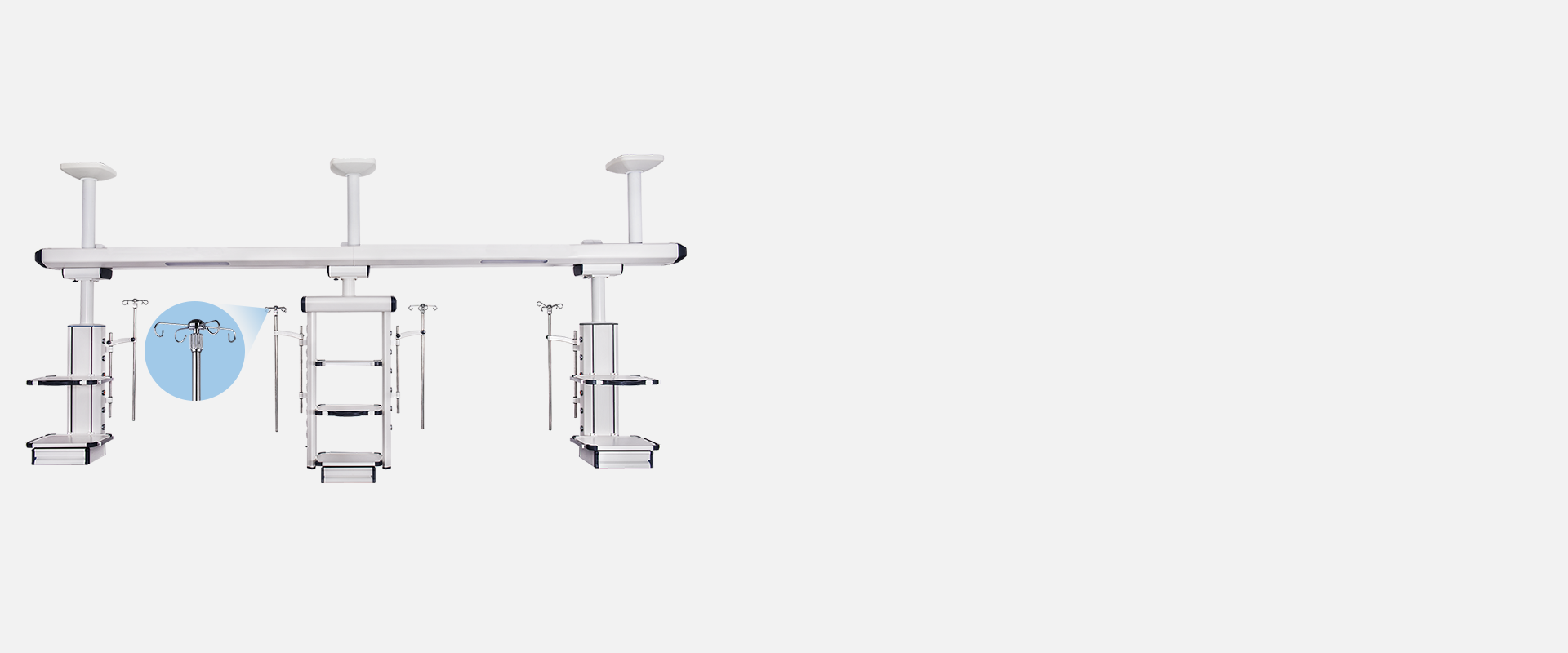

Function introduction

The color and shape of the interface are different, and it has the function of preventing error
More than 20,000 times of insertion and removal; Gas terminal has scalability (GB, German, American standard, etc.)
The main material is made of high strength 6063 aluminum alloy profile, moulded extrusion molding, modular splicing, the whole fully enclosed design, no acute Angle surface, no screws exposed
The surface of the material is treated by electrostatic spraying. Corrosion resistant, easy to clean. Suitable for medical clean environment
All gas terminals, power supply interfaces and weak current interfaces are placed on the terminal box, and electricity and gas are separated

product parameter
Dry and wet section pendent	Hanger type dry section tower:1pc(Move 500mm from side to side)	Column type wet section pendent: one (moving distance from left to right 500mm)
Working power	AC220V；50Hz
Length of beam	2600～3000mm (The actual size is subject to the user's worksite measurement)
Be able to rotate	0°～340°
load capacity	net deadweight≥150KG	net deadweight≥100KG
Instrument platform	3 layers, Single pallet bearing weight≥50kg, 550mm400mm30mm(adjustable height); use 10mm×25mm international standard side rail enclosure, round corner anti-collision design;	2 layers, Single pallet bearing weight≥50kg, 550mm400mm30mm(adjustable height); use 10mm×25mm international standard side rail enclosure, round corner anti-collision design;
Gas interface configuration	two oxygen, two suction, two air, could be configured according to the requirements of hospital )
Power supply outlet	7pcs、220V、10A
Port of communication	one RJ45 Network socket; one telephone port (the socket is extensible)	one RJ45 Network socket(the socket is extensible)
Others	Equipotential grounding terminal: 1pc; Pipeline management tool: 2sets;One drawer;one stainless steel adjustable infusion rod frame(with 4 infusion bottle hooks);one stainless steel adjustable injection pump frame
Installation way	ceiling
