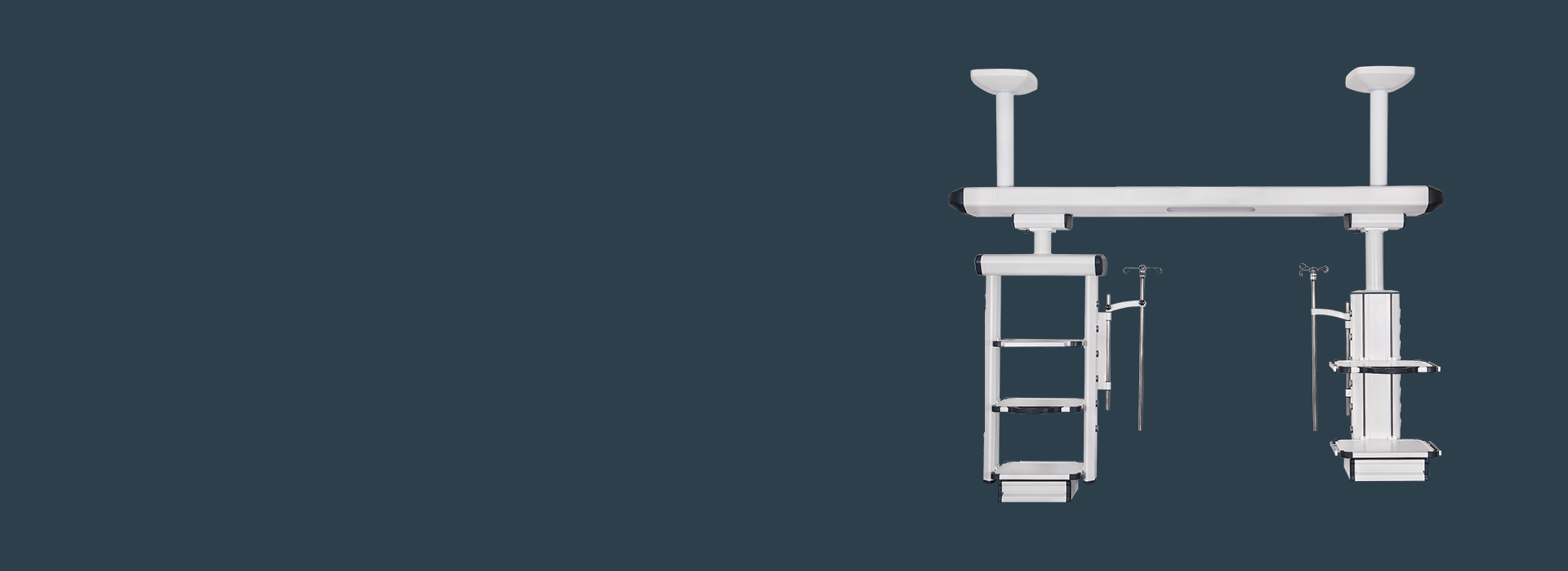

ICU Wet and dry separation pendent bridge

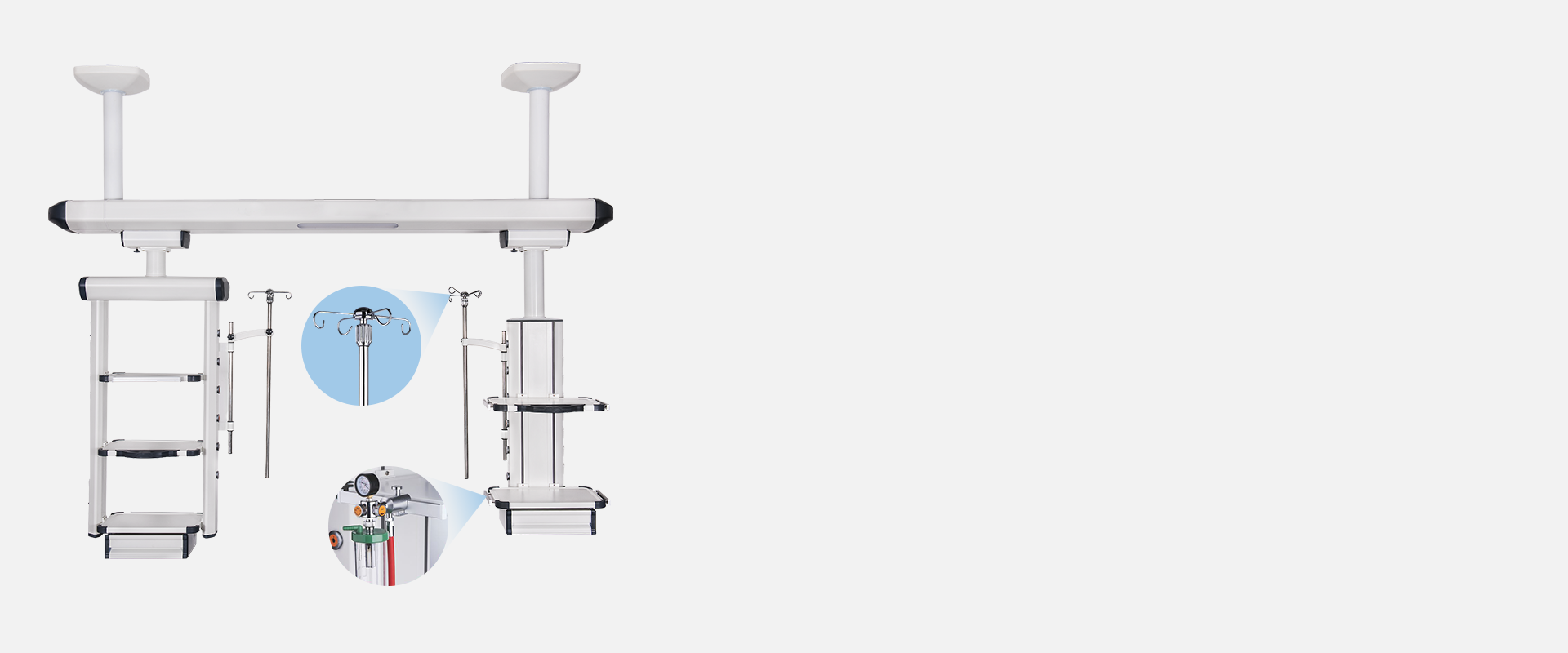

Function introduction

The color and shape of the interface are different, and it has the function of preventing error
More than 20,000 times of insertion and removal; Gas terminal has scalability (GB, German, American standard, etc.)
The surface of the material is treated by electrostatic spraying. Corrosion resistant, easy to clean. Suitable for medical clean environment
All gas terminals, power supply interfaces and weak current interfaces are placed on the terminal box, and electricity and gas are separated

product parameter
Dry and wet section pendent	Hanger type dry section tower:1pc(Move 500mm from side to side)	Column type wet section pendent: one (moving distance from left to right 500mm)
Working power	AC220V；50Hz
Length of beam	2600～3000mm (The actual size is subject to the user's worksite measurement)
Be able to rotate	0°～340°
load capacity	net deadweight≥150KG	net deadweight≥100KG
Instrument platform	3 layers, Single pallet bearing weight≥50kg, 550mm400mm30mm(adjustable height); use 10mm×25mm international standard side rail enclosure;	Instrument platform: 2 layers, Single pallet bearing weight≥50kg, 550mm400mm30mm(adjustable height); use 10mm×25mm international standard side rail enclosure;
Gas interface configuration	two oxygen, two suction, two air,(could be configured according to the requirements of hospital )
Power supply outlet	7pcs、220V、10A
Port of communication	one RJ45 Network socket; one telephone port (the socket is extensible)	one RJ45 Network socket(the socket is extensible)
Others	One lamp;Equipotential grounding terminal: 1pc; Pipeline management tool: 2sets;One drawer;one stainless steel adjustable infusion rod frame(with 4 infusion bottle hooks);one stainless steel adjustable injection pump frame
Installation way	ceiling
