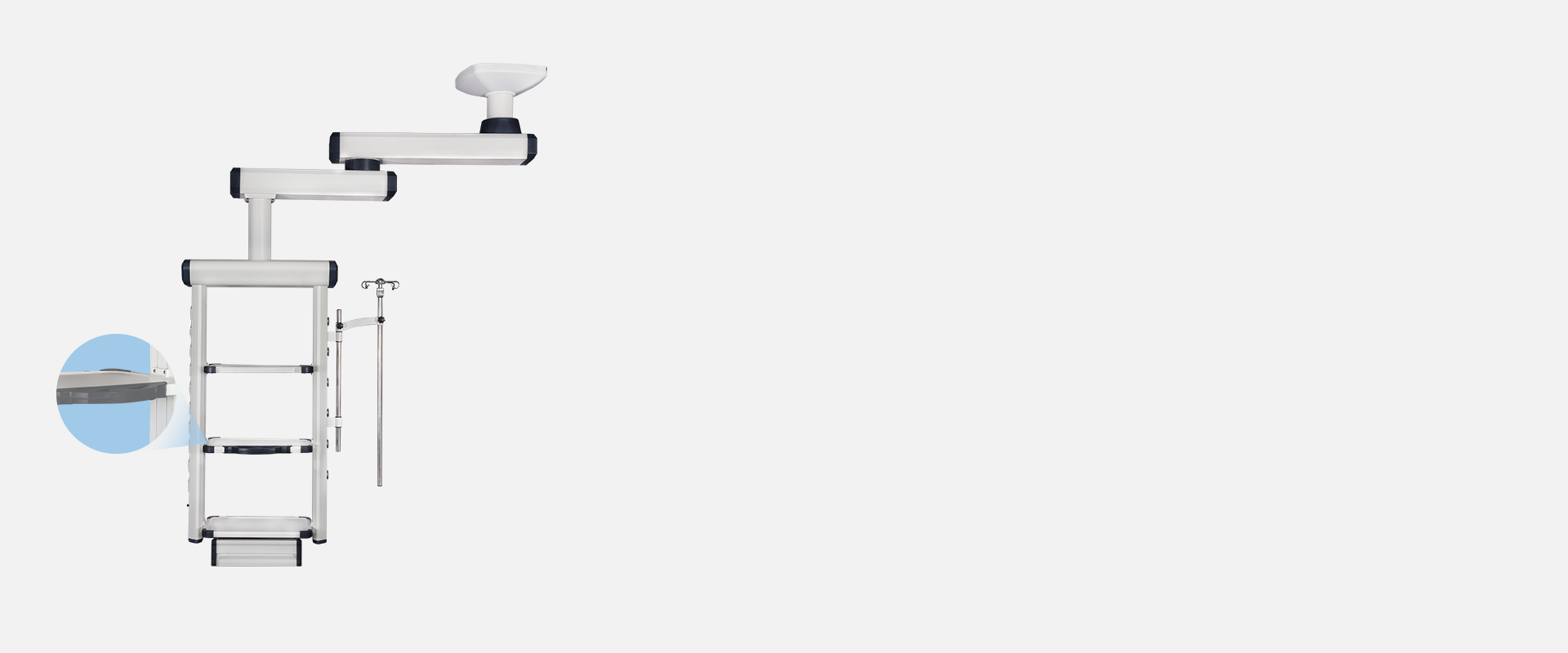

Double arm endoscopic pendant

Double arm endoscopic pendant

High carrying capacity
Suction ceiling installation, stable and firm
Mechanical brake anti-drift, stable and reliable performance
The overall color of the pendant tower is soft and consistent, the gaps at the joints of the profiles should be sealed, and the air and electricity separation design
Function introduction

Function introduction

The gas interface can be plugged more than 20,000 times; the gas terminal is scalable (optional national standard, German standard, American standard, etc.)
The tower body configuration can be equipped with medical gas terminals such as oxygen, suction, laughing gas, air and exhaust gas discharge terminals according to your requirements
The main material is made of high-strength 6063 aluminum alloy profiles, molded extrusion molding, modular splicing, overall fully enclosed design, no sharp angles on the surface, and no exposed screws
Electrostatic spraying is used for material surface treatment; anti-corrosion and easy to clean. Suitable for medical clean environment
Strong and weak current, network, communication paging, video and other sockets can also be reasonably selected

Product parameters

Working power

AC220V;50Hz

Cross arm range of motion (radius)

1100-1300mm (can be configured according to hospital requirements)

Structure

Terminal box suspension column structure, length ≥ 1000mm, rotatable angle: 0~340°

Load capacity

Net load capacity ≥ 70KG

The instrument platform

3 floors, a single pallet can bear ≥50KG, 550mm*400mm*30mm (height adjustable); the side rail enclosure adopts the international standard of 10mm*25mm, and the rounded corners are anti-collision design

Gas interface configuration

2 oxygen; 2 suction; 2 air (can be configured according to the requirements of the hospital)

power sockets

7pcs, 220V, 10A(socket has scalability)

Communication port

1 RJ45 network socket

Others

1 ground terminal, 2 sets of pipeline management tools, 1 drawer, 1 stainless steel adjustable infusion rod holder (with 4 infusion bottle hooks), 1 stainless steel adjustable syringe pump holder

Installation method

Suction ceiling installation
