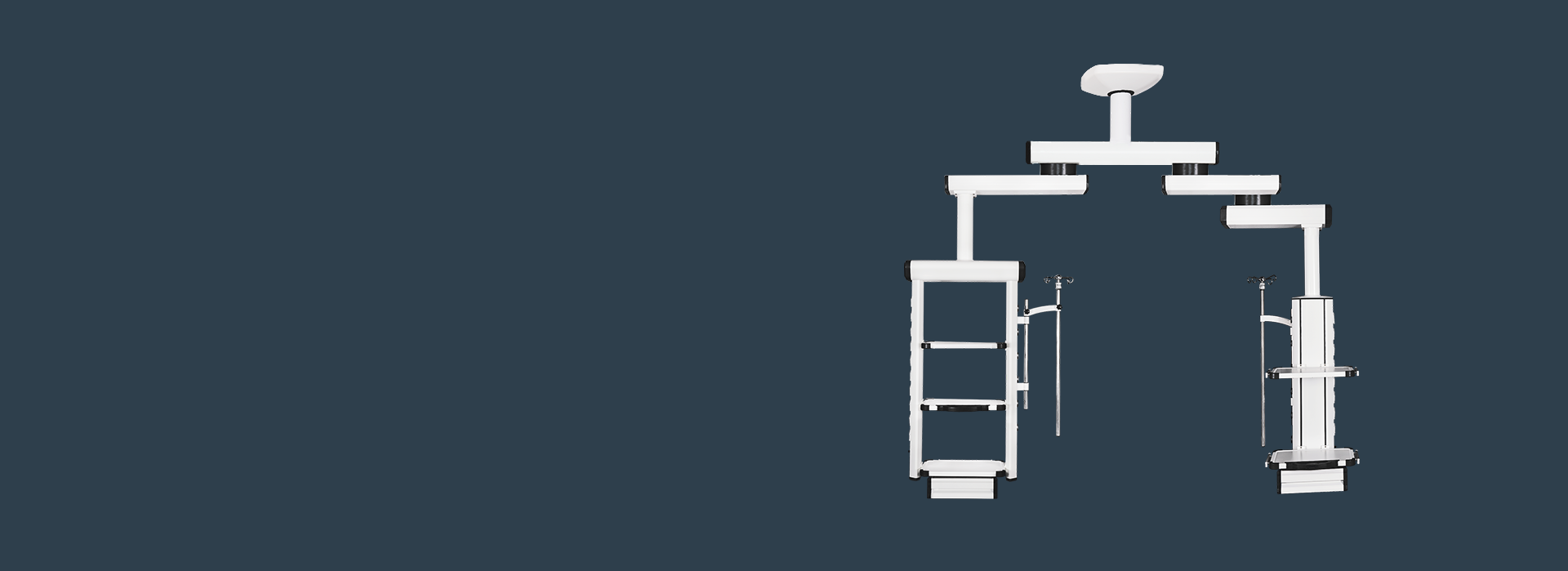

Three-arm combination pendant (model FQ-Z3M)

Home Products Tower suspension bridge Medical hanging tower Three-arm combination pendant (model FQ-Z3M)

High carrying capacity
Suction ceiling installation, stable and firm
Three-arm rotation, multi-arm combination, free rotation. (Arm length can be configured according to hospital requirements)
Optional brake device, the equipment has no drift, and the equipment can move easily when it is released

Function Description

The color and shape of the interface are different, and it has the function of preventing wrong connection
The hose on the terminal is made of PVC material, and the functional pipelines are distinguished by different colors
The main material is made of high-strength aluminum alloy profiles, with no sharp angles on the surface and no exposed screws
All gas terminals, power interfaces and weak current interfaces are placed on the terminal box, and electricity and gas are separated，The net load of the dry section tower is ≥80kg
Davit type wet section tower, The power interface and the gas source are distributed on both sides of the tower body, fully realizing the separation of electricity and gas to ensure the safety of equipment use

product parameter
Dry and wet section tower	1* hanger type dry section pendant	1*Davit type wet section tower
Work Power	AC220V；50Hz
Rotation angle	0°～340°
Instrument platform	3 floors (adjustable height) 550×400*30mm; 10mm×25mm international standard side rail enclosure	2 floors (adjustable height) 550×400*30mm; 10mm×25mm international standard side rail enclosure
Gas interface configuration	2 oxygen, 2 suction, 2 air(can be configured according to the hospital)
multi-function power socket	6pcs，220V
communication port	1telephone interface， 1 RJ45 network interface	1 * RJ45 network interface
Others	1 ground terminal, 1 drawer, 1 stainless steel adjustable infusion rod holder, 1 stainless steel adjustable syringe pump holder	1 ground terminal, 1 drawer, 1 stainless steel adjustable infusion rod holder, 1 stainless steel adjustable syringe pump holder, 1 storage basket
Installation method	Ceiling installation
