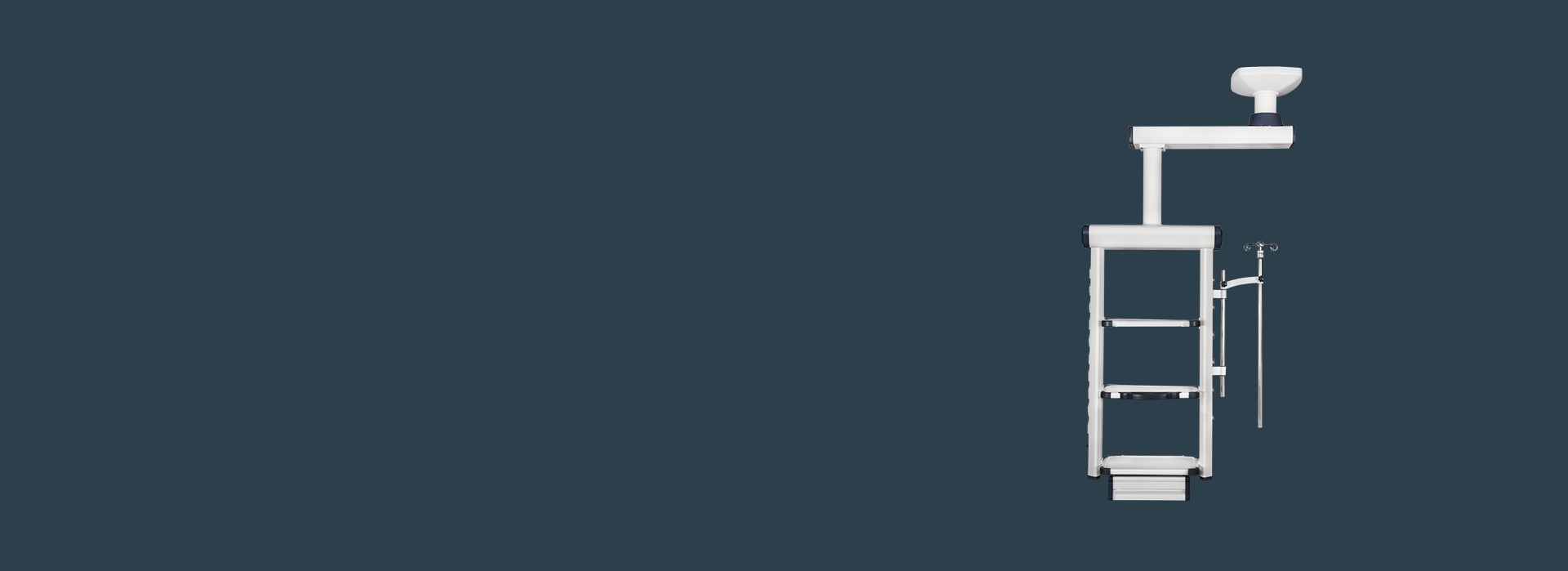

Single arm endoscope pendant

High bearing capacity
Suction top installation, stable and firm
Mechanical brake drift prevention, stable and reliable performance
The color of the whole hanging tower is soft and consistent. The gap at the joint of profiles should be sealed, and the gas and electricity are separated

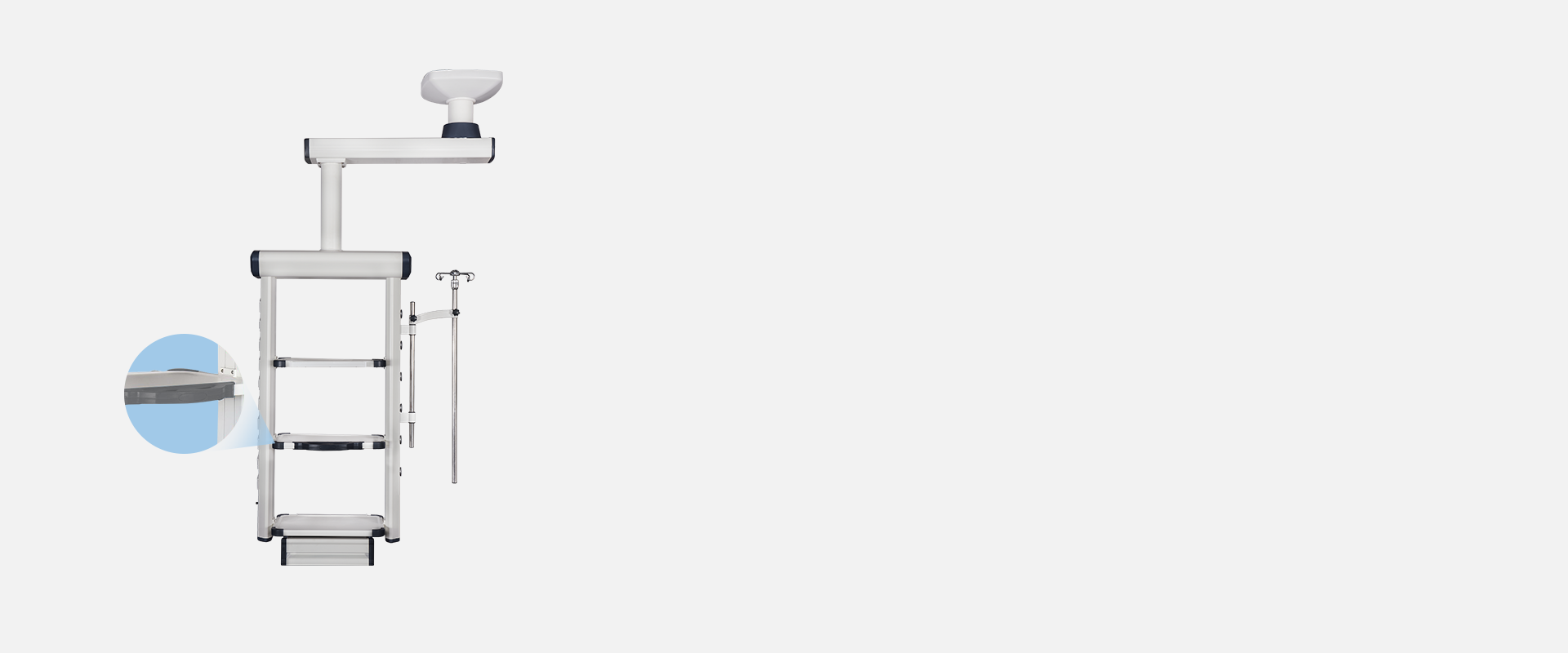

Function Description

The terminal box hanger structure has a rotating limit device to ensure the stability of the equipment without drift Gas interface color and shape is different, with anti - error function
The hose on the terminal is made of PVC material, and the functional pipes are distinguished by different colors
The gas interface can be pluggable more than 20,000 times; Gas terminal has scalability (GB, German, American standard, etc.)
The tower body configuration can be selected according to your requirements, such as oxygen, suction, laughing gas, air and other medical gas terminals and exhaust emission terminals
The main material is made of high strength 6063 aluminum alloy profile, moulded extrusion molding, modular splicing, the whole fully enclosed design, no acute Angle surface, no screws exposed

Product parameters
Working power supply	AC220V；50Hz
Range of motion of the transverse arm (radius)	700-1100mm (can be configured according to hospital requirements) Structure Terminal box hanger structure, length ≥1000mm, rotating Angle: 0 ~ 340°
Load capacity	Net load capacity ≥70KG
Instrument platform	3 layers, a single tray bearing weight ≥50KG, 550mm400mm30mm (height adjustable); The side rail enclosure adopts 10mm*25mm international standard, round corner collision avoidance design
Gas interface configuration	2 oxygens; 2 attracts; 2 air (can be configured according to the requirements of the hospital)
Power sockets	7 power sockets; 220V,10A (socket is expandable)
Communication port	One RJ45 network socket
Other ground	terminal* 1, 2 sets of pipeline management tools, 1* drawer, 1 *stainless steel adjustable infusion rod holder (with 4 infusion bottle hooks), 1 stainless steel adjustable injection pump holder
Installation Method	Suction top installation
