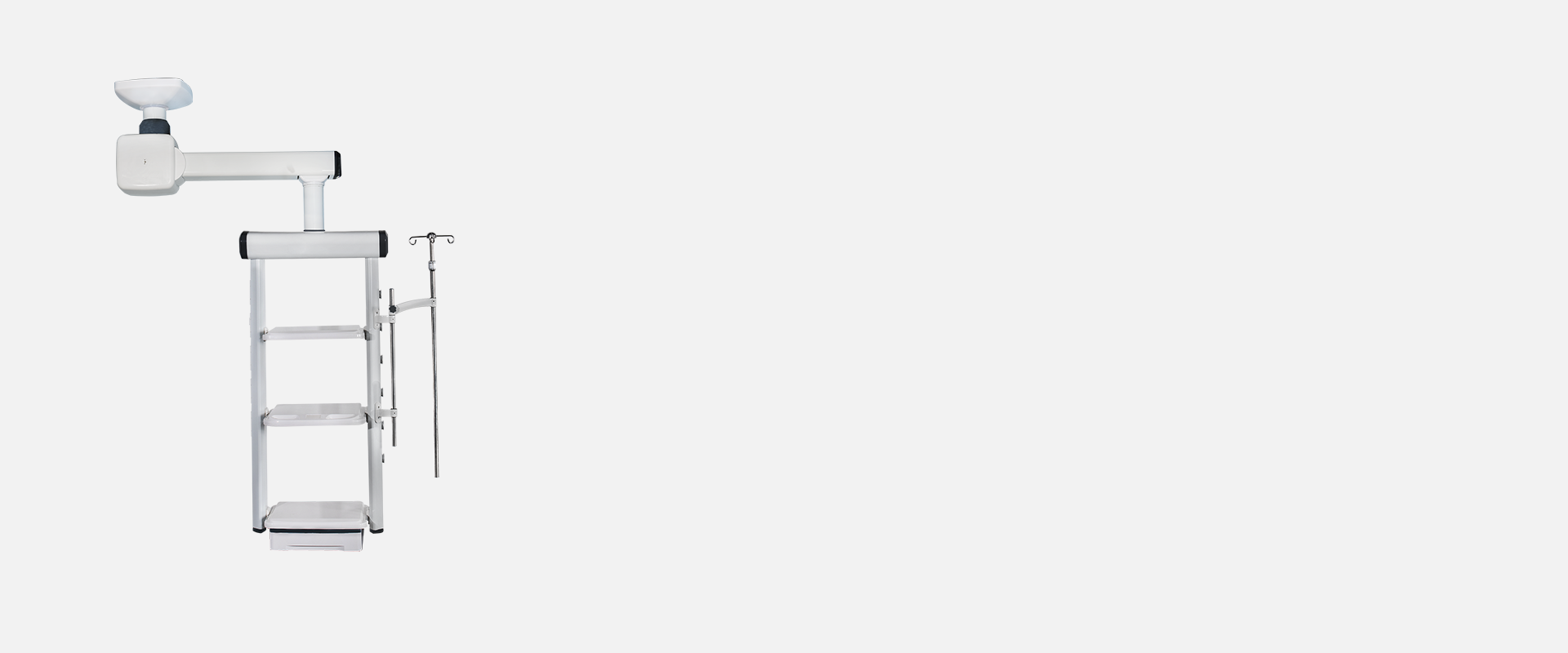

Single arm electric anesthesia pendant FT-X1E - Hunan Mplent Optoelectronics Technology CO., Ltd.

Function Description

The terminal box hanger structure has a rotating limit device to ensure the stability of the equipment without drift Gas interface color and shape is different, with anti - error function
The hose on the terminal is made of PVC material, and the functional pipes are distinguished by different colors
The gas interface can be pluggable more than 20,000 times; Gas terminal has scalability (GB, German, American standard, etc.)
The tray is a sheet metal stamping molding, surface anticorrosion and rust treatment
The surface of the material is treated by electrostatic spraying. Corrosion resistant, easy to clean. Suitable for medical clean environment

Product parameters
Working power supply	AC220V；50Hz
Range of motion of the transverse arm (radius)	700-1100mm (can be configured according to hospital requirements) Structure Terminal box hanger structure, length ≥1000mm, rotating Angle: 0 ~ 340°
Electric lift	≥500mm
Load capacity	Net load capacity ≥70KG
Instrument platform	3 layers, a single tray bearing weight ≥50KG, 550mm400mm30mm (height adjustable); The side rail enclosure adopts 10mm*25mm international standard, round corner collision avoidance design
Gas interface configuration	2* oxygens; 2* attracts; 2 *air; (can be configured according to hospital requirements)
Power sockets	7* power sockets; 220V,10A(socket is expandable)
Communication port	1* RJ45 network socket
Other ground	terminal 1, 2 sets of pipeline management tools, 1 drawer, 1 stainless steel adjustable infusion rod holder (with 4 infusion bottle hooks), 1 stainless steel adjustable injection pump holder
Installation Method	Suction top installation

Single arm electric anesthesia pendant
