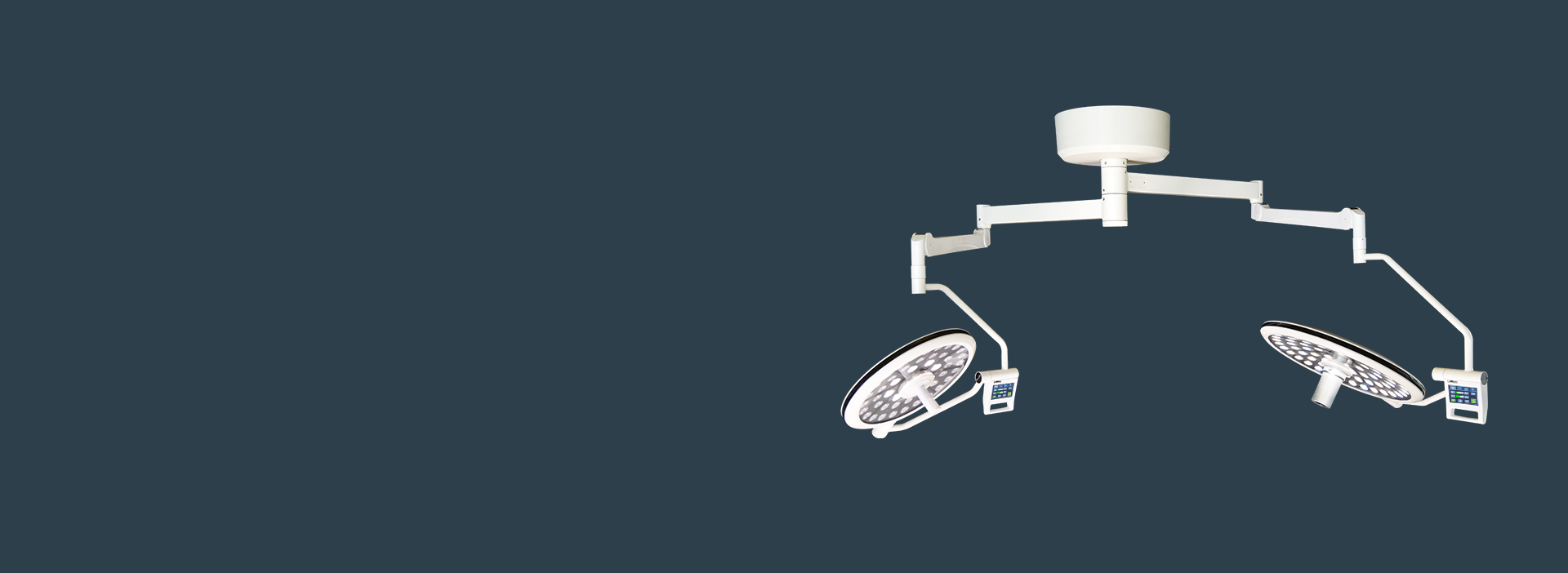

ZW-700/500D II

Home Products Surgical light LED Surgical Light ZW-700/500D II

High efficient and durable OSRAM LED light source without thermal radiation
Easy adjustment for color temperature and brightness, light spot uniform ajustment
Ultra Slim Streamlined lamphead，high efficient optics and unique light source device design
Optional fuction: External / Built-in camera system, brightness gesture sensor, shadow compensation, handheld wireless remote controller and other new optional function

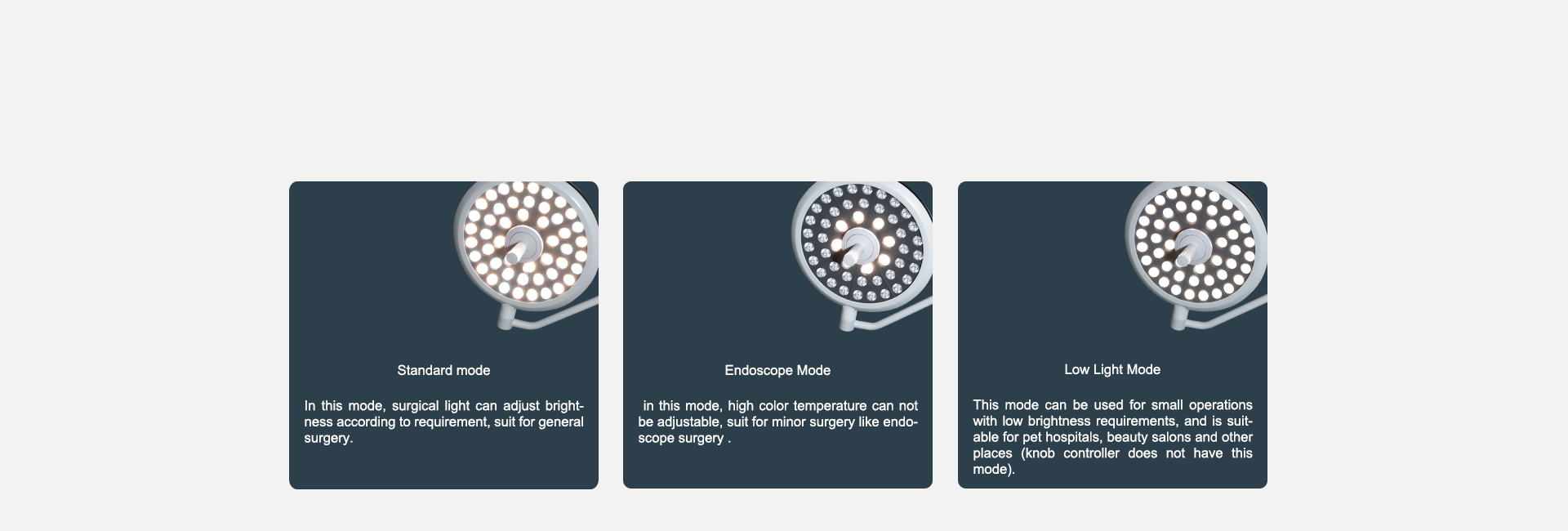

Three lighting modes

Three Lighting Mode suit for various operation with different lighting requirement

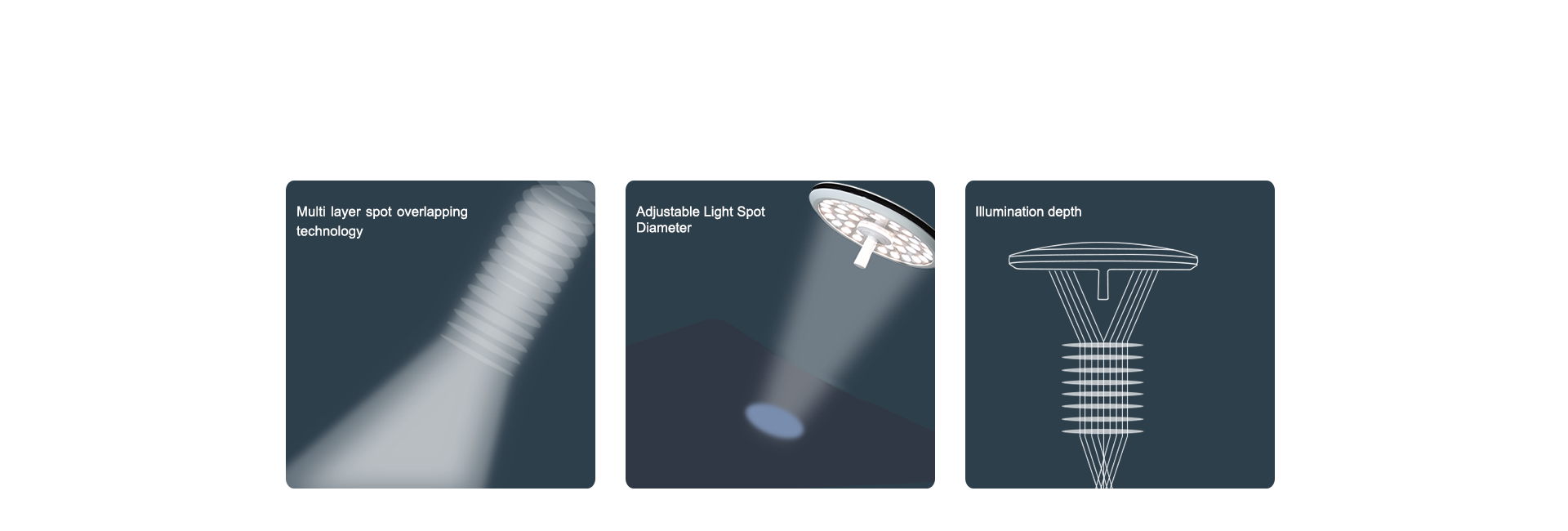

Uniform Adjustable Light Spot

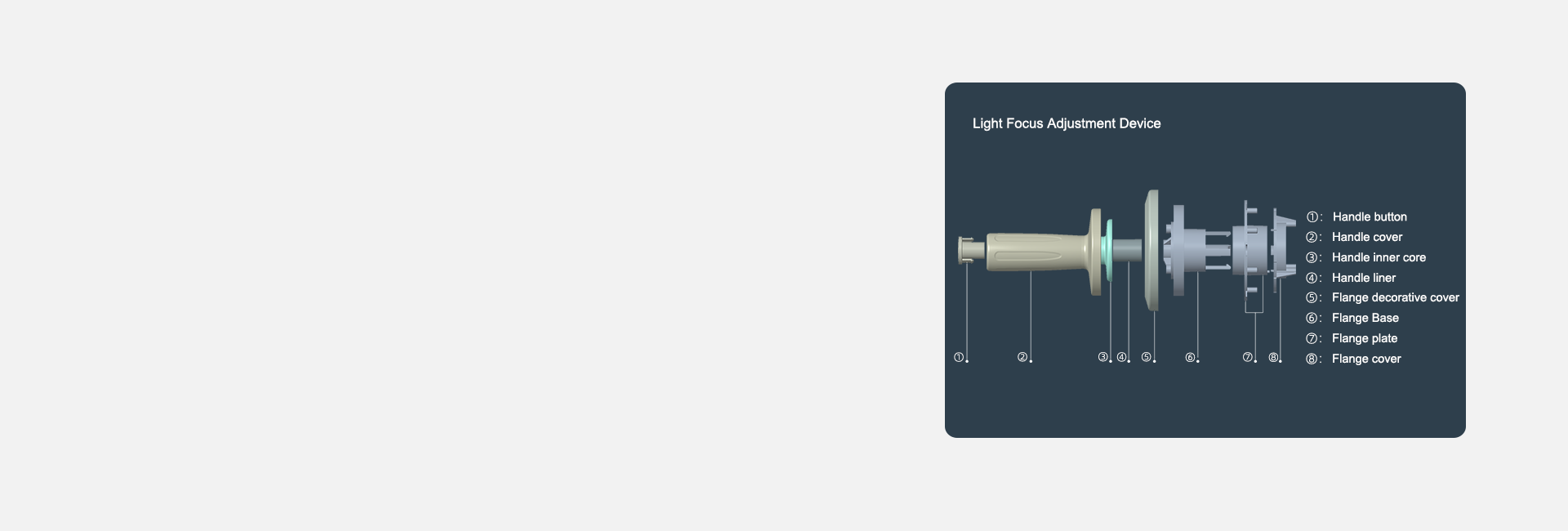

Multi layer spot overlapping technology, central focusing device, clear operation field

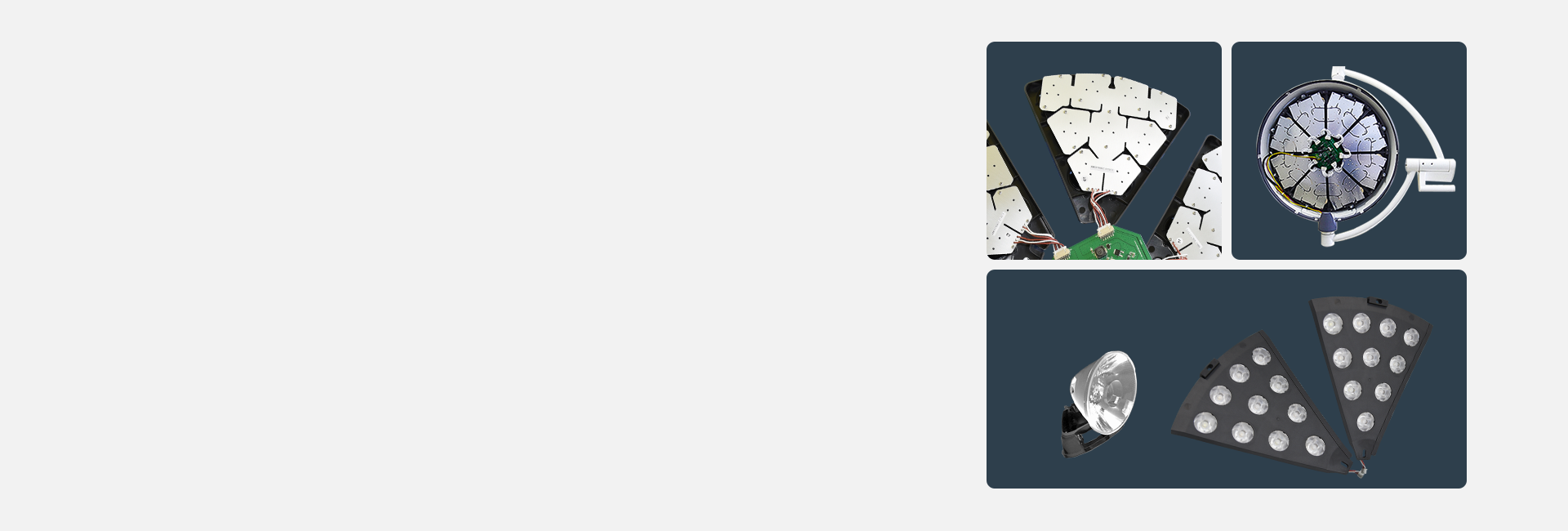

Excellent light source module design

Lamphead with 80/48pcs LED light source, which are divided into multiple light source groups
Excellent lighting collecting technology (lens focusing agnle is reasonable), Excellent light efficiency
Each group light source is controlled by CPU independently, if any group light source is broken, the light can still use
Internal Light Source Structure: Engineering Plastic ABS + Aluminum Board, good heat dissipation and lighter weight

Color Temperature and Brightness Easy Adjustment

Color rendering index ≥ 85, near to real color as soon as possible
Stepless PWM dimming to satisfy brightness requirement for different surgery
Reasonable quantity and distribution design of high low color temperature light source, which achieve 4000-5000K color temperature adjustment

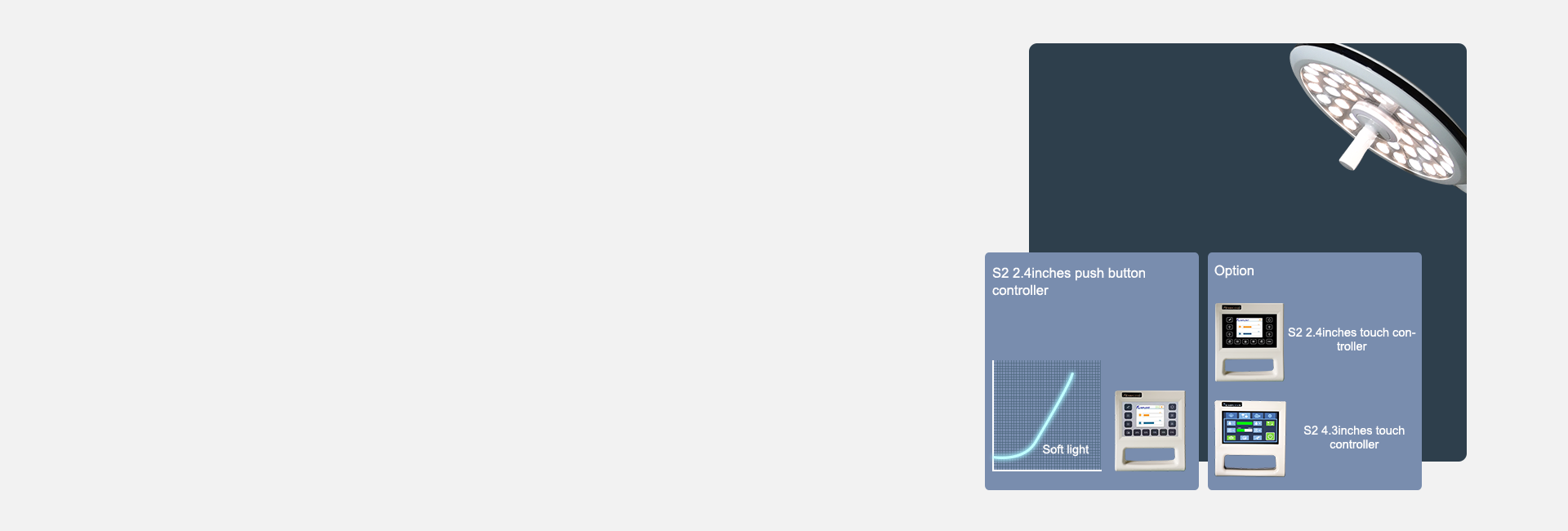

Easy Practical Operation

Soft Light with Eye Protection
Controllers for your optional
2.4inches push button controller with easy usage

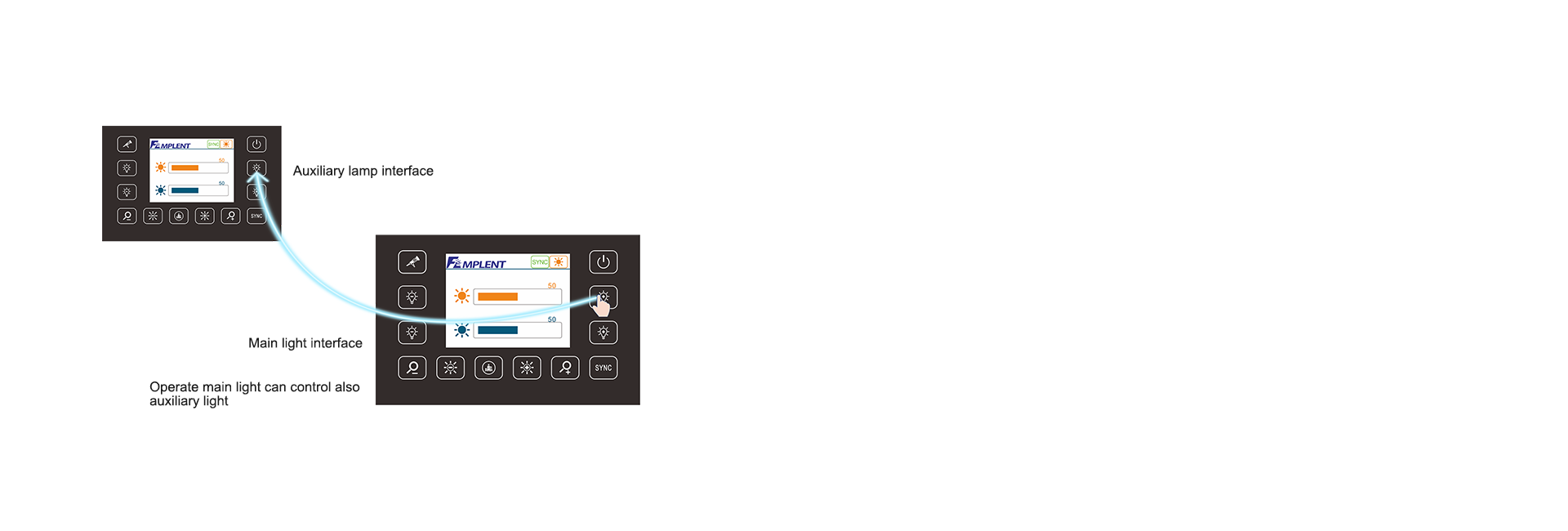

Mutual Control for Both Lamp Head

Both lamphead controller can control mutually each other`s color temperature, endoscope, camera and others ( knob dimmer have no this function)

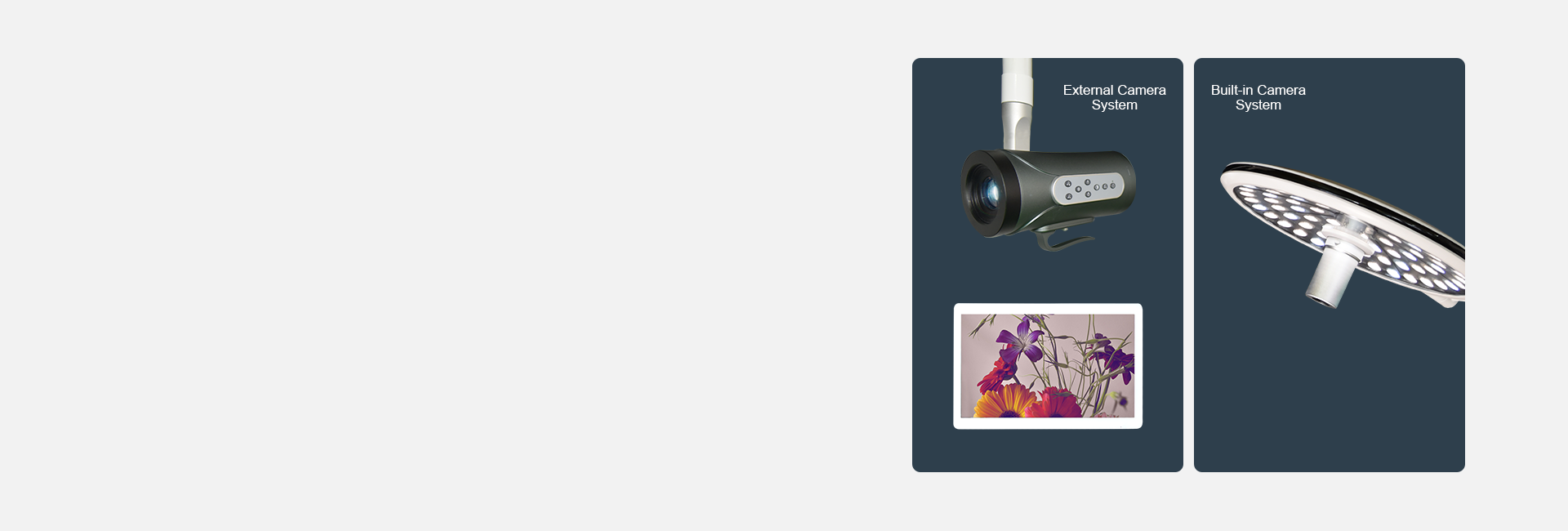

Optional HD Camera System

Surgical Light can be equipped with built in camera or external camera system
PWM technology, perfectly solving stroboscopic problem of the camera system
Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet and operating process can be recorded at the same time

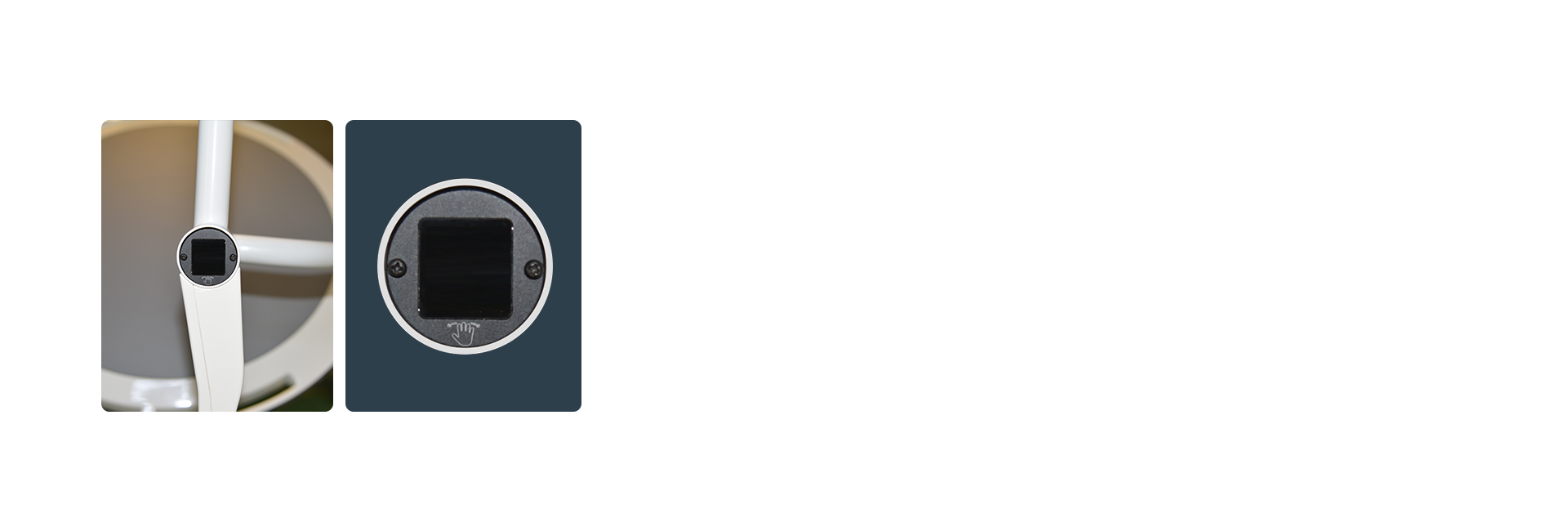

Optional Gesture Sensing

Sensor to recognize gesture, achieve non-contact brightness adjustment, more convenient and faster

Optional Shadow Compensation

Humanized intelligent shadow compensation technology
When surgeon`s head is near to the light source, other light source will automatically compensated brightness to ensure the ideal light beam on the operating field

Optional Handheld wireless remote controller

Using LoRa modulation technology, encryption wireless transmission, safe and reliable
Transimission distance is not less than 20meters, it can realize remote control with surgical light

Stable Structure, Easy Install and Usage

Adjusted with removable sterilizer handle with bear 134℃
Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust

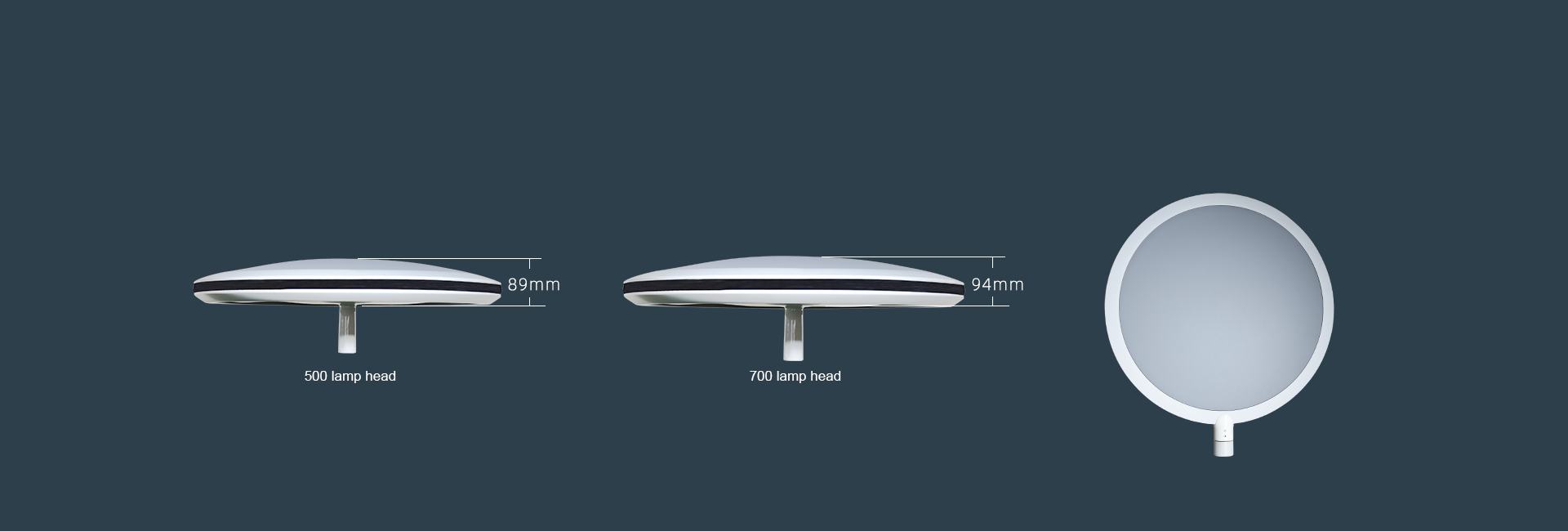

Untra Thin Lamp Head Design

Ultra thin streamlined lamp head, more convenient operation

Product parameters
Brand	Mplent
Manufacturer	Hunan Mplent Optoelectronics Technology CO., Ltd
Type	ZW-700/500D II
Supply voltage	AC110-240V 50/60HZ
Spot diameter	700 lamp head 120-260mm（adjustable） 500 lamp head 120-280mm（adjustable）
ILLumination	700 lamp head 40000-160000Lx 500 lamp head 40000-120000Lx
Color temperature	4000-5000k（adjustable）
Color rendering index	≥85 (adjustable)
ILLumination depth	≥1000mm
Brightness Adjustment	1%-100%
LED Lifespan	≥50000h
LED Quantity	700 lamp head ,80 500 lamp head ,48
LED lamp brand	OSRAM
Maximum LED Power	Rated 3W, actual use ≤ 1W
