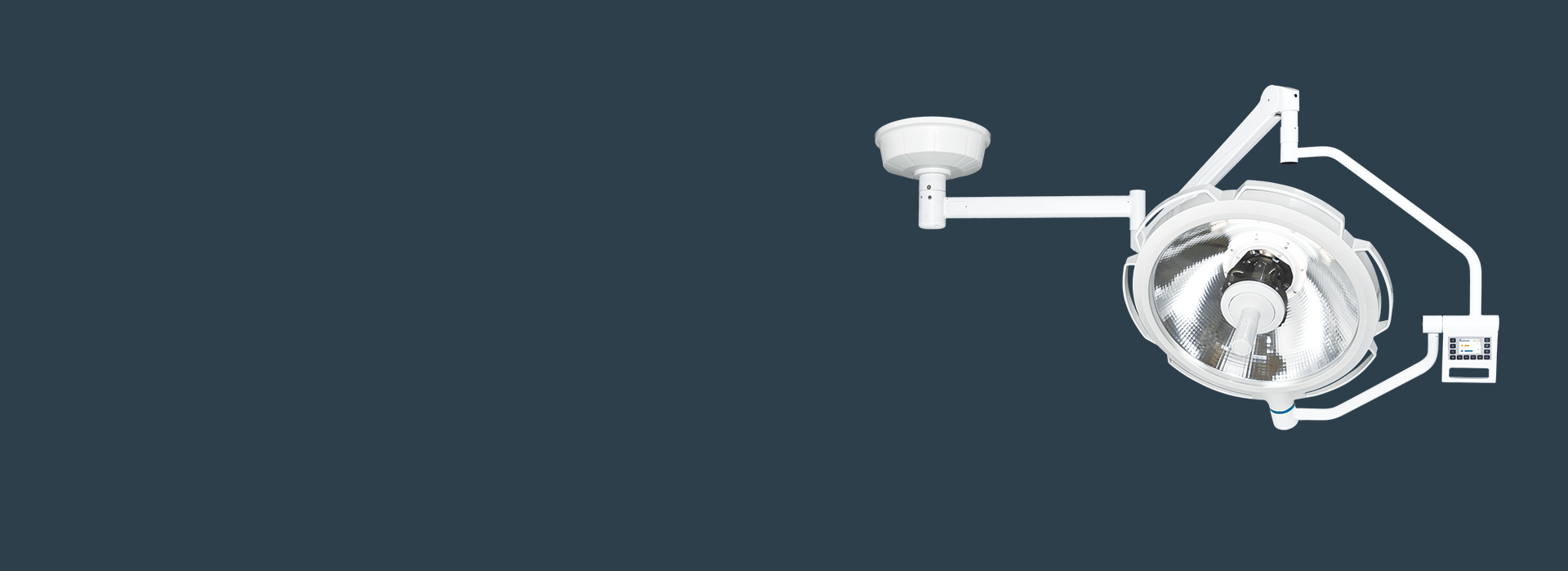

ZW-700E II

Home Products Surgical light Entire Reflection LED Surgical Light ZW-700E II

Optional Full HD built-in/external camera system
With unique reflector, excellent lighting collecting technology, superior shadowless effect
High efficient and durable OSRAM LED light source, with average lifespan over 50000 hours
With PWM stepless dimming, the color temperature and brightness can be adjusted steplessly, and the light spot can be controlled uniformly

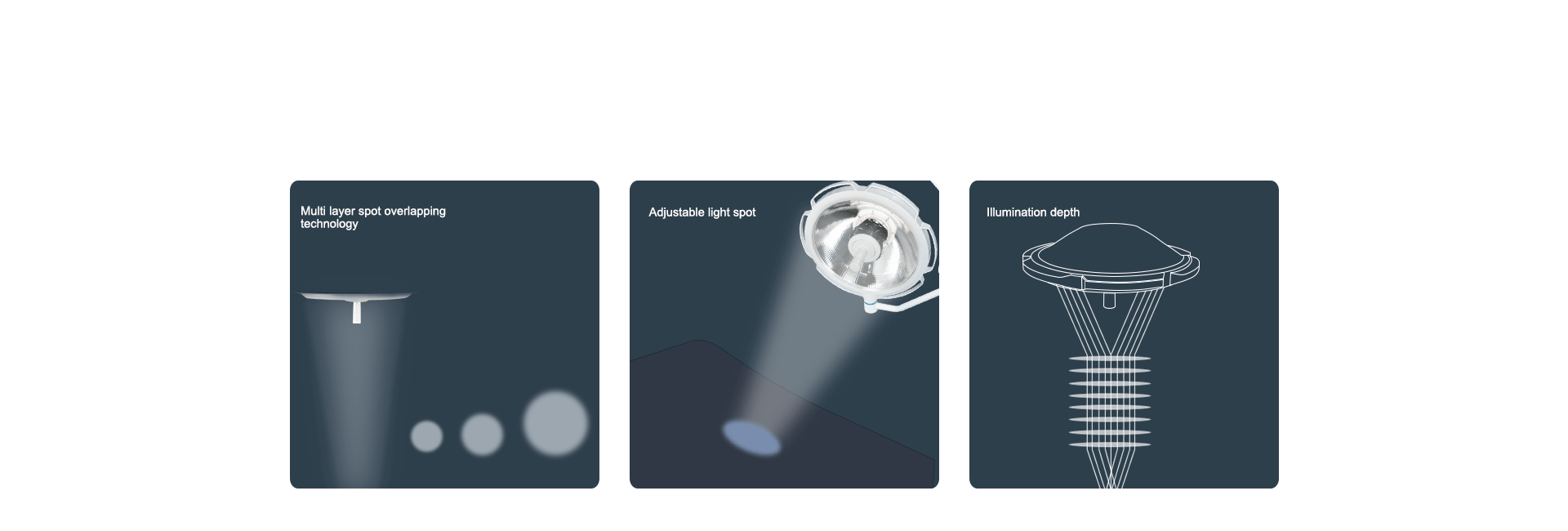

Uniform Adjustable Light Spot

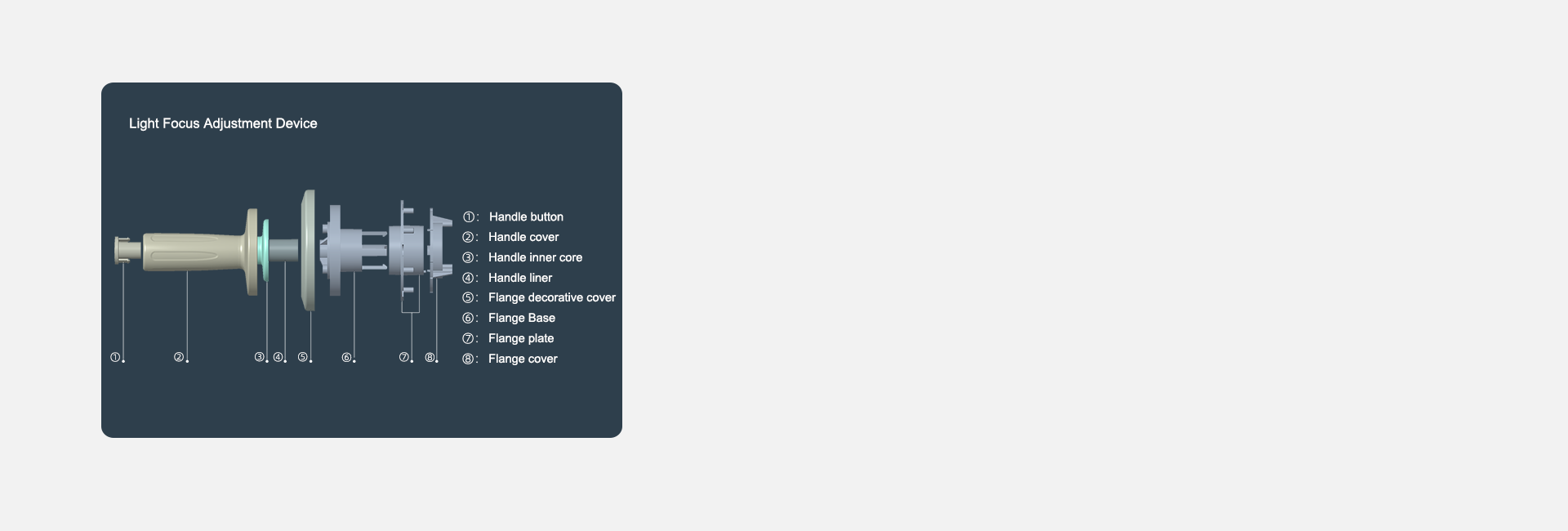

Multi layer spot overlapping technology, central focusing device, clear operation field

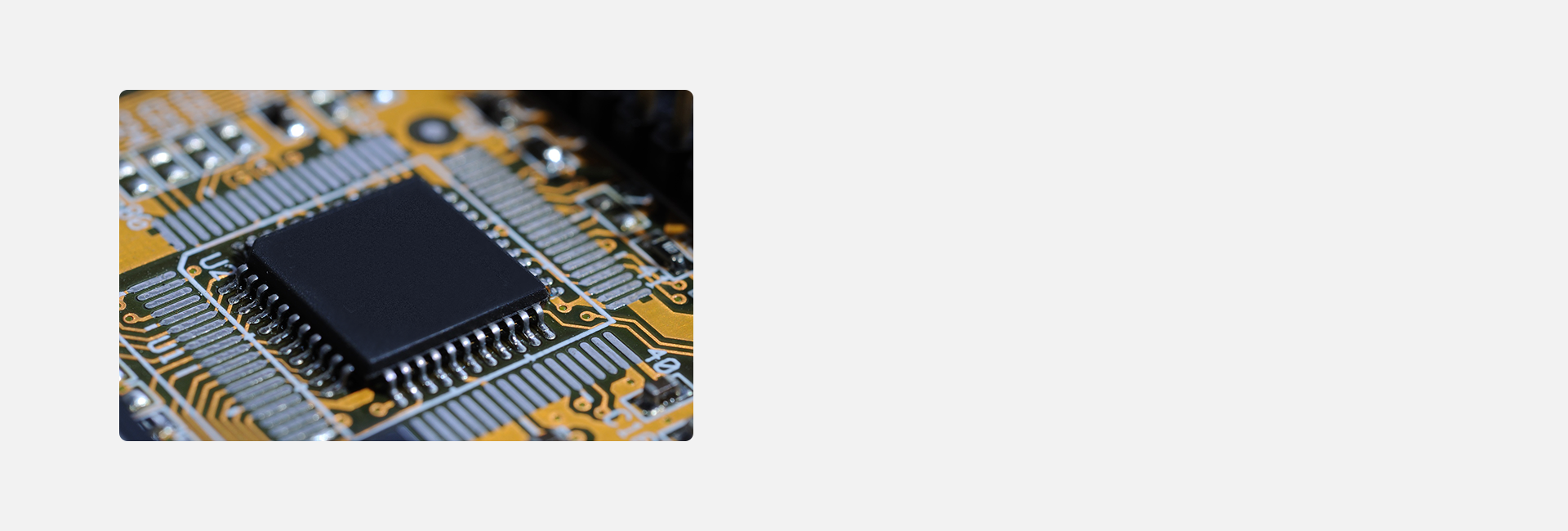

PWM Dimming Technology

PWM dimming technology to achieve 1%-100% brightness stepless adjument
Color rendering index ≥ 85, near to real color as possible, it is easier to distinguish different tissue parts
PWM control constant current chip, more accurate control of current output, almost no effect on the color temperature change

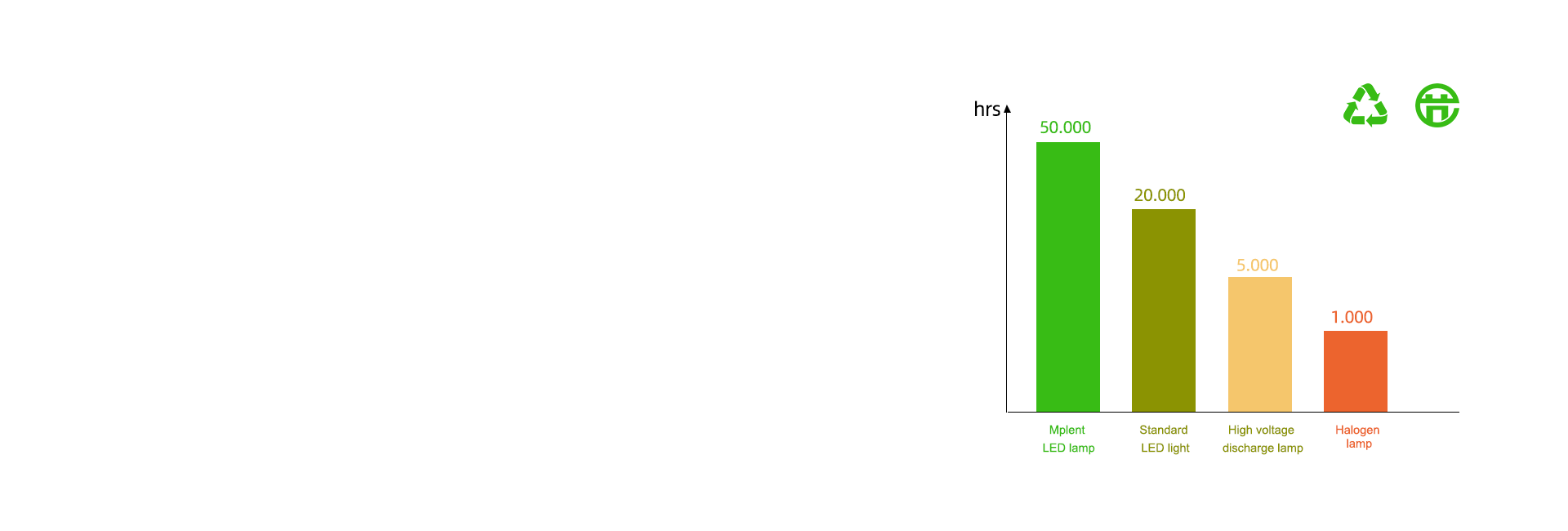

Efficient and durable LED light source

Osram light source with average lifespan over 50000hours (equivalent to 6 years of continuous lighting)
Superior cold light source, total power 70VA, high light efficiency, low power consumption and longer lifespan

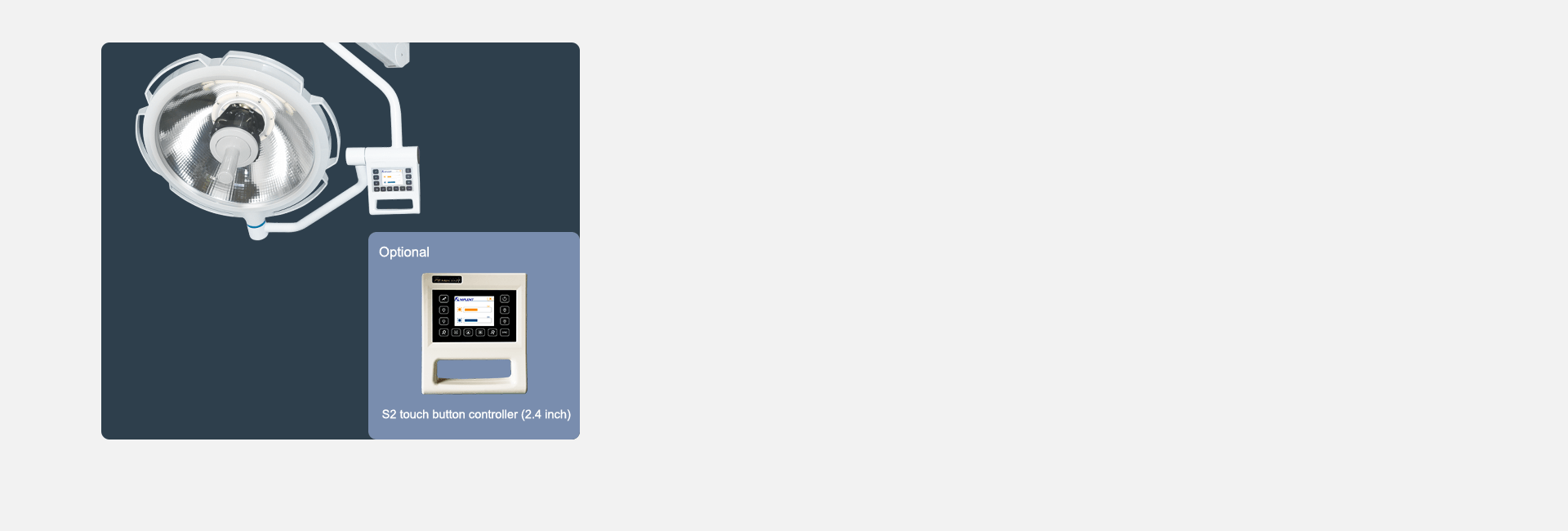

Easy Practical Operation

Optional controller for your requirement
2.4inches keypad controller with easy usage

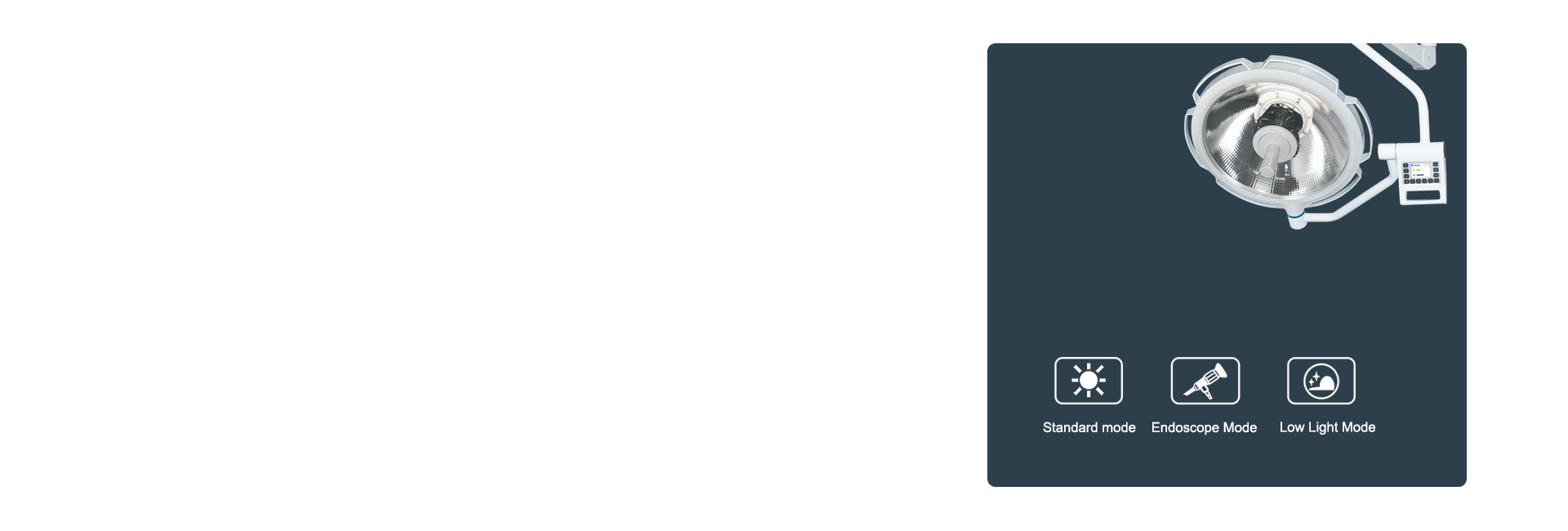

Three lighting modes

Standard mode: surgical light can adjust brightness according to requirement, suit for general surgery
Endoscope Mode: high color temperature can not be adjustable, suit for minor surgery like endoscope surgery
Low light mode: use for small operations with low brightness requirements, and suit for pet hostipals, beauty salons and other placed (knob dimmer does not have this mode)

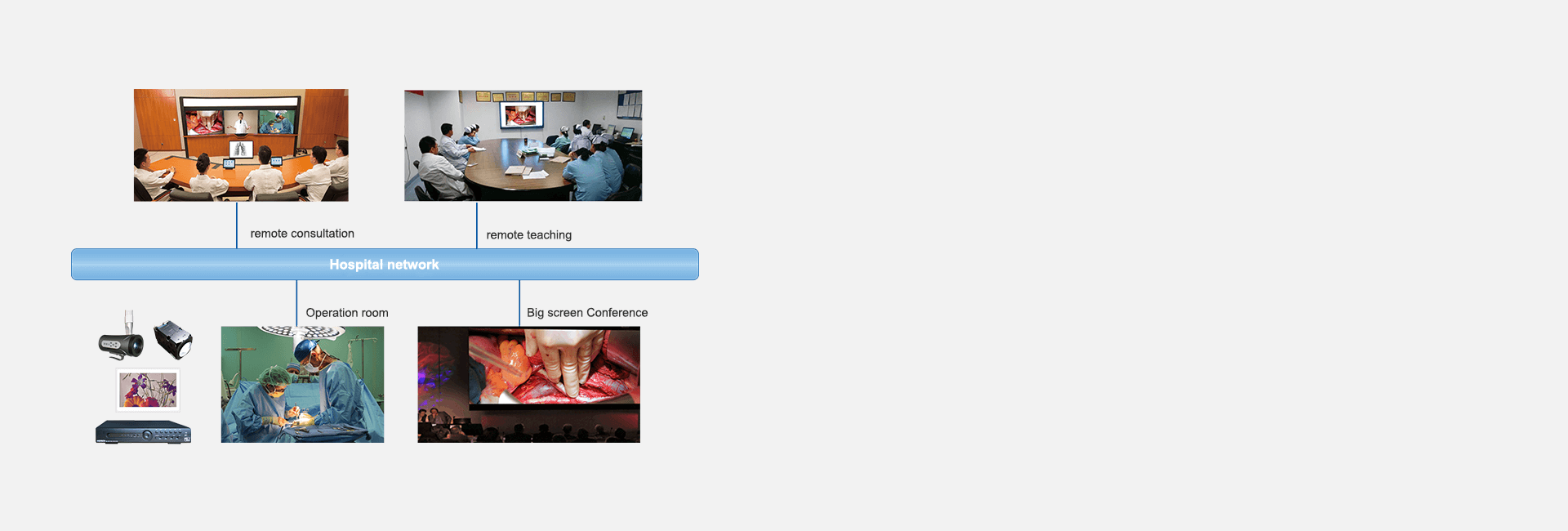

Optional HD Camera System

Surgical Light can be equipped with built in camera or external camera system
PWM technology, perfectly solving stroboscopic problem of the camera system
Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet and operating process can be recorded at the same time

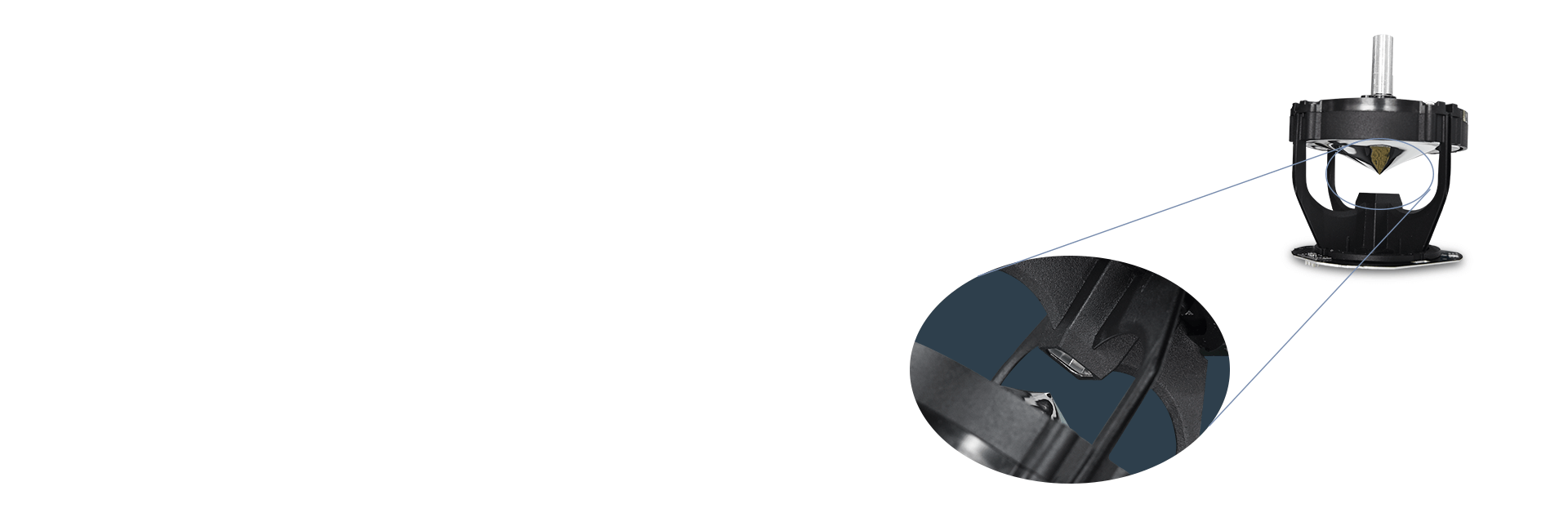

Excellent Light Collecting Technology

Low power consumption and good heat dissipation ensure long LED lifespan
The light engine uses unique light source design, which improves light efficiency

Stable Structure, Easy Install and Usage

Adjusted with removable sterilizer handle with bear 134℃
Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust

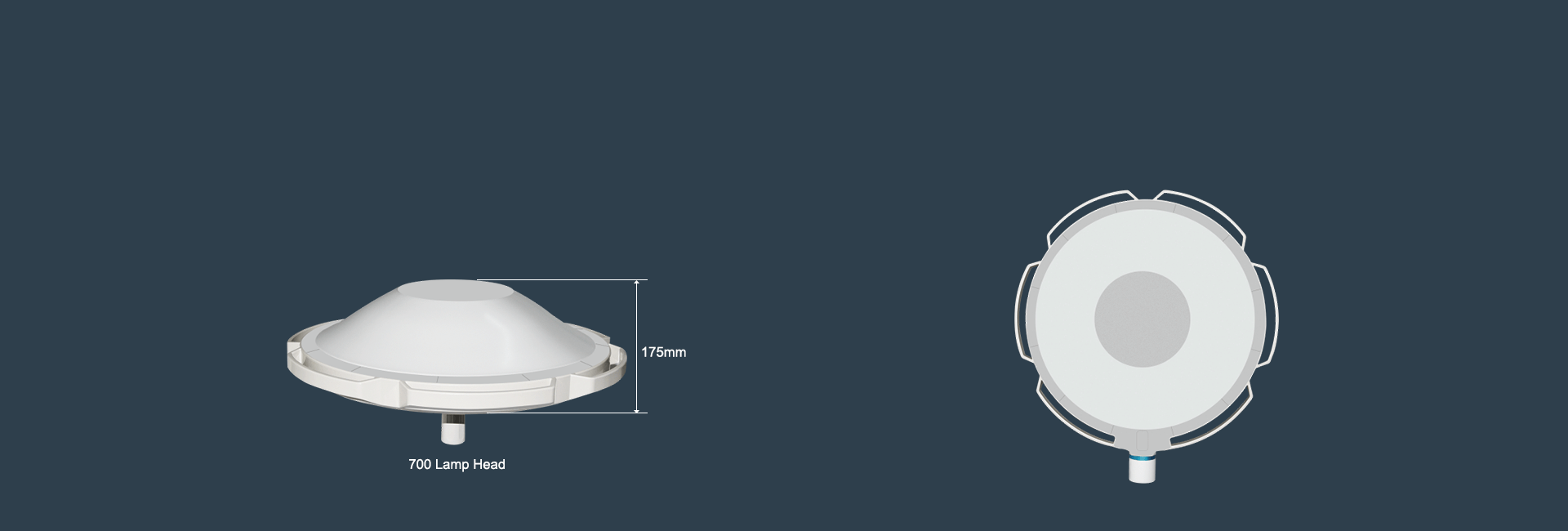

Streamline Metal Lamp Head

360 ° surround handle design, more convenient usage
Lamp head surface without screws, corrosion resistance, easy to clean, more suit for laminar flow

Product parameters
Brand	Mplent
Manufacturer	Hunan Mplent Optoelectronics Technology CO., Ltd
Type	ZW-700E II
Supply voltage	AC110-240V 50/60HZ
Spot diameter	120-260mm（adjustable）
ILLumination	40000-160000Lx
Color temperature	4000-5000k（adjustable）
Color rendering index	≥90
ILLumination depth	≥600mm
Brightness Adjustment	1% - 100% (stepless dimming)
LED Lifespan	≥50000h
LED Quantity	16
LED lamp brand	OSRAM
Maximum LED Power	Rated 3W, actual use ≤ 1W
