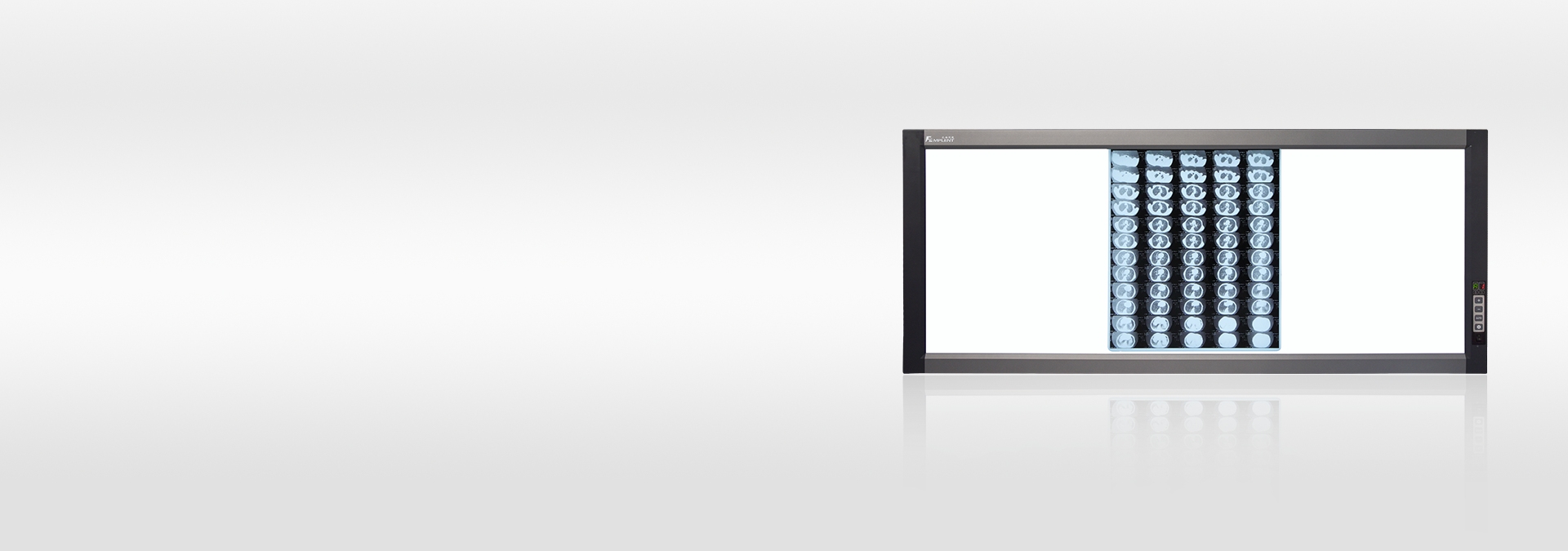

ZG-3D

ZG-3D

High efficiency and durable LED light source, the average service life is more than 50000h
Slim appearance, aviation aluminium profile + ABS structure design, which is good for heat dissipation
Side-light+ light guidance plate technology, optimize the structure and the whole thickness is only 25mm
PWM digital high frequency dimming technology, dimming color temperature more stable, natural soft light does not hurt the eyes
Film sensor function, it will light up while inserting film, each panel could be controlled individually, it also has the functions of brightness memory, delay shutdown

Efficient and durable LED light source

Efficient and durable LED light source

Using imported LED chip, gold wire welding process, pure copper bracket, independent packaging LED light source technology
Green environmental protection, low carbon and energy saving, with a service life of more than 50000h(equivalent to 6 years of continuous lighting)
Digital high-frequency dimming

Digital high-frequency dimming

Natural soft light, no glare and eye protection
Digital high-frequency dimming, more linear brightness adjustment, more accurate dimming, more stable color temperature

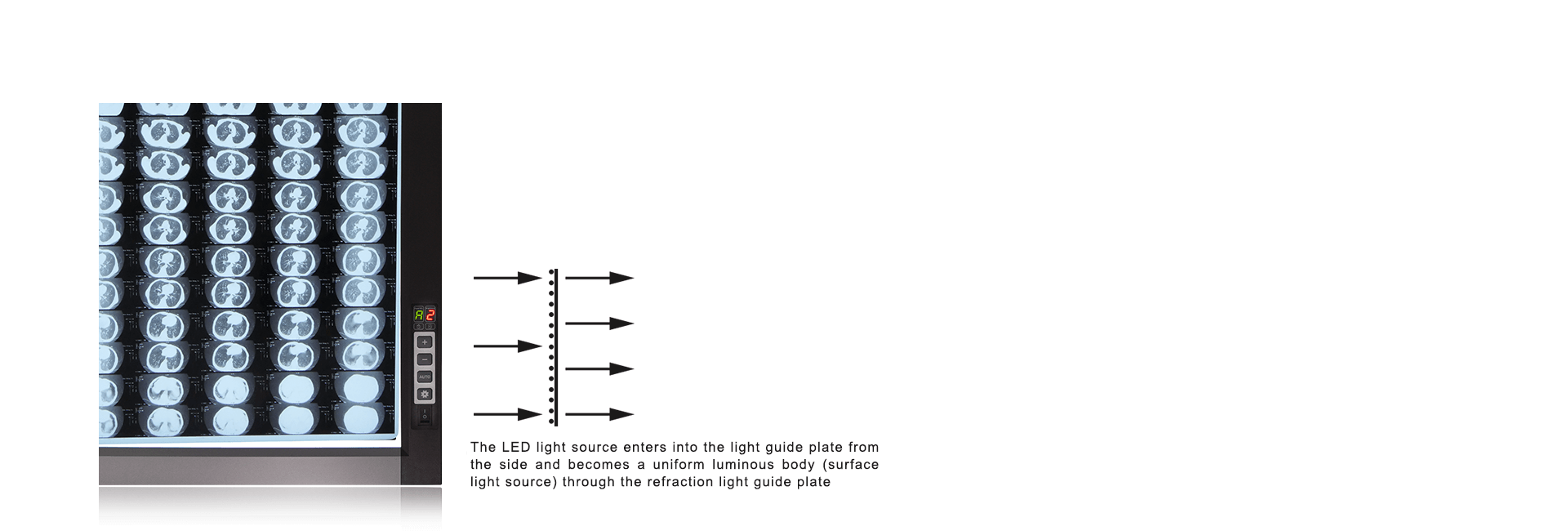

High definition film reading experience

High definition film reading experience

Imported acrylic diffusion plate, high transmittance, durable, no deformation, no discoloration
High contrast, high color rendering index and comfortable color temperature make film reading clearer
4mm acrylic light guide plate has the light transmittance of glass and uniform diffuse scattering properties

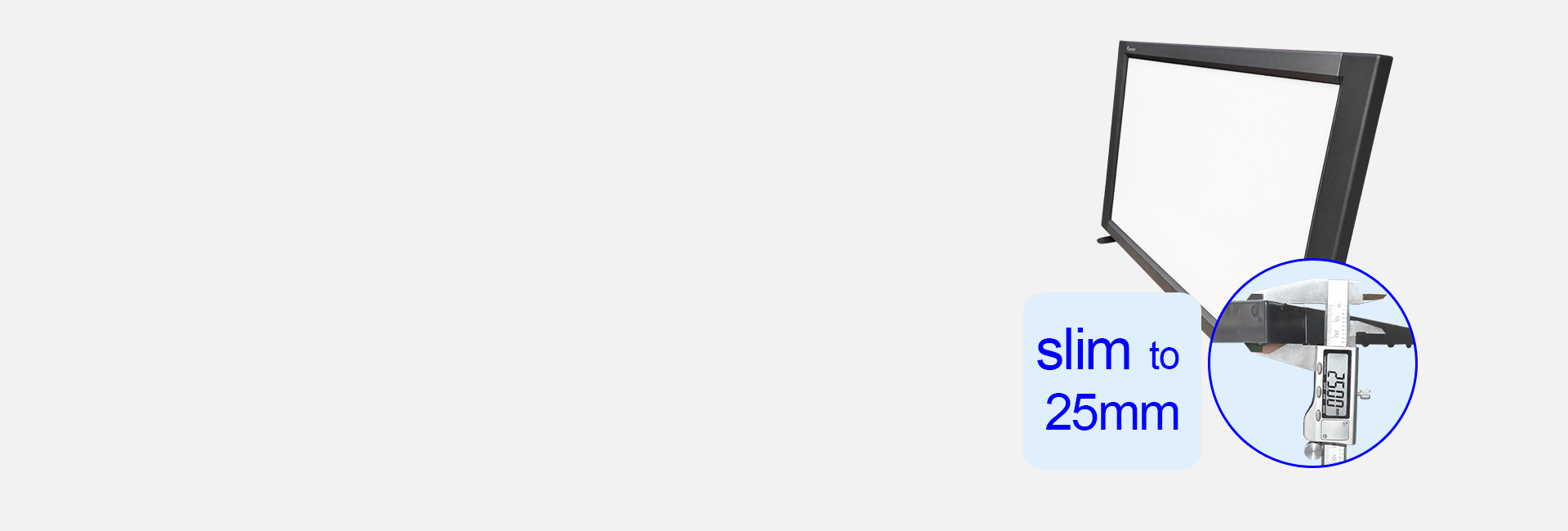

Slim design

Slim design

ultra slim body, the thickness of the whole machine is only 25mm, lightweight and small volume

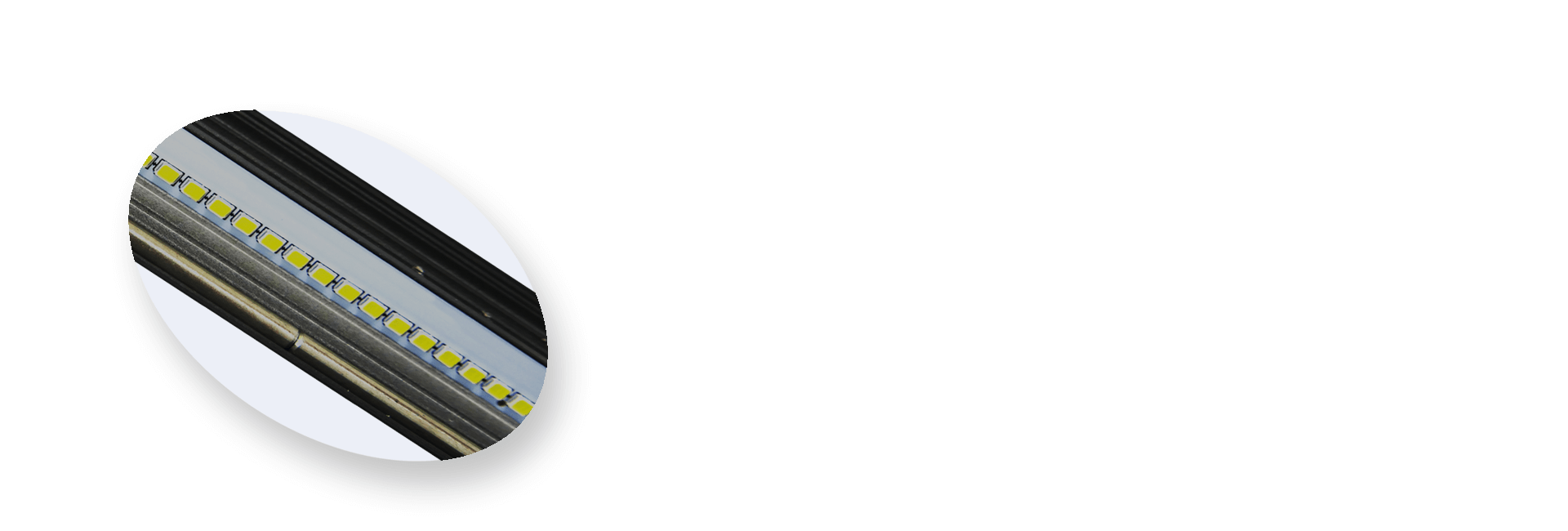

Excellent side light source arrangement

Excellent side light source arrangement

The brightness uniformity of the observation screen is more than 90%
High density light source arrangement, brightness up to 4000cd / ㎡, the brightnesscan be customized

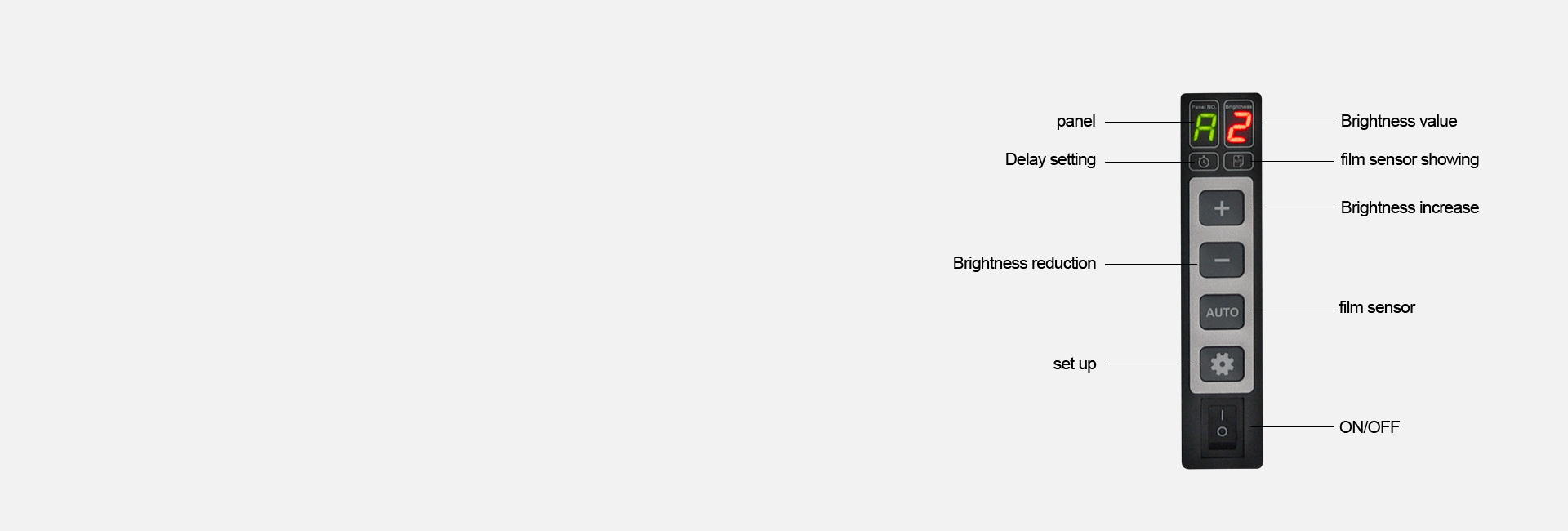

Convenient and quick operation button

Convenient and quick operation button

2-digit digital display, 9-level brightness adjustment, simple control, flexible and practical
It can be easily realized the functions of seperated control of each panel, brightness memory, delay shutdown and the function of automatically lighting up by film inserting

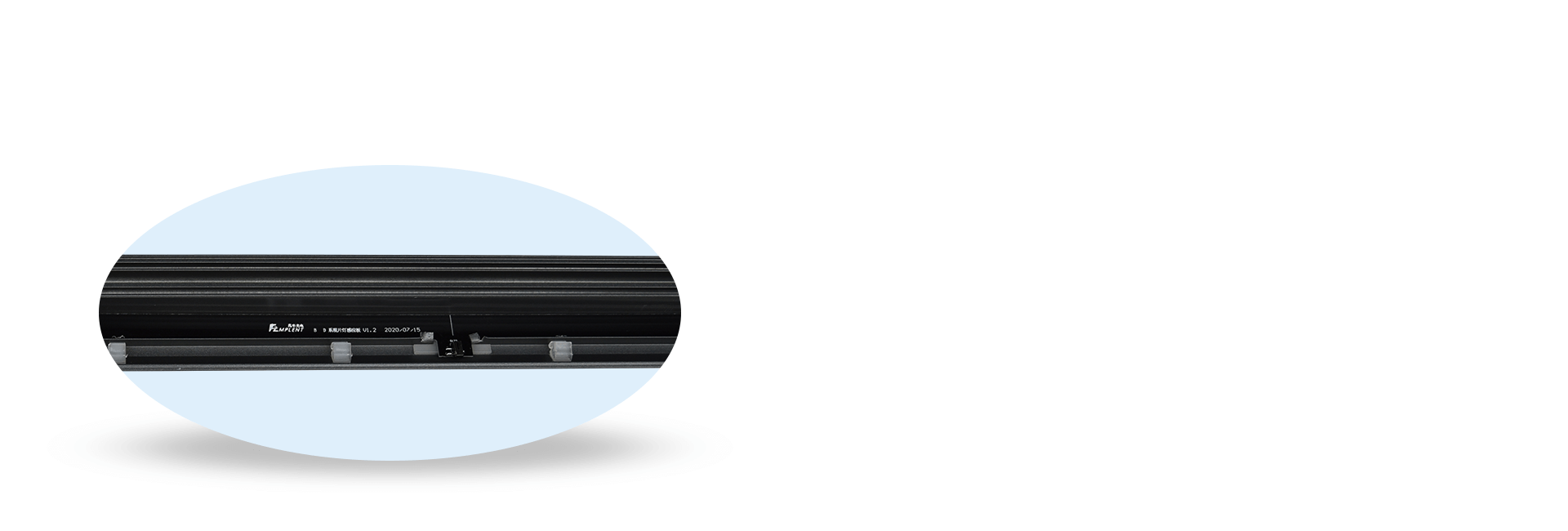

Simple and easy use film clip device

Simple and easy use film clip device

Silicone clip device, easy to insert and take off film
Stable drive power supply

Stable drive power supply

The LED X-Ray film viewer`s power chipset is using a new type of semiconductor material potassium nitride
Potassium nitride has super thermal conductivity, high temperature resistance and acid and alkali resistance
It can realize the small size and light weight of power supply, and has more advantages in charging power conversion

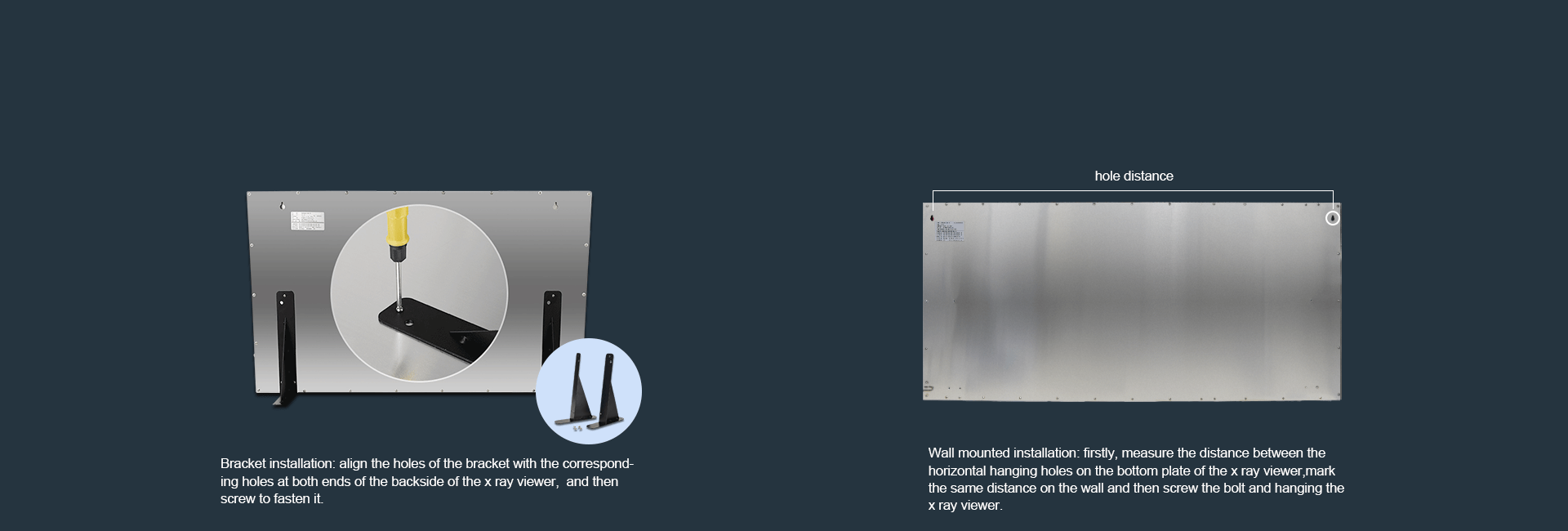

Installation Method

Installation Method

The installation method is simple, is has bracket installation and wall installation
Product parameters
Brand Mplent
Manufacturer Hunan Mplent Optoelectronics Technology CO., Ltd
Type ZG-3D
external size(mm) 1170*500*25
viewing size(mm) 1080*420
Maximum size of readable film 17*14 inches(355.6*431.8mm)
Max Power Consumption 90W
Light source ; Color temperature; Lifespan Super brightness SMD led144 pieces / panel; 8000K color temperature; light source lifespan is over 50000h
Power supply; Voltage;Frequency Global voltage adaptive built in power supply;AC90V~240V;50/60Hz
Brightness adjustment range 0~4000cd/㎡(customizable brightness)
film clip device Silicone clip device
Installation method wall intallation and barcket installation
Applicable film General analog X-ray film, high-density digital X-ray film, Mammography breast film
Application function seperated control of each panel , film sensor, lighting up by inserting film,brightness memory, delay shutdown
Brightness uniformity of observation screen ≥90%
Environmental conditions for use It is suggested that the environmental illumination of film reading room should not be greater than 100lx
