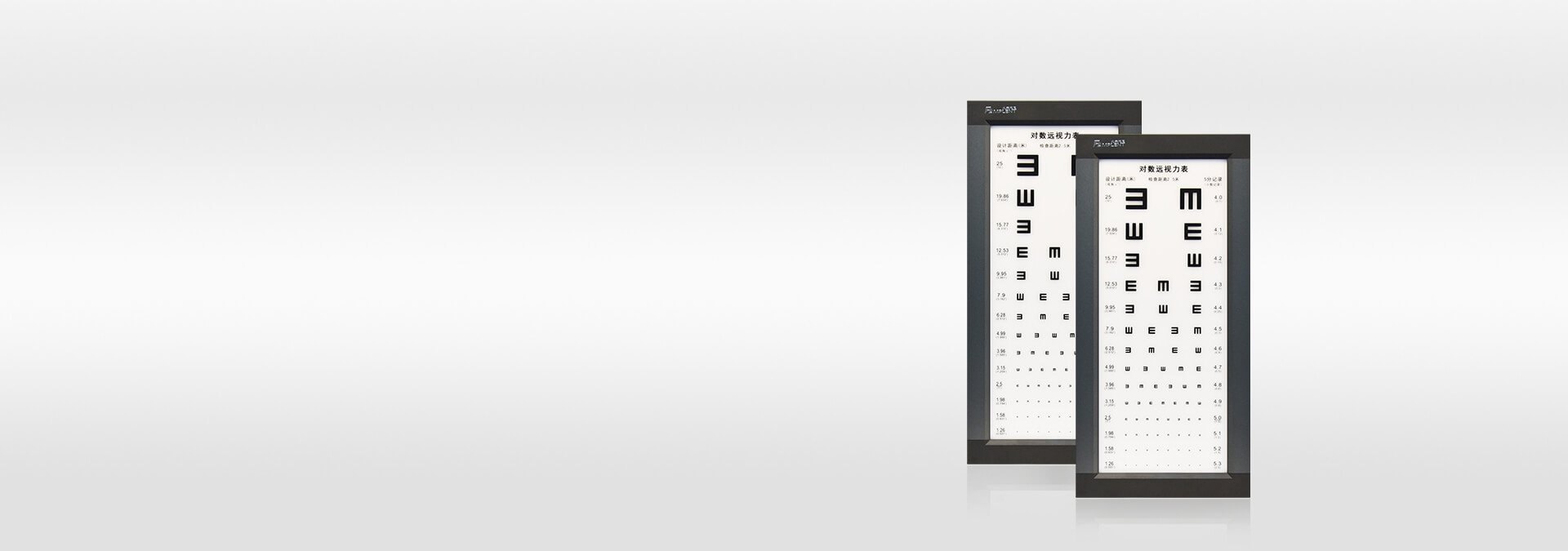

ZS-2500E

Home Products Eye test chart LED eye test chart ZS-2500E

Thickened aluminum alloy frame is not easy to bend, beautiful and durable
UV screen printing UV curing technology, clear and bright, uniform light, durable wear, easy to clean
High quality profile, solid and thin, Mitsubishi diffusion plate and light guide plate do not yellowing, do not fade
The LED light source is energy-saving and environment-friendly, with an average service life of more than 500000 hours

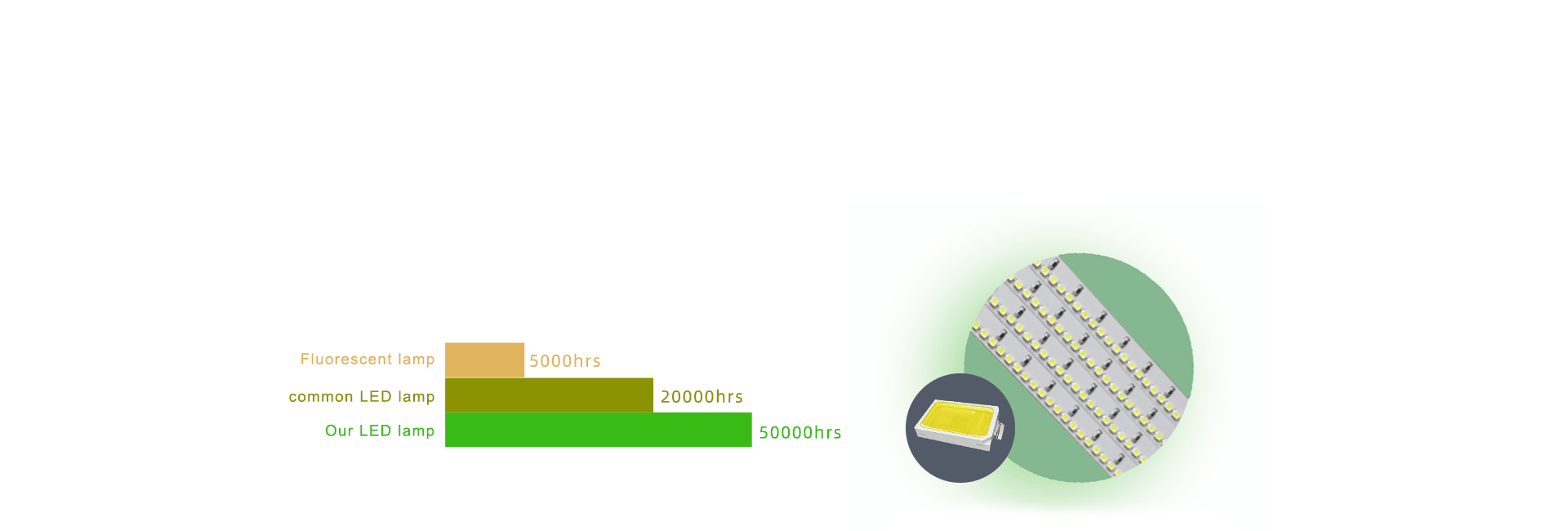

Energy saving and durable LED cold light source

96pcs LED are evenly arranged, with uniform illumination, high contrast, soft light and eye protection
Using imported LED chip, the service life is more than 50000h 【equivalent to 6 years of continuous lighting】

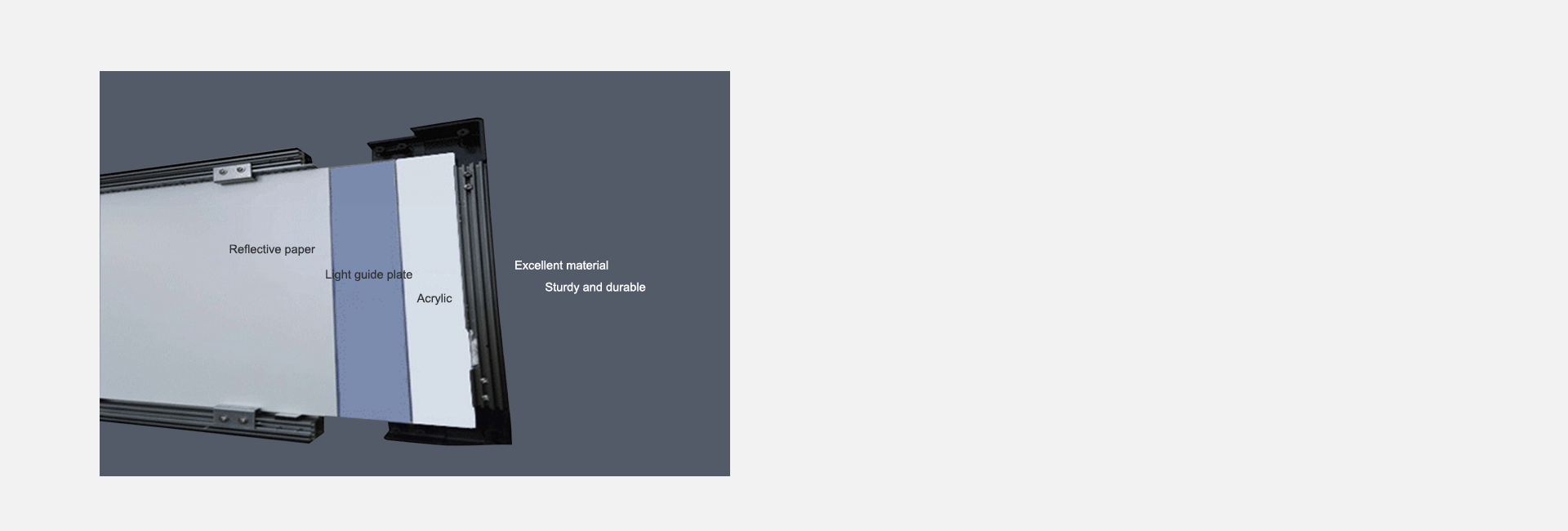

Thickened aluminum alloy frame

The outer frame is made of high quality aluminum alloy. The thickened frame is not easy to bend and durable

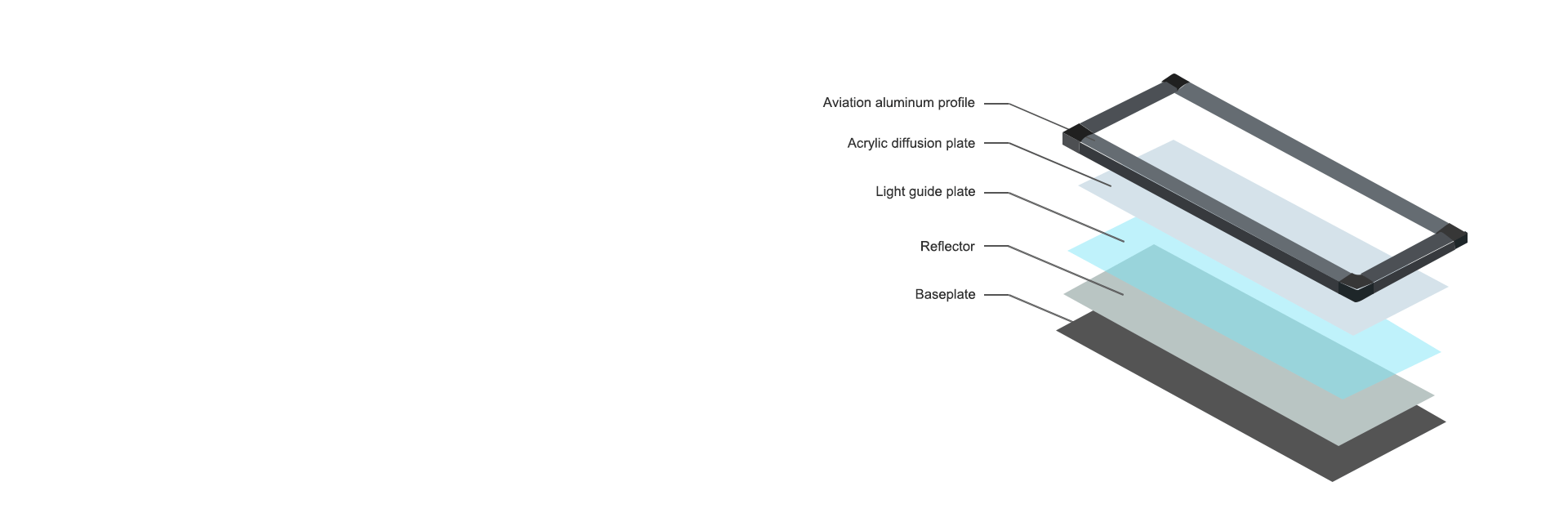

optical acrylic panel

High reflective pet further improves light efficiency and brings you comfortable experience
The light guidance plate with high transmittance and micro structure has no yellowing and fading, and the light efficiency reaches more than 90%

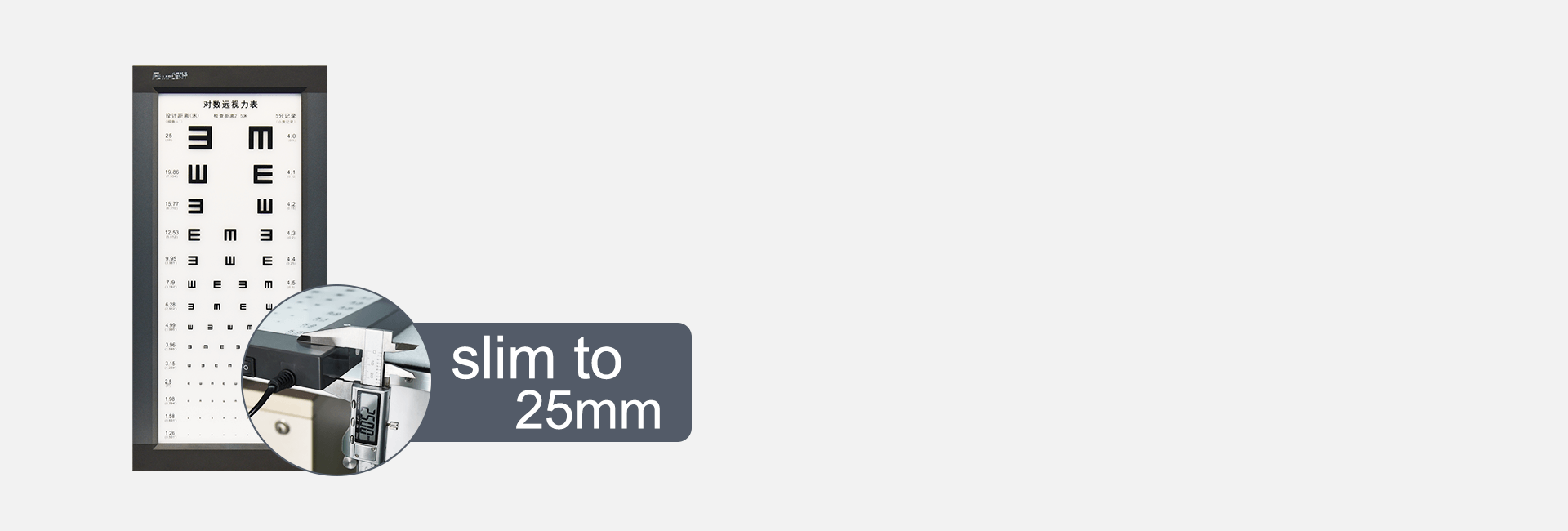

Slim design

Clear, bright and durable

Using the Screen printing UV curing technology, clear and bright, uniform brightness, durable wear, easy to clean

Product parameters
Brand	Mplent
Manufacturer	Hunan Mplent Optoelectronics Technology CO., Ltd
Type	Multi function visual acuity chart
Model number	ZS-2500E
Size	61930425mm
Light source	SMD2835 LED96
Colour temperature；Life span	6000K color temperature; 50000 hours
Power Supply；Voltage；Frequency	Global voltage adaptive external power supply；AC90V-240V；50/60Hz
Brightness of observation screen	Ultra high brightness500cd/㎡
Brightness uniformity of observation screen	≥90%
Installation method	Wall mounted
