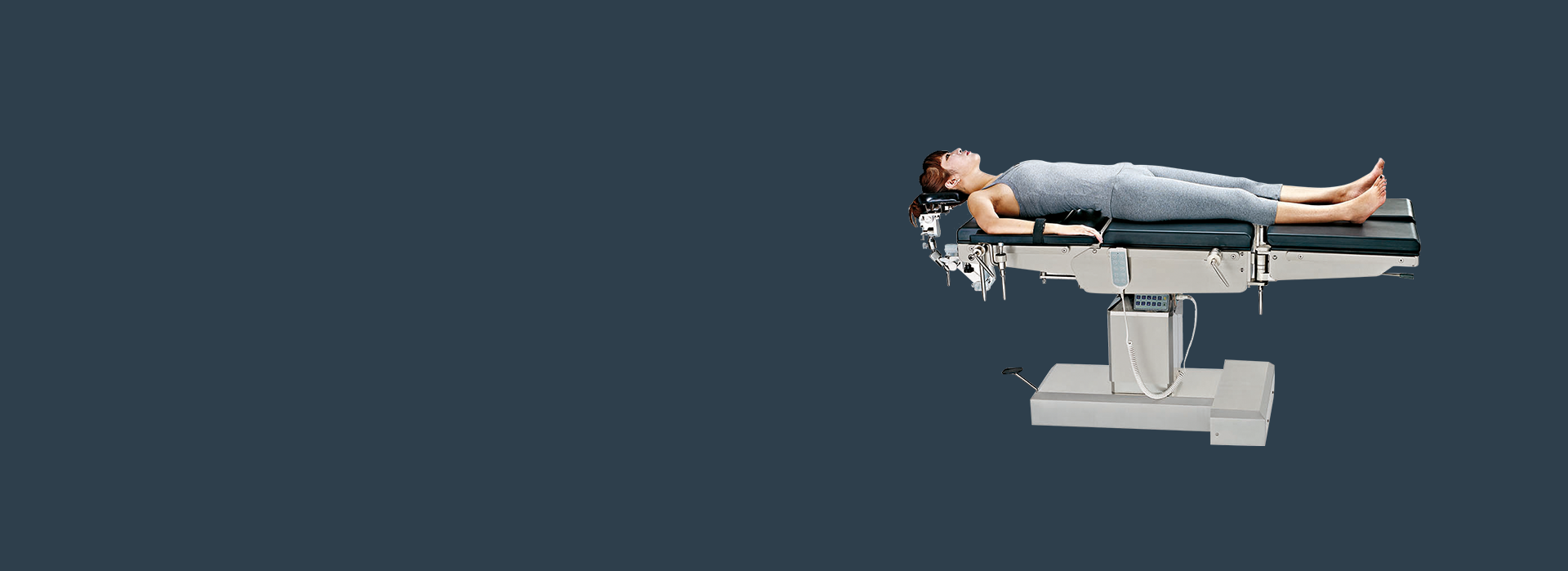

XTD-1A Multifunctional electric operating table

XTD-1A Multifunctional electric operating table

The operating table is suitable for comprehensive operation of all position of the human body in the hospital operating room
Could meet the requirements of image observation and diagnosis in the process of surgery by applying modern technology and combining with the humanized design concept

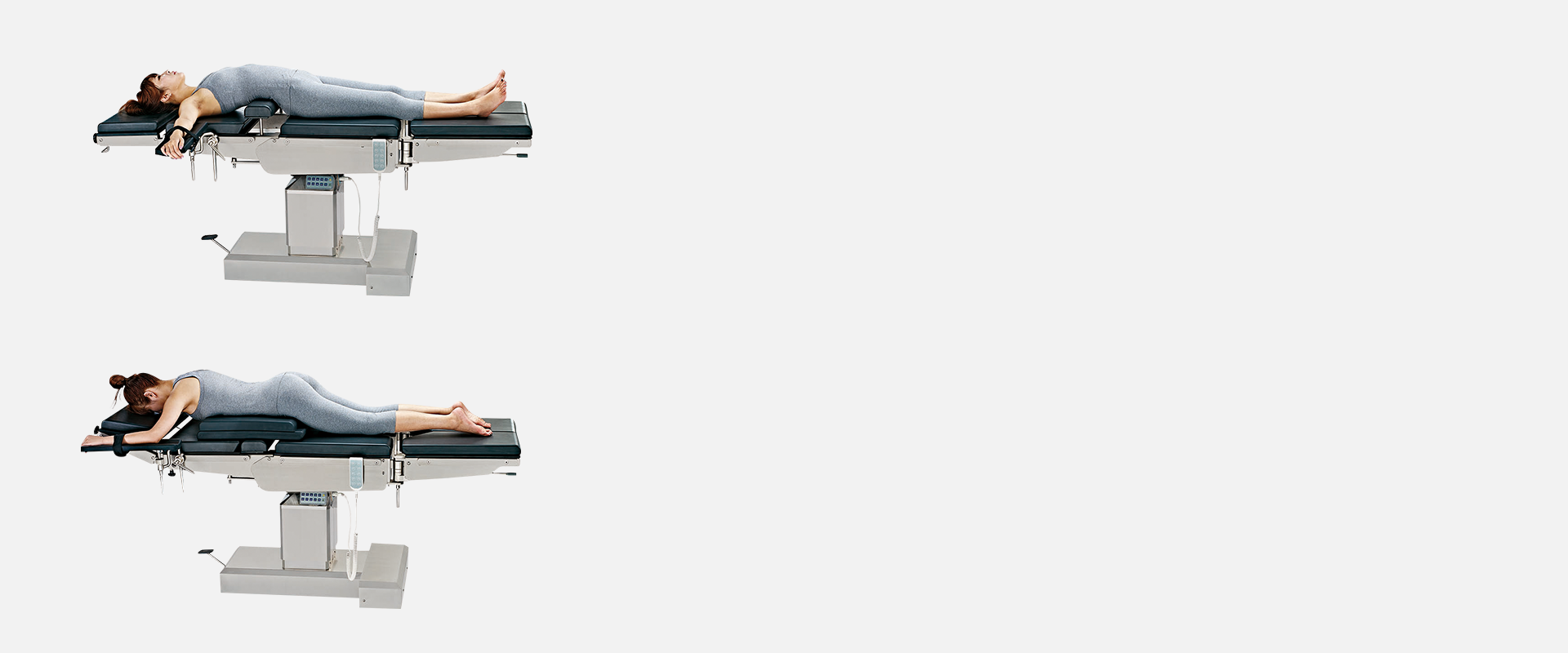

Function introdution

Function introdution

Operating table is with built-in waist bridge, and apply mechanical electric drive mode, has excellent mobility and steering, mechanical support fixed
Fully charged power supply can provide about 60-80 times complete operation cycles, it could use about one week depending on usage time per day
The operating table is made of 304 stainless steel material, no rust in use, accessories are not easy to damage, the bed plate is made of X-ray polymer material, no shadow
The operating table is applicable to thoracic surgery, spinal surgery, cerebral neurosurgery, nephrectomy, orthopedic lower limb traction (with orthopedic traction frame) and other operations

product parameter

Table height adjustment range: 750mm--1000mm(except mattress)

Height adjustment range ≥250mm;Width of operating bed ≥555mm;The length of the operating bed is ≥2150mm

Fore and after tilt: forward tilt ≥25° and backward tilt ≥25°

Left-right tilt: left tilt≥20° right tilt ≥20°

Head plate (up/down) folding: upper folding ≥30°lower folding ≥90 °

Back plate (up/down) folding: upper folding ≥70° lower folding ≥15°

Front and back translation of the table: ≥350mm

Leg plate down fold: ≥90 °

Waist adjustment range :≥110mm

Maximum weight :≥275 kg
