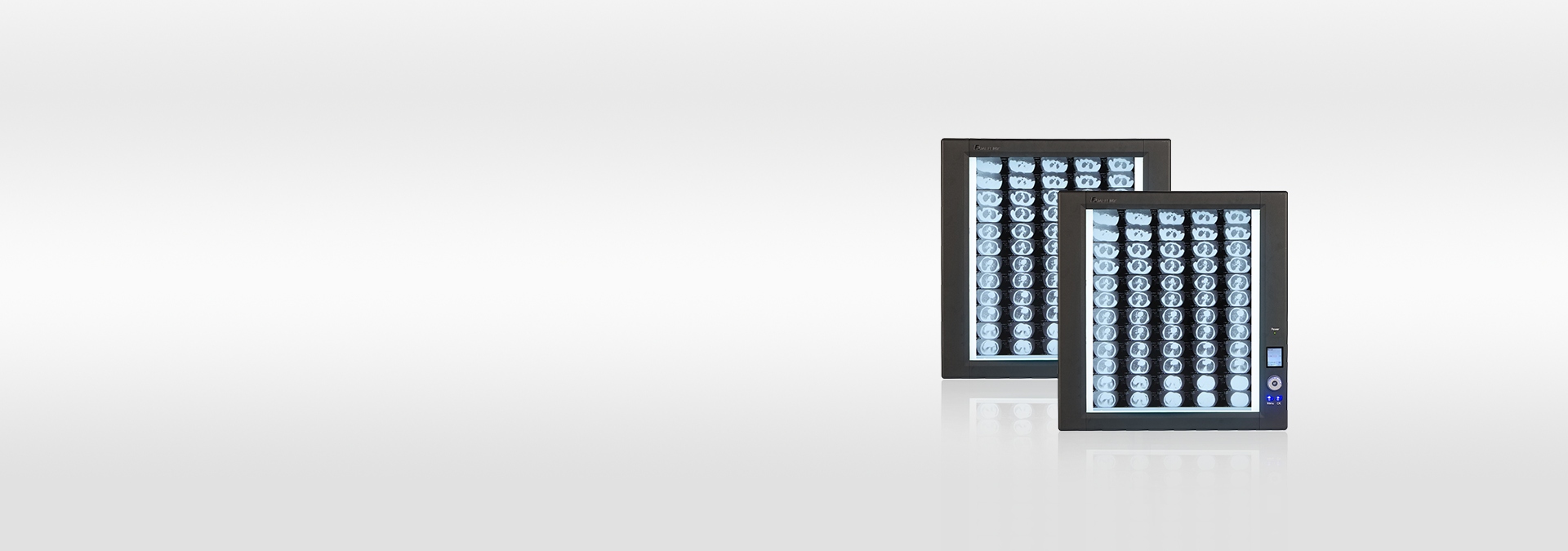

ZG-1

ZG-1

Efficient LED light source technology, with an average lifespan of more than 50000 hours
Full digital control mode, more flexible dimming, more stable performance, easier operation
Acrylic diffusion plate and light guide plate, high transmittance, durable, no deformation, no discoloration
PWM digital high frequency dimming technology, 0-100% stepless dimming, color temperature is more stable
Film sensor function, it will light up while inserting film, each panel could be controlled individually, it also has the functions of s brightness memory, delay shutdown

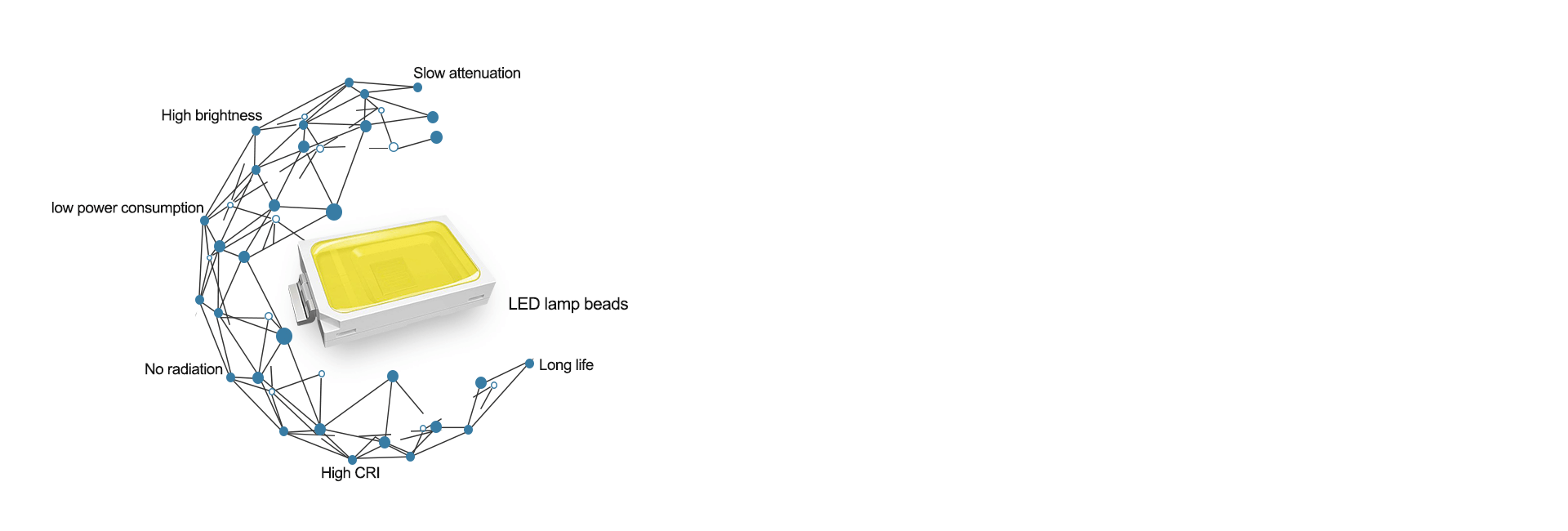

Efficient and durable LED light source

Efficient and durable LED light source

Using OSRAM LED light source, gold wire welding process, pure copper bracket, independent packaging LED light source technology
Low energy consumption, green environmental protection, low carbon and energy saving, with a service life of more than 50000h(equivalent to 6 years of continuous lighting)

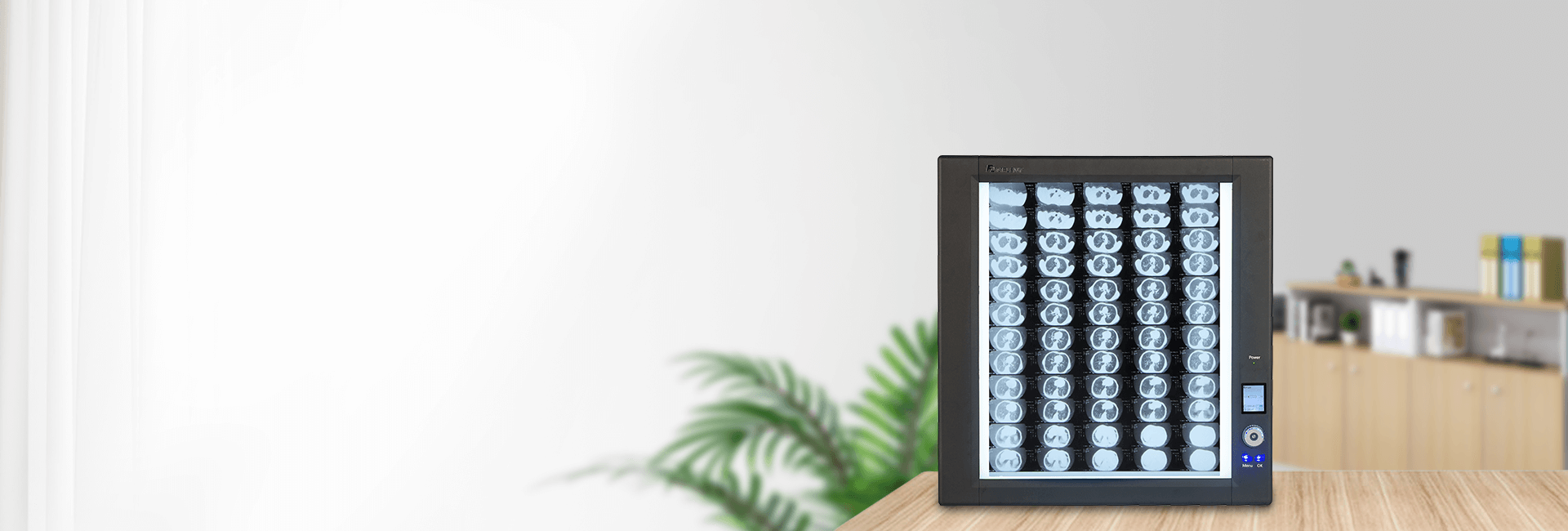

PWM digital high frequency dimming

PWM digital high frequency dimming

PWM control constant current chip, more accurate control of current output, to the color temperature is almost no change
PWM digital high frequency dimming technology, illumination is 100 level adjustable, and the brightness adjustment is more linear

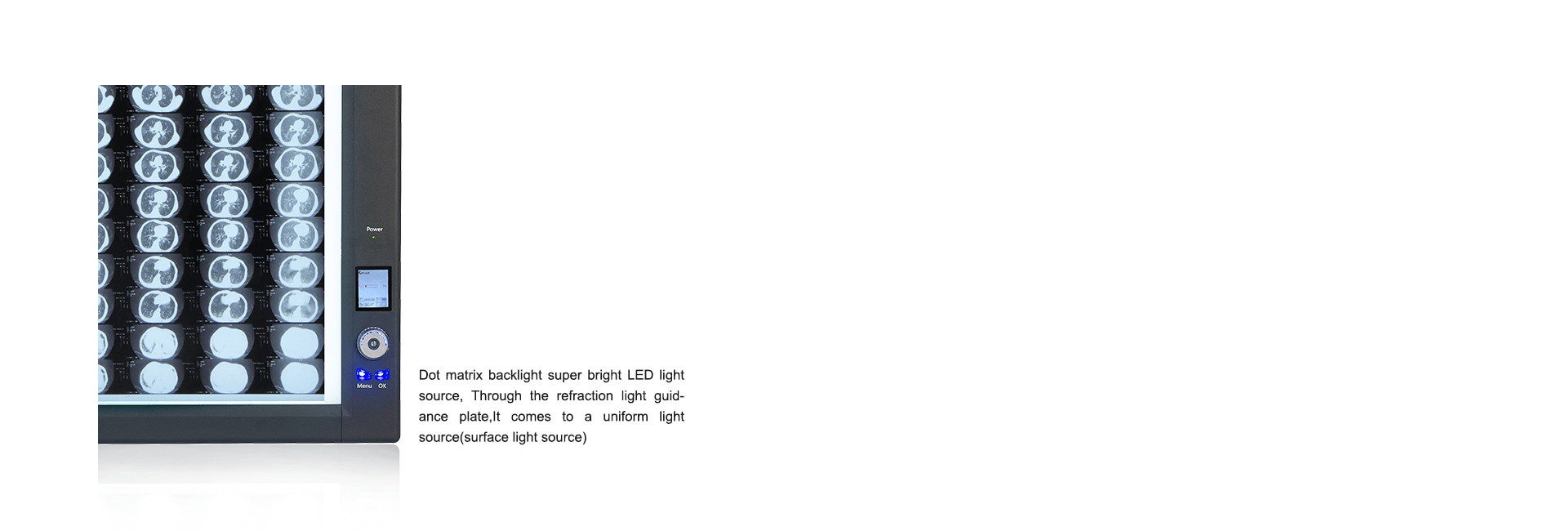

High definition film reading experience

High definition film reading experience

Imported acrylic diffusion plate, high transmittance, durable and no discoloration
Acrylic light guidance plate has the light transmittance of glass and uniform man scattering properties
High contrast, high color rendering index and comfortable color temperature, which make film reading clearer
Constant current drive

Constant current drive

The working current of the LED x ray viewer is always in a stable status
eliminate the stroboscopic phenomenon, greatly extending the service life of film viewer

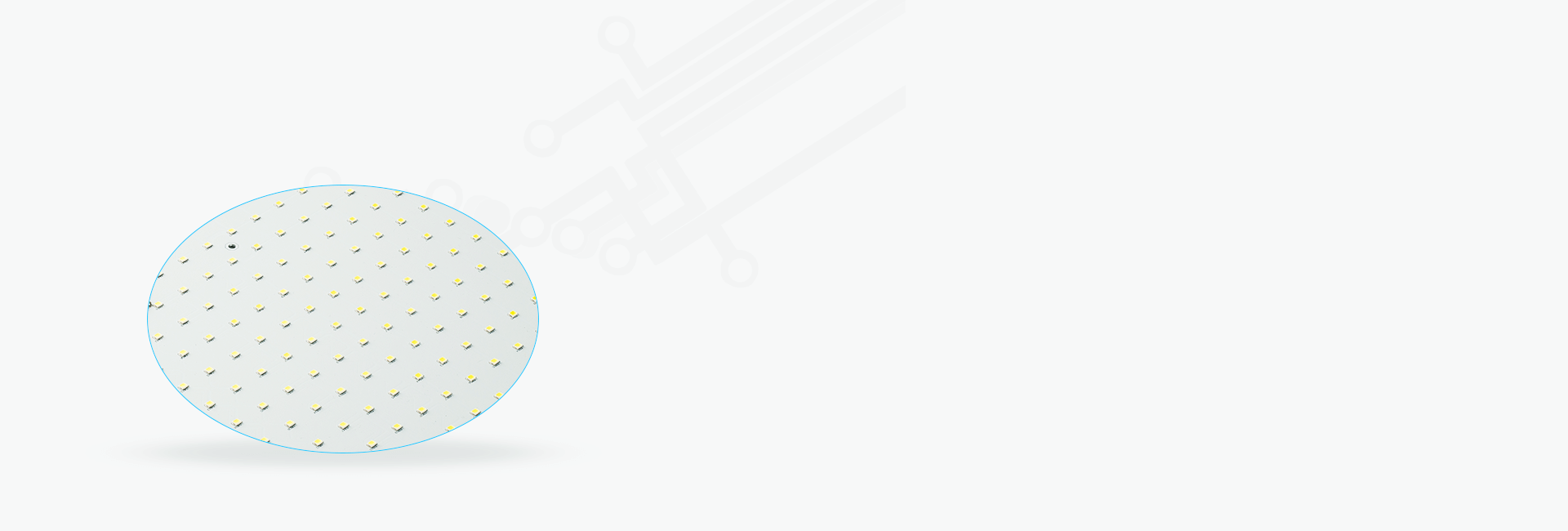

Excellent light source arrangement

Excellent light source arrangement

The brightness uniformity of the observation screen is more than 90%
High density LED light source arrangement, brightness is up to 6000cd / ㎡

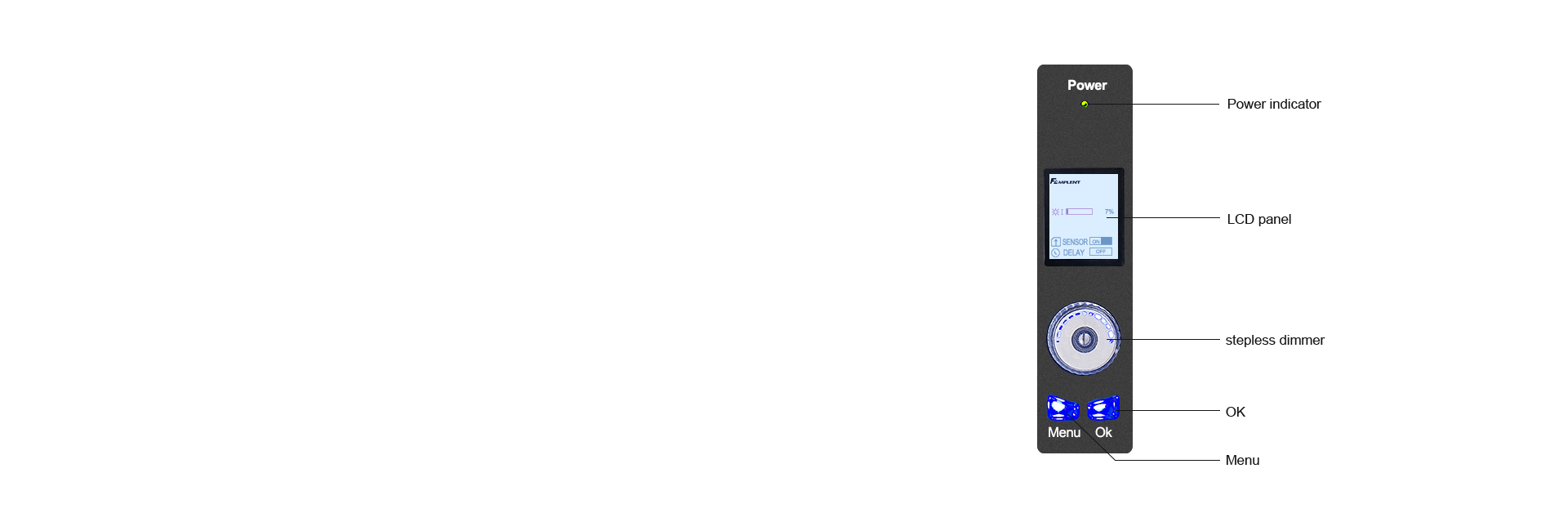

Convenient and quick operation button

Convenient and quick operation button

1.77 inch color LCD display, 100 stepless dimming, simple control, flexible and practical
It can be easily realized the functions of seperated control of each panel, brightness memory, delay shutdown and the function of automatically lighting up by film inserting

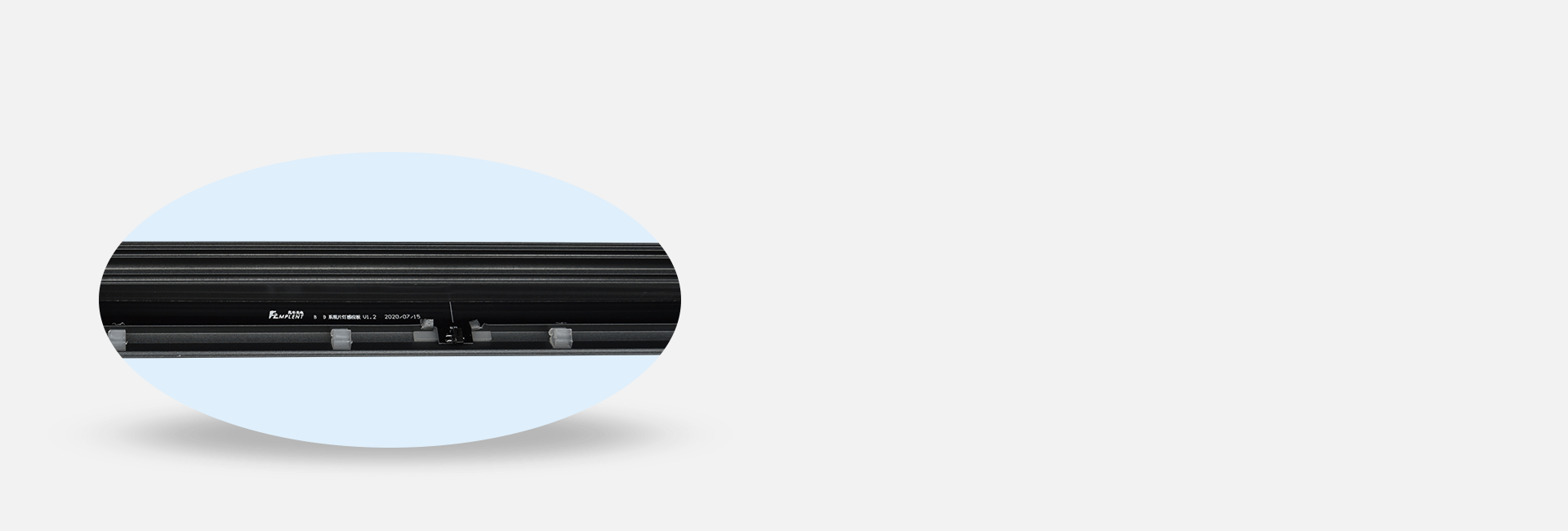

Simple and easy use film clip device

Simple and easy use film clip device

Silicone clip device, easy to insert and take off film

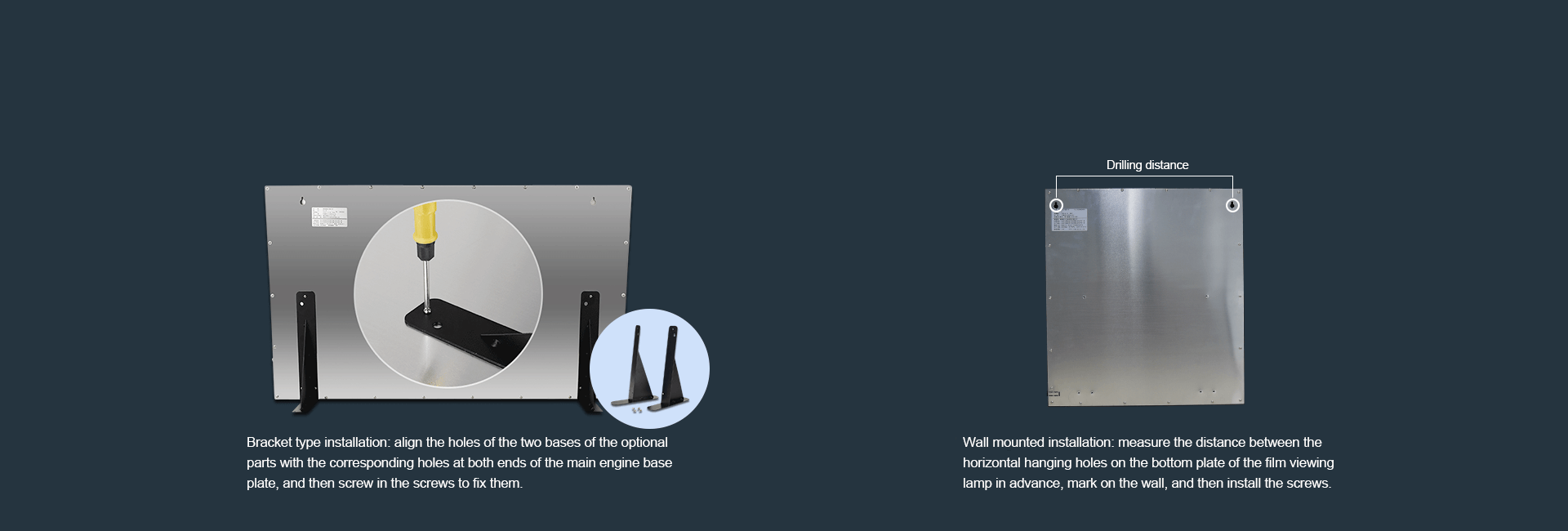

Installation Method

Installation Method

The installation method is simple, is has bracket installation and wall installation
Product parameters
Brand Mplent
Manufacturer Hunan Mplent Optoelectronics Technology CO., Ltd
Type ZG-1
Overall dimension(mm) 480*502*38
Film size(mm) 360*420
Maximum size of readable film 17*14 inches(355.6*431.8mm)
Max Power Consumption 30W
Light source ; Color temperature; Lifespan Super brightness SMD led780 pieces / pair; 8000K color temperature; light source life is over 50000h
Power supply; Voltage;Frequency Global voltage adaptive built in power supply;AC90V~240V;50/60Hz
Brightness adjustment range of observation screen 0~6000cd/㎡
film clip device Silicone clip device
Installation method wall intallation and barcket installation
Applicable film General analog X-ray film, high-density digital X-ray film, Mammography breast film
Application function seperated control of each panel , film sensor, lighting up by inserting film,brightness memory, delay shutdown
Brightness uniformity of observation screen ≥90%
Environmental conditions for use It is suggested that the environmental illumination of film reading room should not be greater than 100lx
